Toyota Corolla sed (jpp) ADE150 SWITCH & RELAY & COMPUTER

ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009

Engine 1ADFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

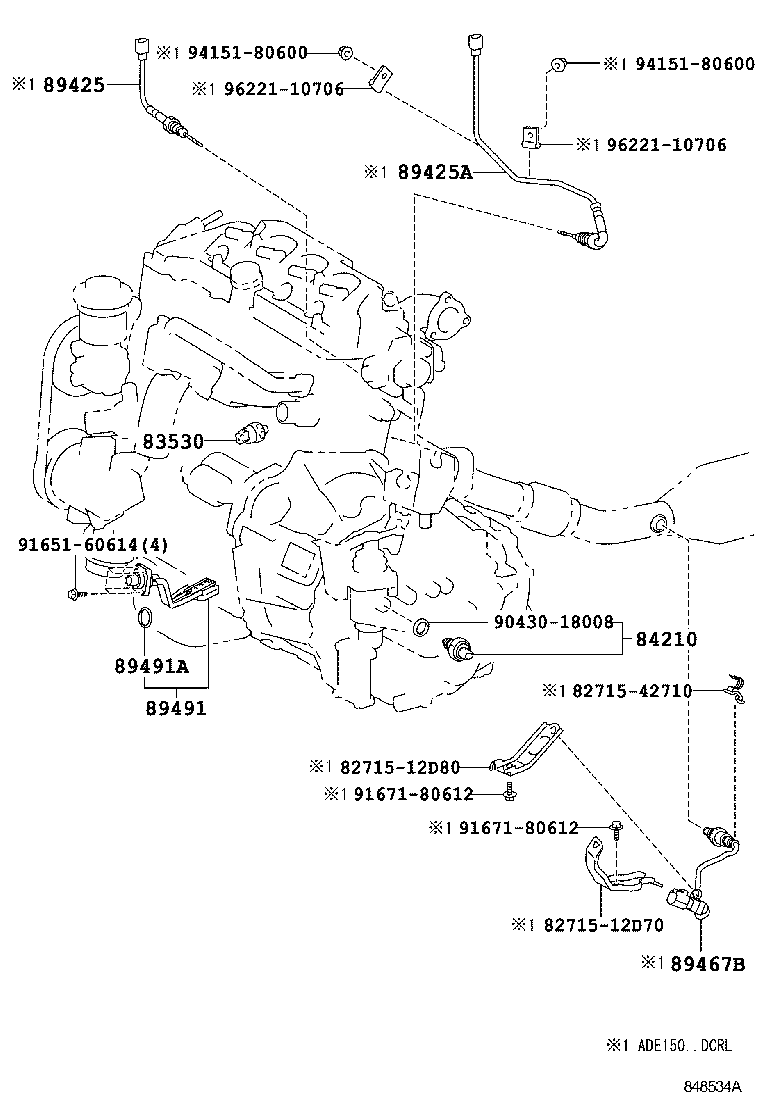

ILLUST NO. 1 OF 7(0611-0901)ADE150

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28010	ADE150;NDE150..5F,5FS DENSO	11/2006 - 01/2009	1
83530-60010	ADE150;NDE150..5F,5FS YAZAKI	11/2006 - 01/2009	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	ADE150;NDE150,ZRE151..5FS	11/2006 - 01/2009	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-20120	ADE150	11/2006 - 01/2009	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010	ADE150	11/2006 - 01/2009	1
Common parts
82715-12D70
82715-12D80
82715-42710
90430-18008
91651-60614
91671-80612
94151-80600
96221-10706

ILLUST NO. 4 OF 7(0611- )RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-28010	1ADFTV..ADE150	11/2006 - 01/2009	1
28300D - RELAY, STARTER CUT
90987-02027	1ADFTV..ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
28371 - RELAY, IGNITION, NO.1
90987-02025	1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150	11/2006 - 12/2006	1
90987-02030	1ADFTV..ADE150	01/2007 - 01/2009	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-46010	ADE150	11/2006 - 01/2009	1
82210J - FUSIBLE LINK
90982-08296	ADE150 50A,TERM.:FEMALE,RED	11/2006 - 01/2009	1
90982-08294	ADE150 40A,TERM.:FEMALE,GRN	11/2006 - 01/2009	1
90982-08295	ADE150 30A,TERM.:FEMALE,PNK	11/2006 - 01/2009	1
82210J - FUSIBLE LINK
90982-08296	ADE150 50A,TERM.:FEMALE,RED	11/2006 - 01/2009	1
90982-08294	ADE150 40A,TERM.:FEMALE,GRN	11/2006 - 01/2009	1
90982-08295	ADE150 30A,TERM.:FEMALE,PNK	11/2006 - 01/2009	1
82241J - PIN, SHORT
82241-42010	ADE150 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER	11/2006 - 01/2009	1
82241-42010	ADE150 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)	11/2006 - 01/2009	1
82241-42010	ADE150 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)&STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
82241-42010	ADE150 AUTO AIR CONDITIONER(SINGLE MODE)&AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM)& 6SPEAKER	11/2006 - 01/2009	1
82241-42010	ADE150 INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)&AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER	11/2006 - 01/2009	1
82241-42010	ADE150 AUTO AIR CONDITIONER(SINGLE MODE)	11/2006 - 01/2009	1
82600F - FUSE, FUSE BLOCK
90982-09021	ADE150 10A,MINI FUSE,RED	11/2006 - 01/2009	1
90982-09024	ADE150 25A,MINI FUSE	11/2006 - 01/2009	1
90982-09023	ADE150 20A,MINI FUSE,YELLOW	11/2006 - 01/2009	1
90982-09022	ADE150 15A,MINI FUSE,BLUE	11/2006 - 01/2009	1
90982-09020	ADE150 7.5A,MINI FUSE,BROWN	11/2006 - 01/2009	1
90982-09025	ADE150 30A,MINI FUSE,GRN	11/2006 - 01/2009	1
90982-09022	ADE150 15A,MINI FUSE,BLUE	11/2006 - 01/2009	1
90982-09024	ADE150 25A,MINI FUSE	11/2006 - 01/2009	1
90982-09023	ADE150 20A,MINI FUSE,YELLOW	11/2006 - 01/2009	1
90982-09021	ADE150 10A,MINI FUSE,RED	11/2006 - 01/2009	1
90982-09020	ADE150 7.5A,MINI FUSE,BROWN	11/2006 - 01/2009	1
90982-09025	ADE150 30A,MINI FUSE,GRN	11/2006 - 01/2009	1
82600F - FUSE, FUSE BLOCK
90982-09021	ADE150 10A,MINI FUSE,RED	11/2006 - 01/2009	1
90982-09024	ADE150 25A,MINI FUSE	11/2006 - 01/2009	1
90982-09023	ADE150 20A,MINI FUSE,YELLOW	11/2006 - 01/2009	1
90982-09022	ADE150 15A,MINI FUSE,BLUE	11/2006 - 01/2009	1
90982-09020	ADE150 7.5A,MINI FUSE,BROWN	11/2006 - 01/2009	1
90982-09025	ADE150 30A,MINI FUSE,GRN	11/2006 - 01/2009	1
90982-09022	ADE150 15A,MINI FUSE,BLUE	11/2006 - 01/2009	1
90982-09024	ADE150 25A,MINI FUSE	11/2006 - 01/2009	1
90982-09023	ADE150 20A,MINI FUSE,YELLOW	11/2006 - 01/2009	1
90982-09021	ADE150 10A,MINI FUSE,RED	11/2006 - 01/2009	1
90982-09020	ADE150 7.5A,MINI FUSE,BROWN	11/2006 - 01/2009	1
90982-09025	ADE150 30A,MINI FUSE,GRN	11/2006 - 01/2009	1
82660B - BLOCK ASSY, RELAY
82755-12010	ADE150;ZRE151..5FS;NDE150..5F,5FS;ZRE151,ZZE150..RHD..HTWC;ZRE151,ZZE150..LHD..5F..N	11/2006 - 01/2009	1
82660C - BLOCK ASSY, RELAY
82755-12020	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
82673A - BRACKET, JUNCTION BLOCK
82673-12200	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
82673B - BRACKET, JUNCTION BLOCK
82673-12210	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
82673C - BRACKET, JUNCTION BLOCK
82673-12230	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12B60	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
82730-12C20	ADE150,ZRE151,ZZE150..RHD..N..(DCR,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR)	11/2006 - 01/2009	1
82730-12C90	ADE150,ZRE151..RHD..N..(DCR,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
82730-12D00	ADE150,ZRE151..RHD..N..(DCR,HTWC) UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
82861 - BRACKET, COMPUTER INTEGRATION, NO.1
82861-12040	ADE150..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)	11/2006 - 01/2009	1
84340 - SWITCH ASSY, STOP LAMP
84340-19025	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	ADE150,ZZE150;NDE150,ZRE151..5F	11/2006 - 01/2009	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	ADE150,ZZE150;NDE150,ZRE151..5F	11/2006 - 01/2009	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	ADE150	11/2006 - 01/2009	1
85916D - RELAY, FOG LAMP
90987-02027	ADE150 FRONT FOG LAMP-WITH(FOG LAMP)	11/2006 - 01/2009	1
85916L - RELAY, REAR FOG LAMP
90987-02027	ADE150	11/2006 - 01/2009	1
85930G - RELAY, ACC
90987-02027	ADE150	11/2006 - 01/2009	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12160	ADE150 INTERMITTENT WIPER-AUTO(RAIN SENSOR)	11/2006 - 01/2009	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12230	ADE150..RHD	11/2006 - 01/2009	1
89650-12380	ADE150..RHD ROUGH ROAD AREA SPEC	11/2006 - 01/2009	1
Common parts
90119-06952
90159-60431
90159-70004
90179-06110
91631-B0618
91671-80616
93315-14012
94120-41000
94151-80600

ILLUST NO. 5 OF 7(0611- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-12070	ADE150	11/2006 - 01/2009	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12520	ADE150	11/2006 - 01/2009	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-34010	ADE150	11/2006 - 01/2009	1
85500 - LIGHTER ASSY, CIGARETTE
85500-20340	ADE150,NDE150,ZRE151,ZZE150	11/2006 - 01/2007	1
85500-12260	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	02/2007 - 01/2009	1
85500B - BULB, CIGARETTE LIGHTER
90981-11018	ADE150,NDE150,ZRE151,ZZE150 12V 1.2W W/O SOCKET	11/2006 - 02/2007	1
90010-01163	ADE150,ZZE150;NDE150,ZRE151..5F,5FS 12V 1.2W,W(CAP)	02/2007 - 01/2009	1
89611 - SWITCH, PUSH START
89611-52021	ADE150 STARTING SYSTEM-PUSH BUTTON	01/2008 - 01/2009	1
89611-52020	ADE150,ZRE151..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 12/2007	1
Linked diagrams
8302

ILLUST NO. 6 OF 7(0611-1004)

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
84052-71010	ADE150,ZZE150..N;ZRE151..(5F,5FS)..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-12611	ADE150,ZZE150;NDE150,ZRE151..5F,5FS LABEL=12611	08/2008 - 01/2009	1
84140-12610	ADE150,NDE150,ZRE151,ZZE150 LABEL=12610	11/2006 - 08/2008	1
84140-12620	ADE150,NDE150,ZRE151,ZZE150 FRONT FOG LAMP-WITH(FOG LAMP),LABEL=12620	11/2006 - 08/2008	1
84140-12651	ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=12651	08/2008 - 01/2009	1
84140-12661	ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH(FOG LAMP),LABEL=12661	08/2008 - 01/2009	1
84140-12660	ADE150,NDE150,ZRE151,ZZE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH(FOG LAMP),LABEL=12660	11/2006 - 08/2008	1
84140-12650	ADE150,NDE150,ZRE151,ZZE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=12650	11/2006 - 08/2008	1
84140-12621	ADE150,ZZE150;NDE150,ZRE151..5F,5FS FRONT FOG LAMP-WITH(FOG LAMP),LABEL=12621	08/2008 - 01/2009	1
84247A - SWITCH, STEERING PAD, LH
84247-12040	ADE150,ZZE150;NDE150,ZRE151..5F STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)	11/2006 - 01/2009	1
84250A - SWITCH ASSY, STEERING PAD
84250-12010	ADE150 STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)	11/2006 - 01/2009	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12100	ADE150	11/2006 - 01/2009	1
84306-12110	ADE150 STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)	11/2006 - 01/2009	1
84306-12110	ADE150 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)	11/2006 - 01/2009	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	ADE150,ZZE150..N;ZRE151..(5F,5FS)..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
84450-12200	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-12A20	ADE150,ZZE150;NDE150,ZRE151..5F,5FS LABEL=12A20	08/2008 - 01/2009	1
84652-33440	ADE150,NDE150,ZRE151,ZZE150..N INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=33440	11/2006 - 08/2008	1
84652-47031	ADE150,NDE150,ZRE151,ZZE150 LABEL=47031	11/2006 - 08/2008	1
84652-33441	ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=33441	08/2008 - 01/2009	1
Common parts
90159-50199
90159-50265
90168-40129
Linked diagrams
4501

ILLUST NO. 7 OF 7(0611- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-12730	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	11/2006 - 01/2009	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	ADE150	11/2006 - 01/2009	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	ADE150	11/2006 - 01/2009	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070	ADE150	11/2006 - 01/2009	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070	ADE150	11/2006 - 01/2009	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-52030	ADE150	11/2006 - 01/2009	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-52030	ADE150	11/2006 - 01/2009	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-52030	ADE150	11/2006 - 01/2009	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-52030	ADE150	11/2006 - 01/2009	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-12530	ADE150..RHD	11/2006 - 01/2009	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-12530	ADE150..RHD	11/2006 - 01/2009	1
84840G - SWITCH ASSY, BACK DOOR OPENER
84840-12050	ADE150;ZRE151..(5F,5FS)..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
Common parts
90159-40085
90164-40103
90166-70001
91671-80616
