Toyota Corolla sed (jpp) ADE150 LOCK CYLINDER SET

ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009

Engine 1ADFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0611-1004)RHD

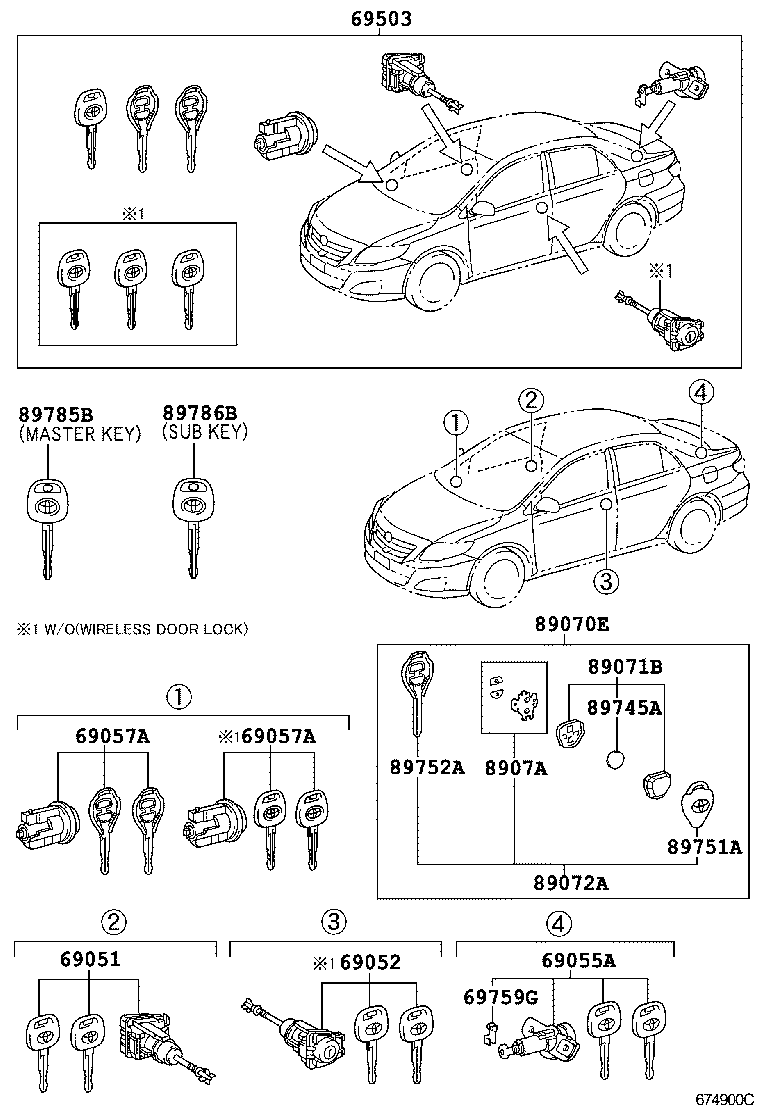

Click highlighted areas on diagram

W/O(SMART ENTRY)

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12680	ADE150..RHD STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69051-12650	ADE150..RHD	11/2006 - 01/2009	1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12A20	ADE150	11/2006 - 01/2009	1
69055-12A30	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-28370	ADE150	11/2006 - 01/2009	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-28370	ADE150	11/2006 - 01/2009	1
69503 - CYLINDER SET, LOCK
69005-12C20	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
69005-12C50	ADE150,ZRE151..RHD..N..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080	ADE150	11/2006 - 01/2009	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-28812	ADE150 STARTING SYSTEM-PUSH BUTTON	02/2008 - 01/2009	1
89070-28811	ADE150,NDE150,ZRE151,ZZE150	11/2006 - 01/2008	1
89070-28811	ADE150,ZRE151,ZZE150..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2008	1
89070-28812	ADE150	02/2008 - 01/2009	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28202	ADE150	02/2008 - 01/2009	2
89071-28201	ADE150,NDE150,ZRE151,ZZE150	11/2006 - 02/2008	2
89071-28202	ADE150 STARTING SYSTEM-PUSH BUTTON	02/2008 - 01/2009	2
89071-28201	ADE150,ZRE151,ZZE150..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 02/2008	2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28300	ADE150	11/2006 - 01/2009	1
89072-28300	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
8907A - SWITCH SET, TRANSMITTER
8907A-28010	ADE150	11/2006 - 01/2009	2
8907A-28010	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	2
89745A - BATTERY, TRANSMITTER
89745-48030	ADE150	11/2006 - 01/2009	2
89745-48030	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	2
89751A - COVER, TRANSMITTER HOUSING
89751-28070	ADE150	11/2006 - 01/2009	2
89751-28070	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	2
89752A - CASE, TRANSMITTER HOUSING
89752-28050	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
89752-28050	ADE150	11/2006 - 01/2009	1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170	ADE150 BLANK KEY	11/2006 - 01/2009	1
89786-60170	ADE150 BLANK KEY,STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1

(0611- )

Click highlighted areas on diagram

W(SMART ENTRY)

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12680	ADE150..RHD STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69051-12650	ADE150..RHD	11/2006 - 01/2009	1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12A20	ADE150	11/2006 - 01/2009	1
69055-12A30	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69503 - CYLINDER SET, LOCK
69005-12C20	NDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)	11/2006 - 01/2009	1
69005-12C50	ADE150,ZRE151..RHD..N..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69503A - KEY, BLANK
69515-52120	ADE150 MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	1
69503B - KEY, CUT
69515-52110	ADE150 MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	2
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080	ADE150	11/2006 - 01/2009	1
89745C - BATTERY, TRANSMITTER
89745-52030	ADE150 STARTING SYSTEM-PUSH BUTTON	11/2006 - 01/2009	2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-12041	ADE150,ZRE151..N STARTING SYSTEM-PUSH BUTTON	08/2007 - 01/2008	1
89904-12042	ADE150 STARTING SYSTEM-PUSH BUTTON	02/2008 - 01/2009	1
89904-12040	ADE150,ZRE151..N STARTING SYSTEM-PUSH BUTTON	11/2006 - 07/2007	1
