ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )RHD

Click highlighted areas on diagram

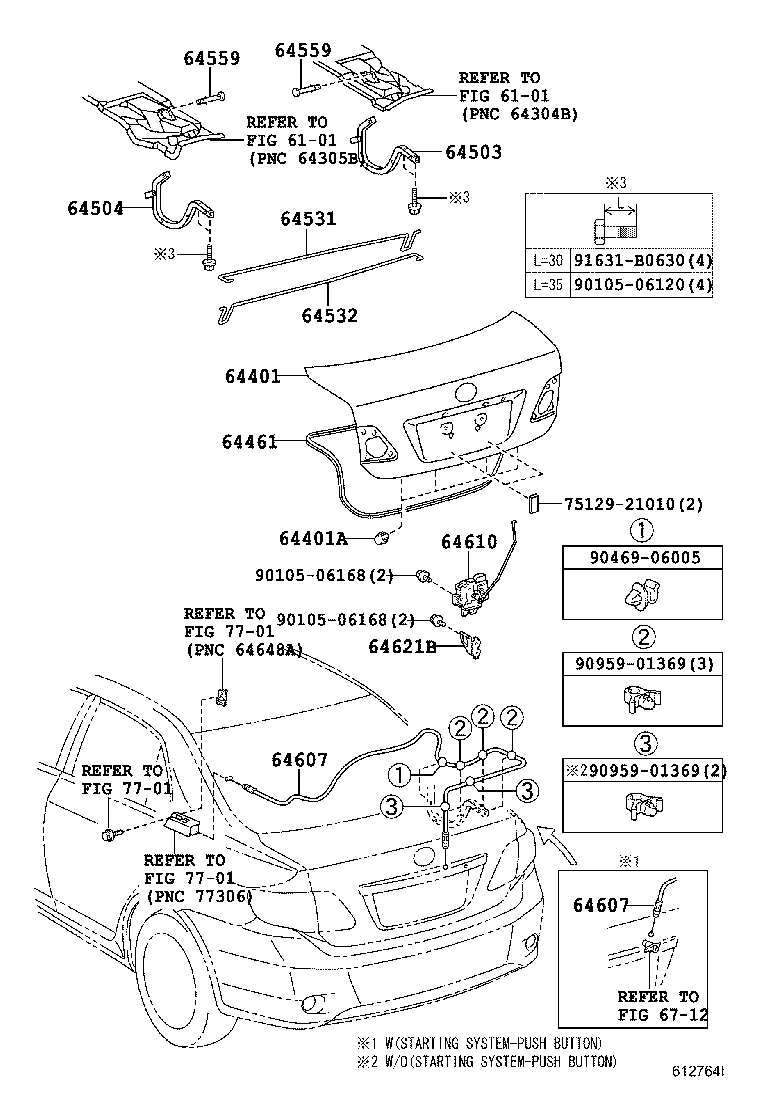

diagram 6101 6101 64401 64401A 64461 64503 64504 64531 64532 64559 64559 64607 64607 64610 64621B 6712 7512921010 7701 7701 7701 9010506120 9010506168 9010506168 9046906005 9095901369 9095901369 91631B0630
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12B50

ADE150,ZZE150;NDE150,ZRE151..5F,5FS

 1
64401-12B30

ADE150;ZRE151..(5F,5FS)..N

STARTING SYSTEM-PUSH BUTTON

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09116

ADE150

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12570

ADE150

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12170

ADE150

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12170

ADE150

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12790

ADE150,NDE150,ZRE151,ZZE150

 1
64531-12830

ADE150

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12770

ADE150,NDE150,ZRE151,ZZE150

 1
64532-12810

ADE150

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ADE150

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ADE150

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12890

ADE150,ZRE151..RHD..N

STARTING SYSTEM-PUSH BUTTON

 1
64607-12800

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
64607-12801

ADE150..RHD

 1
64607-12891

ADE150..RHD

STARTING SYSTEM-PUSH BUTTON

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12890

ADE150,ZRE151..RHD..N

STARTING SYSTEM-PUSH BUTTON

 1
64607-12800

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
64607-12801

ADE150..RHD

 1
64607-12891

ADE150..RHD

STARTING SYSTEM-PUSH BUTTON

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12390

ADE150

 1
64600-12021

ADE150

STARTING SYSTEM-PUSH BUTTON

 1
64600-12020

ADE150,ZRE151..N

STARTING SYSTEM-PUSH BUTTON

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33010

ADE150

 1
Common parts
75129-21010
90105-06120
90105-06168
90469-06005
90959-01369
91631-B0630
