ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )ADE150

Click highlighted areas on diagram

EA60,EA61

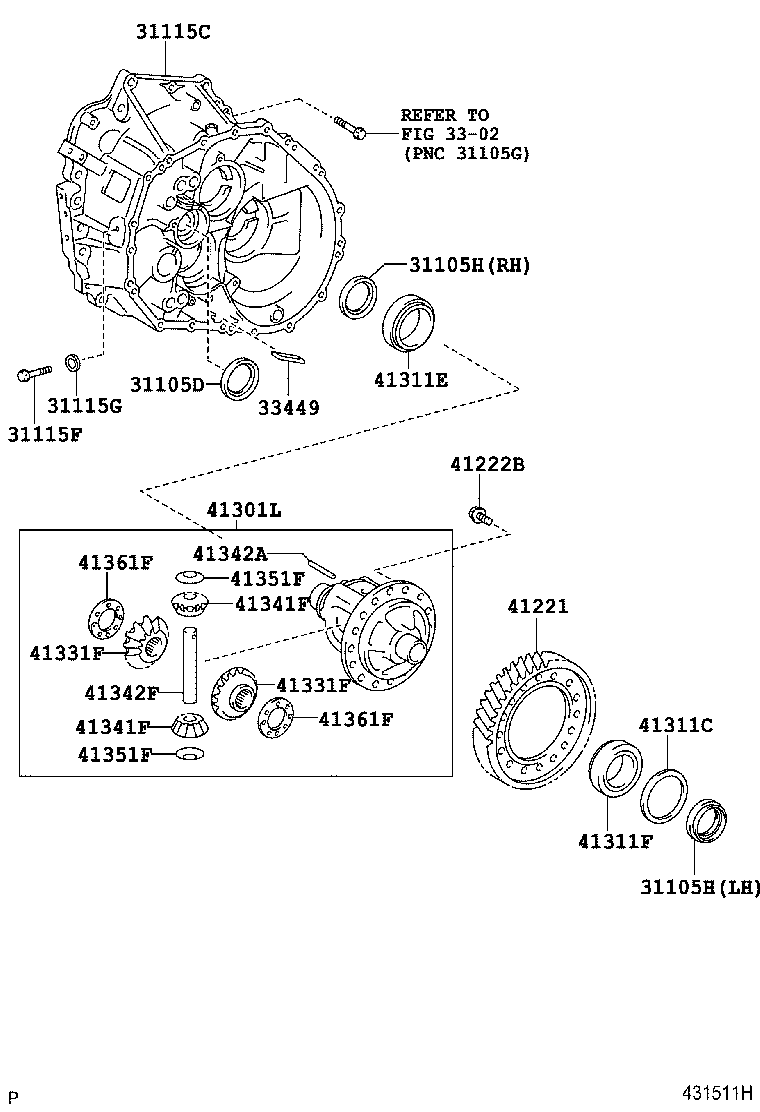

diagram 31105D 31105H 31105H 31115C 31115F 31115G 3302 33449 41221 41222B 41301L 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30017

ADE150

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-40030

ADE150

RH

 1
90311-50032

ADE150

LH

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-40030

ADE150

RH

 1
90311-50032

ADE150

LH

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20080

ADE150

 1
31115F - BOLT(FOR FRONT TRANSAXLE CASE)
90105-12354

ADE150

 1
31115G - GASKET(FOR FRONT TRANSAXLE CASE)
90430-13004

ADE150

 1
33449 - MAGNET, TRANSMISSION
33449-60010

ADE150

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20410

ADE150

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319

ADE150

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-20250

ADE150

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56073

ADE150

T=2.00,MARK 0

 1
90564-56075

ADE150

T=2.10,MARK 2

 1
90564-56077

ADE150

T=2.20,MARK 4

 1
90564-56076

ADE150

T=2.15,MARK 3

 1
90564-56078

ADE150

T=2.25,MARK 5

 1
90564-56083

ADE150

T=2.50,MARK A

 1
90564-56079

ADE150

T=2.30,MARK 6

 1
90564-56080

ADE150

T=2.35,MARK 7

 1
90564-56074

ADE150

T=2.05,MARK 1

 1
90564-56084

ADE150

T=2.55,MARK B

 1
90564-56081

ADE150

T=2.40,MARK 8

 1
90564-56088

ADE150

T=2.75,MARK F

 1
90564-56082

ADE150

T=2.45,MARK 9

 1
90564-56090

ADE150

T=2.85,MARK H

 1
90564-56085

ADE150

T=2.60,MARK C

 1
90564-56086

ADE150

T=2.65,MARK D

 1
90564-56089

ADE150

T=2.80,MARK G

 1
90564-56087

ADE150

T=2.70,MARK E

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-50100

ADE150

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50103

ADE150

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-42040

ADE150

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-42040

ADE150

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

ADE150

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

ADE150

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ADE150

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20070

ADE150

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

ADE150

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

ADE150

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20240

ADE150

T=1.25

 2
41361-20350

ADE150

T=1.50

 2
41361-20360

ADE150

T=1.55

 2
41361-20400

ADE150

T=1.75

 2
41361-20330

ADE150

T=1.40

 2
41361-20340

ADE150

T=1.45

 2
41361-20380

ADE150

T=1.65

 2
41361-20390

ADE150

T=1.70

 2
41361-20320

ADE150

T=1.35

 2
41361-20420

ADE150

T=1.85

 2
41361-20440

ADE150

T=1.95

 2
41361-20430

ADE150

T=1.90

 2
41361-20410

ADE150

T=1.80

 2
41361-20310

ADE150

T=1.30

 2
41361-20370

ADE150

T=1.60

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20240

ADE150

T=1.25

 2
41361-20350

ADE150

T=1.50

 2
41361-20360

ADE150

T=1.55

 2
41361-20400

ADE150

T=1.75

 2
41361-20330

ADE150

T=1.40

 2
41361-20340

ADE150

T=1.45

 2
41361-20380

ADE150

T=1.65

 2
41361-20390

ADE150

T=1.70

 2
41361-20320

ADE150

T=1.35

 2
41361-20420

ADE150

T=1.85

 2
41361-20440

ADE150

T=1.95

 2
41361-20430

ADE150

T=1.90

 2
41361-20410

ADE150

T=1.80

 2
41361-20310

ADE150

T=1.30

 2
41361-20370

ADE150

T=1.60

 2
