ADE150R-AEFNYW (2006)
Toyota Corolla Sed (Jpp)
Production
Nov 2006
-
Jan 2009
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0611-0901)1ADFTV..DCR

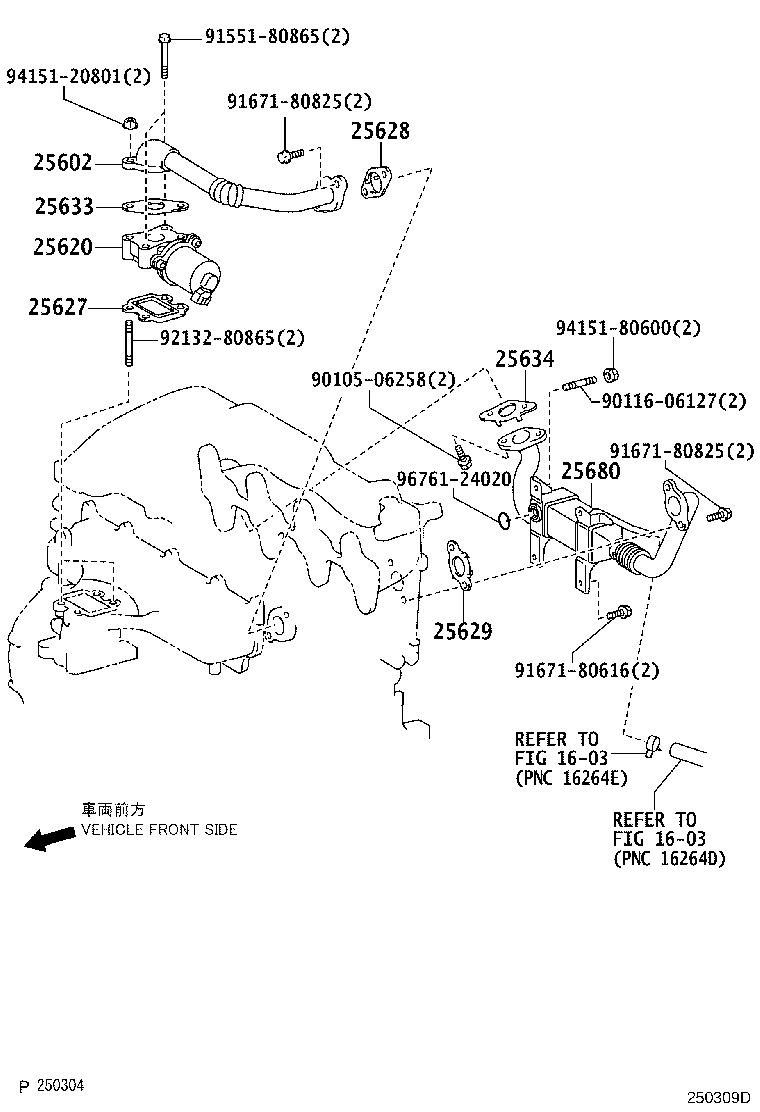

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25602 - PIPE SUB-ASSY, EGR, NO.2 | ||||
| 25612-26030 |
1ADFTV..ADE150 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-0R020 |
1ADFTV..ADE150 (L) |
1 | ||
| 25620-0R021 |
1ADFTV..ADE150 (L) |
1 | ||
| 25620-26111 |
1ADFTV..ADE150 (J) |
1 | ||
| 25620-26110 |
1ADFTV..ADE150 (J) |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-26020 |
1ADFTV..ADE150 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-26010 |
1ADFTV..ADE150 |
1 | ||
| 25628-26020 |
1ADFTV..ADE150 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25629-26010 |
1ADFTV..ADE150 |
1 | ||
| 25633 - GASKET, EGR VALVE | ||||
| 25633-26010 |
1ADFTV..ADE150 |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-0R010 |
1ADFTV..ADE150 |
1 | ||
| 25680 - COOLER ASSY, EGR | ||||
| 25680-0R010 |
1ADFTV..ADE150..DCR |
1 | ||
| 25680-26040 |
1ADFTV..ADE150..DCR |
1 | ||
| 25680-26041 |
1ADFTV..ADE150..DCR |
1 | ||
| Common parts | ||||
| 90105-06258 | ||||
| 90116-06127 | ||||
| 91551-80865 | ||||
| 91671-80616 | ||||
| 91671-80825 | ||||
| 92132-80865 | ||||
| 94151-20801 | ||||
| 94151-80600 | ||||
| 96761-24020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
