ADE150R-AEFNYW (2006)
Toyota Corolla Sed (Jpp)
Production
Nov 2006
-
Jan 2009
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0611-0901)1ADFTV

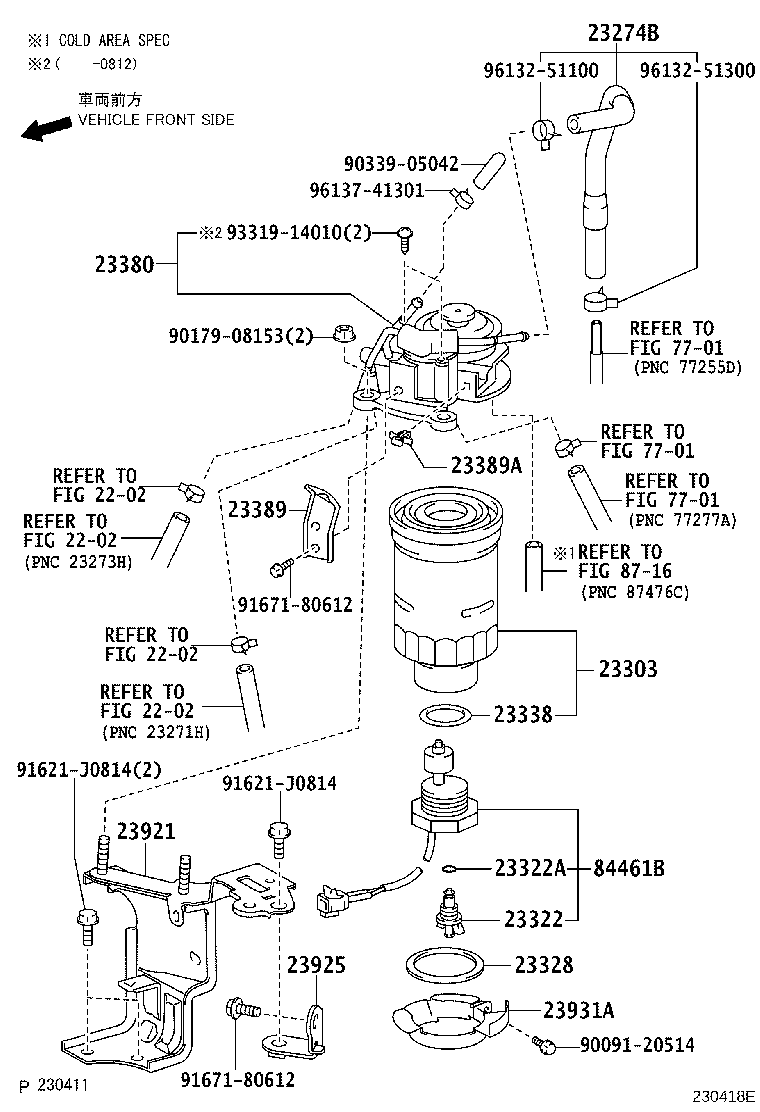

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23274B - HOSE, FUEL, NO.3 | ||||
| 23274-26060 |
1ADFTV..ADE150 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-26140 |
1ADFTV..ADE150 |
1 | ||
| 23390-26160 |
1ADFTV..ADE150 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1ADFTV..ADE150 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1ADFTV..ADE150 |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-30160 |
1ADFTV..ADE150 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1ADFTV..ADE150 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-26130 |
1ADFTV..ADE150 |
1 | ||
| 23380-26131 |
1ADFTV..ADE150 |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-26130 |
1ADFTV..ADE150 |
1 | ||
| 23389A - CLAMP, FUEL FILTER | ||||
| 23389-27130 |
1ADFTV..ADE150 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-26040 |
1ADFTV..ADE150 |
1 | ||
| 23921-26041 |
1ADFTV..ADE150 |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-26011 |
1ADFTV..ADE150 |
1 | ||
| 23925-26010 |
1ADFTV..ADE150 |
1 | ||
| 23931A - COVER, FUEL FILTER | ||||
| 23931-26010 |
1ADFTV..ADE150 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60080 |
ADE150 |
1 | ||
| Common parts | ||||
| 90091-20514 | ||||
| 90179-08153 | ||||
| 90339-05042 | ||||
| 91621-J0814 | ||||
| 91671-80612 | ||||
| 93319-14010 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 7701 | ||||
| 8716 | ||||
