ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ADFTV

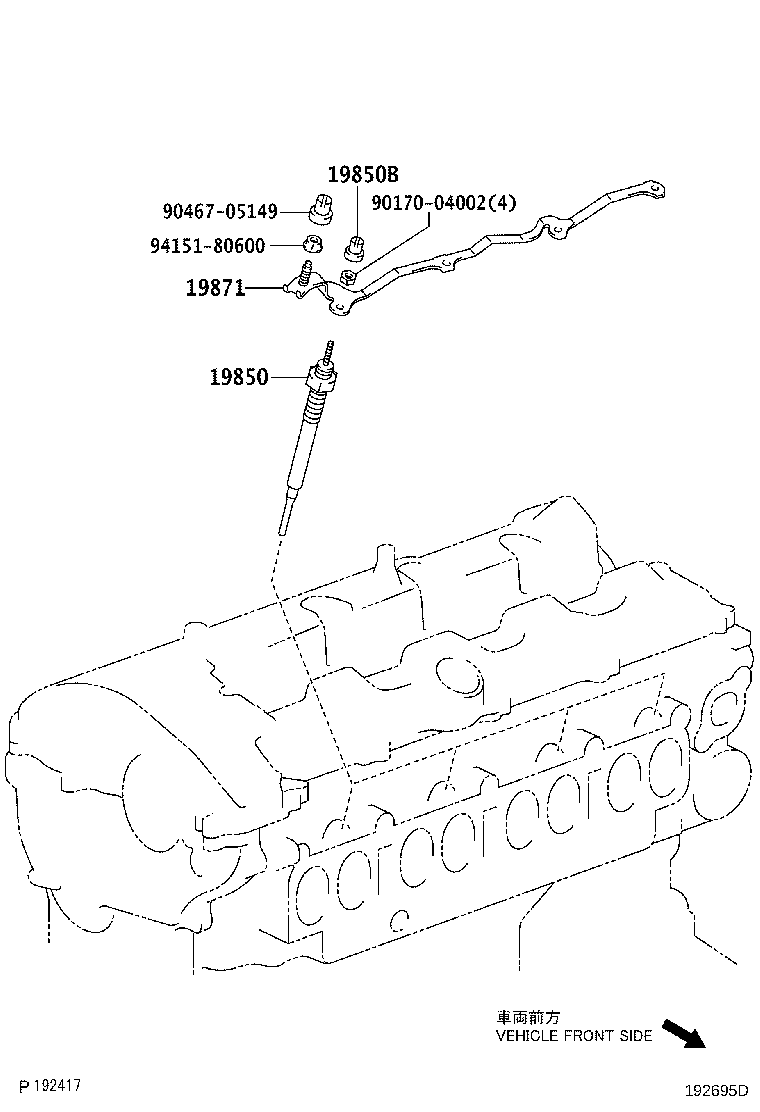

Click highlighted areas on diagram

diagram 19850 19850B 19871 9017004002 9046705149 9415180600
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-26010

1ADFTV..ADE150..DCR

*BV-GV=12V-11V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1ADFTV..ADE150

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-26010

1ADFTV..ADE150

 1
Common parts
90170-04002
90467-05149
94151-80600
