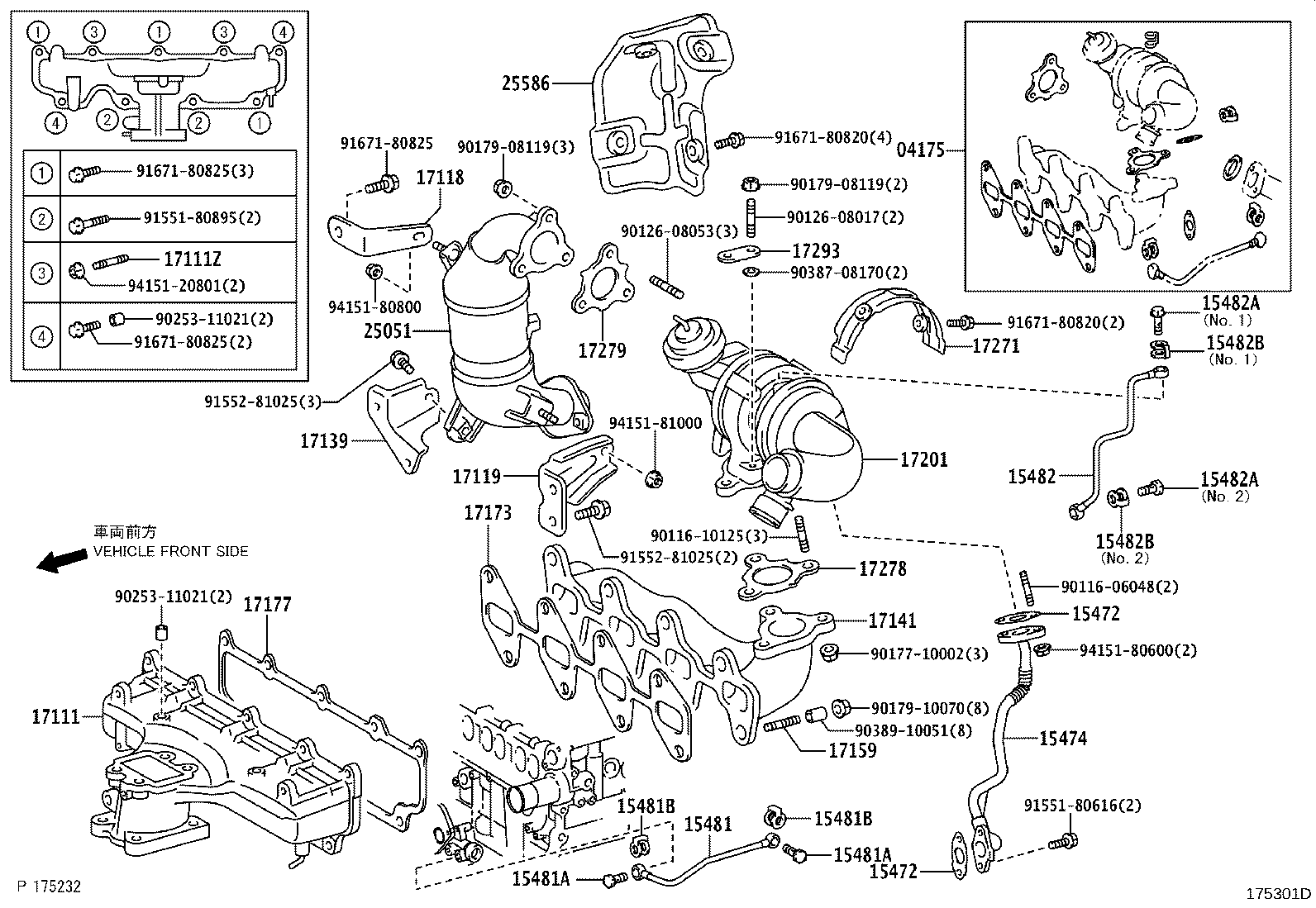

ADE150R-AEFNYW (2006)
Toyota Corolla Sed (Jpp)
(0611-0901)1ADFTV..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-26020 |
1ADFTV..ADE150..DCR |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-26010 |
1ADFTV..ADE150 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-26010 |
1ADFTV..ADE150 |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-26010 |
1ADFTV..ADE150 |
1 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-26010 |
1ADFTV..ADE150 (J) |
1 | ||
| 15481-0R010 |
1ADFTV..ADE150 (L) |
1 | ||
| 15481-0R010 |
1ADFTV..ADE150 |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12039 |
1ADFTV..ADE150 |
2 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12039 |
1ADFTV..ADE150 |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12037 |
1ADFTV..ADE150 |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12037 |
1ADFTV..ADE150 |
2 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-0R010 |
1ADFTV..ADE150..DCR |
1 | ||
| 15482-0R010 |
1ADFTV..ADE150..DCR (L) |
1 | ||
| 15482-26020 |
1ADFTV..ADE150..DCR (J) |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-10068 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 90401-12039 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-10068 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 90401-12039 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90904-30011 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 90430-12037 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90904-30011 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 90430-12037 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0R010 |
1ADFTV..ADE150 |
1 | ||
| 17101-0R011 |
1ADFTV..ADE150 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08167 |
1ADFTV..ADE150 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-26050 |
1ADFTV..ADE150..DCR |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-26070 |
1ADFTV..ADE150..DCR |
1 | ||
| 17119-26020 |
1ADFTV..ADE150..DCR |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-26030 |
1ADFTV..ADE150..DCR |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-26100 |
1ADFTV..ADE150 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10024 |
1ADFTV..ADE150 |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0R010 |
1ADFTV..ADE150 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-0R010 |
1ADFTV..ADE150 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0R040 |
1ADFTV..ADE150 (L) |
1 | ||
| 17201-26050 |
1ADFTV..ADE150 (J) |
1 | ||
| 17201-0R041 |
1ADFTV..ADE150 (L) |
1 | ||
| 17201-26051 |
1ADFTV..ADE150 (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0R020 |
1ADFTV..ADE150 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0R010 |
1ADFTV..ADE150..DCR |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-0R010 |
1ADFTV..ADE150 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-26010 |
1ADFTV..ADE150 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0R010 |
1ADFTV..ADE150..DCR *114=TOYOTA/0R010/Y |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-0R011 |
1ADFTV..ADE150..DCR |
1 | ||
| 25586-0R020 |
1ADFTV..ADE150..DCR |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10125 | ||||
| 90126-08017 | ||||
| 90126-08053 | ||||
| 90177-10002 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 90253-11021 | ||||
| 90387-08170 | ||||
| 90389-10051 | ||||
| 91551-80616 | ||||
| 91551-80895 | ||||
| 91552-81025 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 94151-20801 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
