ADE150R-AEFNYW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611- )1ADFTV

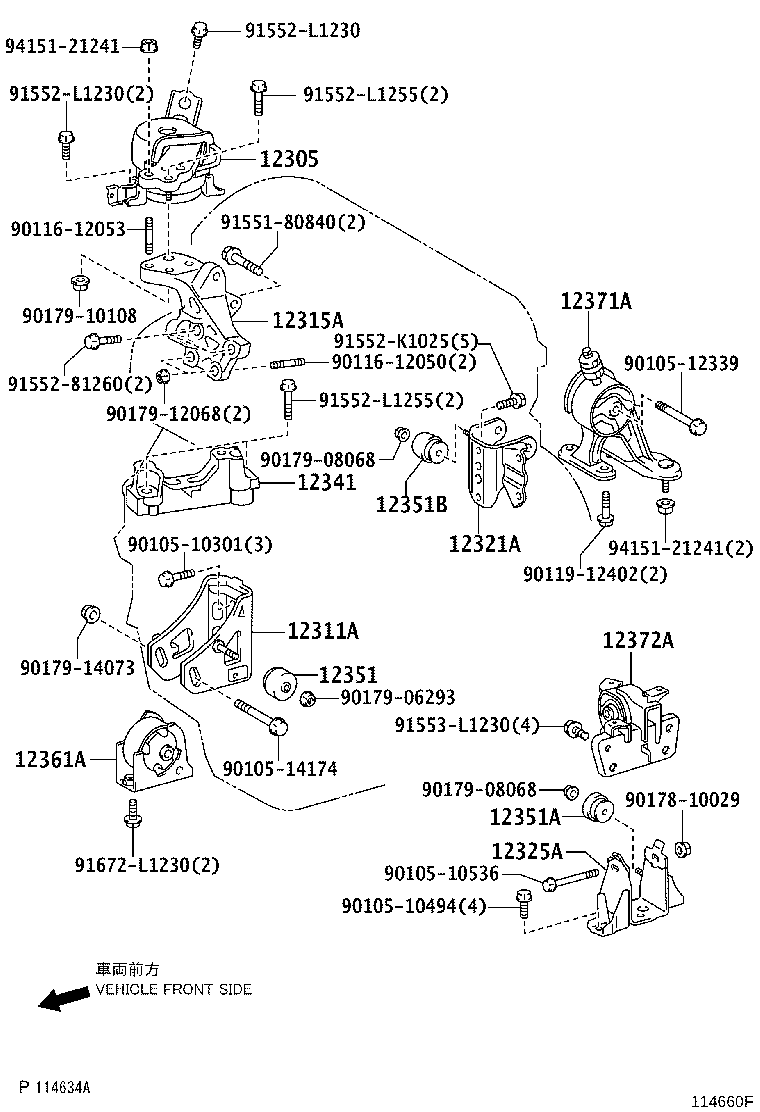

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12341 12351 12351A 12351B 12361A 12371A 12372A 9010510301 9010510494 9010510536 9010512339 9010514174 9011612050 9011612053 9011912402 9017810029 9017906293 9017908068 9017908068 9017910108 9017912068 9017914073 9155180840 9155281260 91552K1025 91552L1230 91552L1230 91552L1255 91552L1255 91553L1230 91672L1230 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-26080

1ADFTV..ADE150

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-26110

1ADFTV..ADE150

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-26020

1ADFTV..ADE150

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-26030

1ADFTV..ADE150

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-26030

1ADFTV..ADE150

 1
12341 - SPACER, ENGINE MOUNTING
12341-26010

1ADFTV..ADE150

 1
12341-26011

1ADFTV..ADE150

 1
12351 - DAMPER, ENGINE MOUNTING
12351-63010

1ADFTV..ADE150

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-26010

1ADFTV..ADE150

 1
12351B - DAMPER, ENGINE MOUNTING
12351-26010

1ADFTV..ADE150

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-26080

1ADFTV..ADE150

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-26020

1ADFTV..ADE150

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-26020

1ADFTV..ADE150

 1
Common parts
90105-10301
90105-10494
90105-10536
90105-12339
90105-14174
90116-12050
90116-12053
90119-12402
90178-10029
90179-06293
90179-08068
90179-10108
90179-12068
90179-14073
91551-80840
91552-81260
91552-K1025
91552-L1230
91552-L1255
91553-L1230
91672-L1230
94151-21241
