ADE150R-AEFNYW (2006)
Toyota Corolla Sed (Jpp)
(0611-0901)1ADFTV

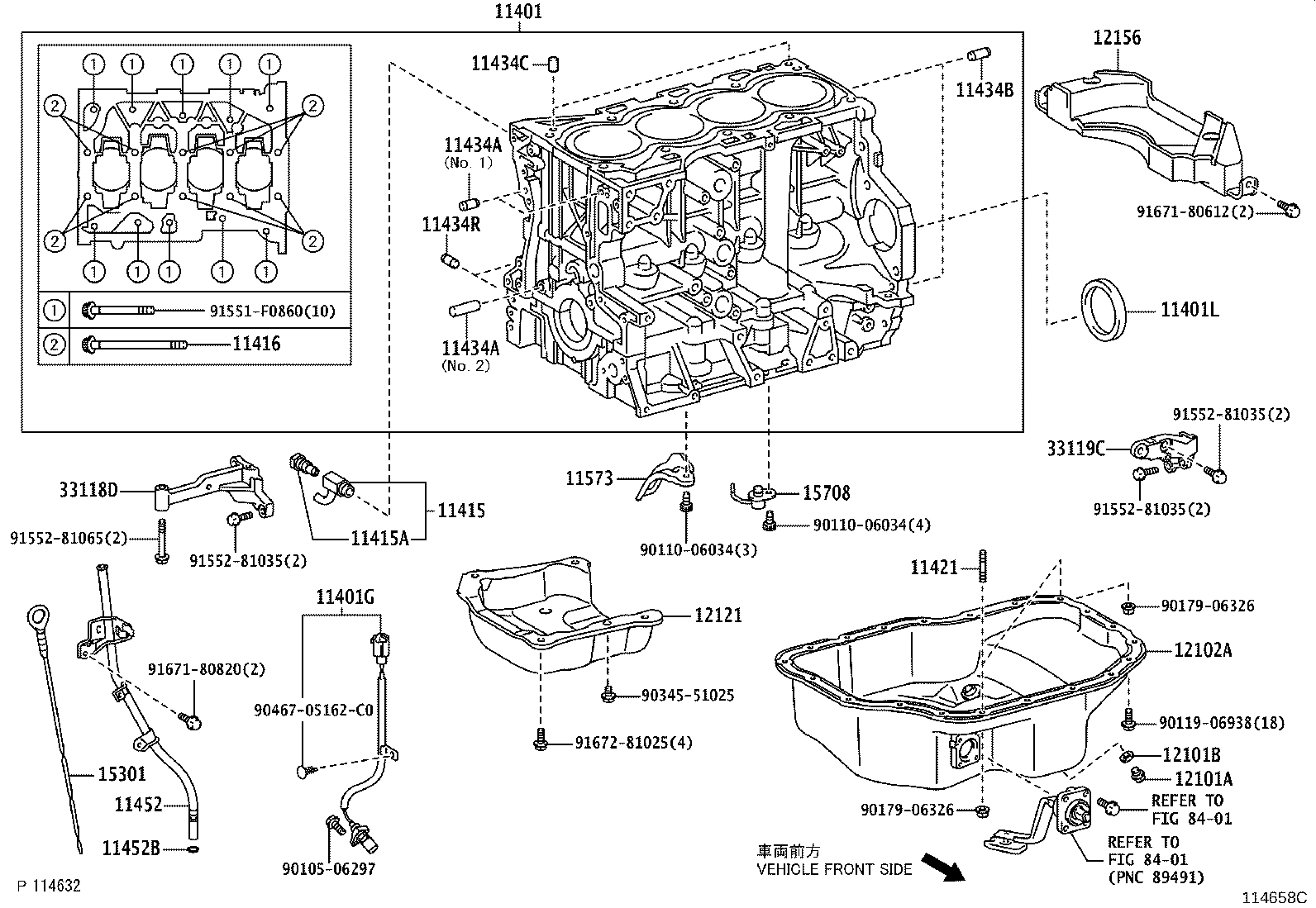

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-29395 |
1ADFTV..ADE150 |
1 | ||
| 11410-29355 |
1ADFTV..ADE150 |
1 | ||
| 11410-29405 |
1ADFTV..ADE150 |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05069 |
1ADFTV..ADE150 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-W0006 |
1ADFTV..ADE150 |
1 | ||
| 90311-90009 |
1ADFTV..ADE150 |
1 | ||
| 90311-W0010 |
1ADFTV..ADE150 (L) |
1 | ||
| 90311-90009 |
1ADFTV..ADE150 (J) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1ADFTV..ADE150 |
1 | ||
| 90910-09129 |
1ADFTV..ADE150 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1ADFTV..ADE150 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02157 |
1ADFTV..ADE150 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06134 |
1ADFTV..ADE150 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10030 |
1ADFTV..ADE150 L=36,OD=10,NO.2 |
1 | ||
| 90250-08120 |
1ADFTV..ADE150 L=18,OD=8,NO.1 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10030 |
1ADFTV..ADE150 L=36,OD=10,NO.2 |
1 | ||
| 90250-08120 |
1ADFTV..ADE150 L=18,OD=8,NO.1 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1ADFTV..ADE150 L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
1ADFTV..ADE150 L=15,OD=8 |
2 | ||
| 11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-08120 |
1ADFTV..ADE150 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-26050 |
1ADFTV..ADE150 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
1ADFTV..ADE150 |
1 | ||
| 11573 - PLATE, OIL REFLECTOR | ||||
| 11573-26010 |
1ADFTV..ADE150 |
3 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1ADFTV..ADE150 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1ADFTV..ADE150 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0R010 |
1ADFTV..ADE150 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-26020 |
1ADFTV..ADE150 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-0R010 |
1ADFTV..ADE150 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-26060 |
1ADFTV..ADE150 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-0R010 |
1ADFTV..ADE150 |
4 | ||
| 33118D - PLATE, STIFFENER, RH | ||||
| 33118-05010 |
ADE150 |
1 | ||
| 33119C - PLATE, STIFFENER, LH | ||||
| 33119-05010 |
ADE150 |
1 | ||
| Common parts | ||||
| 90105-06297 | ||||
| 90110-06034 | ||||
| 90119-06938 | ||||
| 90179-06326 | ||||
| 90345-51025 | ||||
| 90467-05162C0 | ||||
| 91551-F0860 | ||||
| 91552-81035 | ||||
| 91552-81065 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 8401 | ||||
