ADE150R-AEFNXW (2009)
Toyota Corolla Sed (Jpp)
Production
Jan 2009
-
Feb 2010
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )1ADFTV

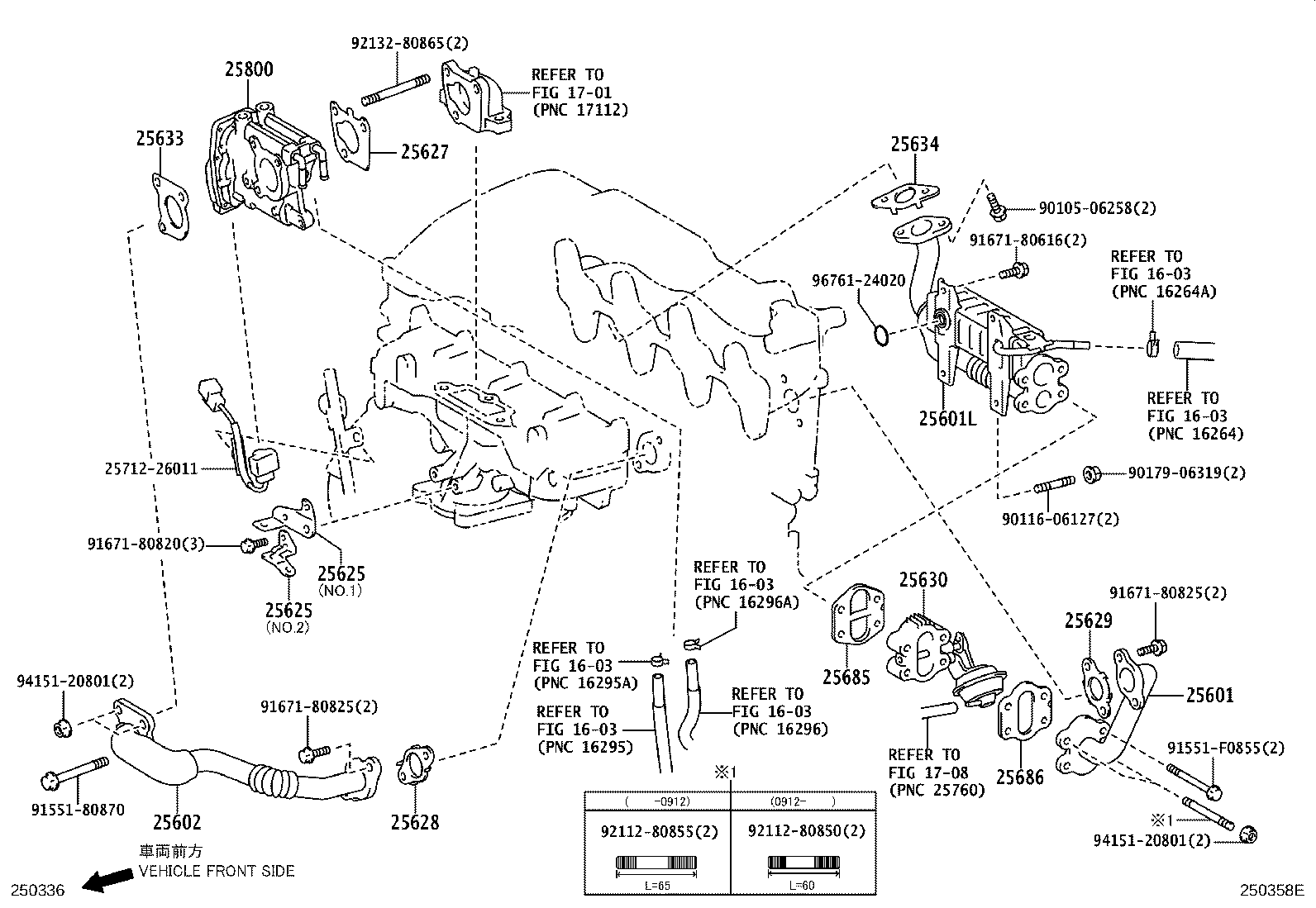

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25611-26020 |
1ADFTV..ADE150..DCRL |
1 | ||
| 25611-26030 |
1ADFTV..ADE150 |
1 | ||
| 25601L - PIPE SUB-ASSY, EGR W/COOLER | ||||
| 25601-0R020 |
1ADFTV..ADE150 |
1 | ||
| 25602 - PIPE SUB-ASSY, EGR, NO.2 | ||||
| 25612-26030 |
1ADFTV..ADE150 |
1 | ||
| 25612-0R031 |
1ADFTV..ADE150 (L) |
1 | ||
| 25612-26040 |
1ADFTV..ADE150 (J) |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-26010 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 25625-26020 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-26010 |
1ADFTV..ADE150 NO.1 |
1 | ||
| 25625-26020 |
1ADFTV..ADE150 NO.2 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-26030 |
1ADFTV..ADE150 (J) |
1 | ||
| 25627-26020 |
1ADFTV..ADE150 |
1 | ||
| 25627-0R020 |
1ADFTV..ADE150 (L) |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-26010 |
1ADFTV..ADE150 |
1 | ||
| 25628-26020 |
1ADFTV..ADE150 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25629-26010 |
1ADFTV..ADE150 |
1 | ||
| 25629-26010 |
1ADFTV..ADE150 (J) |
1 | ||
| 25629-0R010 |
1ADFTV..ADE150 (L) |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-26010 |
1ADFTV..ADE150..DCRL |
1 | ||
| 25630-26020 |
1ADFTV..ADE150 |
1 | ||
| 25633 - GASKET, EGR VALVE | ||||
| 25633-26010 |
1ADFTV..ADE150 |
1 | ||
| 25633-26020 |
1ADFTV..ADE150 (J) |
1 | ||
| 25633-0R020 |
1ADFTV..ADE150 (L) |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-0R010 |
1ADFTV..ADE150 |
1 | ||
| 25634-0R010 |
1ADFTV..ADE150 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-0R010 |
1ADFTV..ADE150 |
1 | ||
| 25685-0R010 |
1ADFTV..ADE150..DCRL |
1 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-0R010 |
1ADFTV..ADE150 |
1 | ||
| 25686-0R010 |
1ADFTV..ADE150..DCRL |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-26010 |
1ADFTV..ADE150 (J) |
1 | ||
| 25800-0R010 |
1ADFTV..ADE150 (L) |
1 | ||
| Common parts | ||||
| 25712-26011 | ||||
| 90105-06258 | ||||
| 90116-06127 | ||||
| 90179-06319 | ||||
| 91551-80870 | ||||
| 91551-F0855 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 92112-80850 | ||||
| 92112-80855 | ||||
| 92132-80865 | ||||
| 94151-20801 | ||||
| 96761-24020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
