ADE150L-AEFNYW (2006)
Toyota Corolla Sed (Jpp)
Production
Nov 2006
-
Jan 2009
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

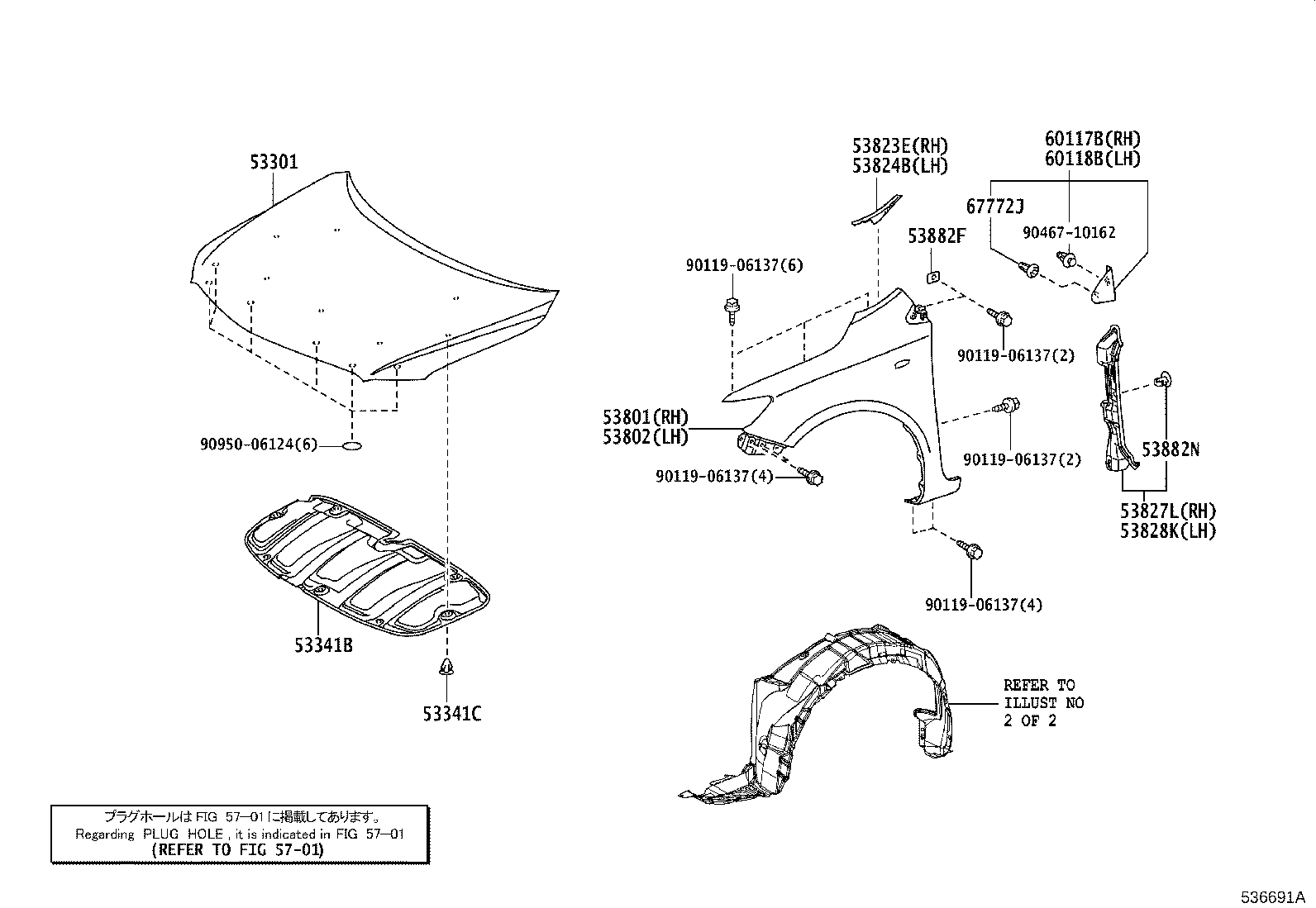

ILLUST NO. 1 OF 2(0611-0812)NDE150,ZRE151,ZZE150 ; (0611-0901)ADE150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12A20 |
ADE150 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-12260 |
ADE150 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ADE150 |
7 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-12A10 |
ADE150 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-12A10 |
ADE150 |
1 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-12030 |
ADE150 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-12020 |
ADE150 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12080 |
ADE150 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12080 |
ADE150 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ADE150 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-11050E1 |
ADE150 SANDAL WOOD |
2 | ||
| 60117B - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-12030 |
ADE150 |
1 | ||
| 60118B - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-12030 |
ADE150 |
1 | ||
| 67772J - CAP, FRONT PILLAR COVER RETAINER | ||||
| 67772-95J03 |
ADE150 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-10162 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(0611-0812)NDE150,ZRE151,ZZE150 ; (0611-0901)ADE150
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-12080 |
ADE150 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-12070 |
ADE150 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12430 |
ADE150 |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12410 |
ADE150 |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90467-07201 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
ILLUST NO. 1 OF 2(0812- )NDE150,NRE150,ZRE151 ; (0901- )ADE150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12A20 |
ADE150 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-12260 |
ADE150 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ADE150 |
7 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-12A10 |
ADE150 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-12A10 |
ADE150 |
1 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-12030 |
ADE150 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-12020 |
ADE150 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12080 |
ADE150 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12080 |
ADE150 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ADE150 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-11050E1 |
ADE150 SANDAL WOOD |
2 | ||
| 60117B - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-12030 |
ADE150 |
1 | ||
| 60118B - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-12030 |
ADE150 |
1 | ||
| 67772J - CAP, FRONT PILLAR COVER RETAINER | ||||
| 67772-95J03 |
ADE150 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-10162 | ||||
| 90950-06096 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(0812- )NDE150,NRE150,ZRE151 ; (0901- )ADE150
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-58010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
2 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-12080 |
ADE150 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-12070 |
ADE150 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12430 |
ADE150 |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12410 |
ADE150 |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
