ADE150L-AEFNXW (2006)

Toyota Corolla Sed (Jpp)

Production Nov 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0611-0901)1ADFTV..DCR

Click highlighted areas on diagram

diagram 1757826100 23265C 25706 25708 25760 25760 25760 25760C 25761B 25770B 25819 25861 8405 8405 9009904613 9033903005 9041304008 9046706115 9046706115 9046706115 9046706115 9046706115 9099992002 9099992002 9099992002 9099992003 9167180614 9167180614 9167180614 9167180614 9613250700 9613250700 9613250700
Part # Description Qty Price
23265C - FILTER, GAS
90917-11036

1ADFTV..ADE150

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-26010

1ADFTV..ADE150

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25736-26030

1ADFTV..ADE150

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-26021

1ADFTV..ADE150..DCR

 3
25760-26021

1ADFTV..ADE150..DCRL

 2
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-26021

1ADFTV..ADE150..DCR

 3
25760-26021

1ADFTV..ADE150..DCRL

 2
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-26021

1ADFTV..ADE150..DCR

 3
25760-26021

1ADFTV..ADE150..DCRL

 2
25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25760-26120

1ADFTV..ADE150

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-26030

1ADFTV..ADE150

 1
25770B - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25770-26071

1ADFTV..ADE150

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0R011

1ADFTV..ADE150

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-26010

1ADFTV..ADE150..DCR

 1
25861-26040

1ADFTV..ADE150..DCRL

 1
Common parts
17578-26100
90099-04613
90339-03005
90413-04008
90467-06115
90999-92002
90999-92003
91671-80614
96132-50700
Linked diagrams
8405

(0611-0901)1ADFTV..DCRL

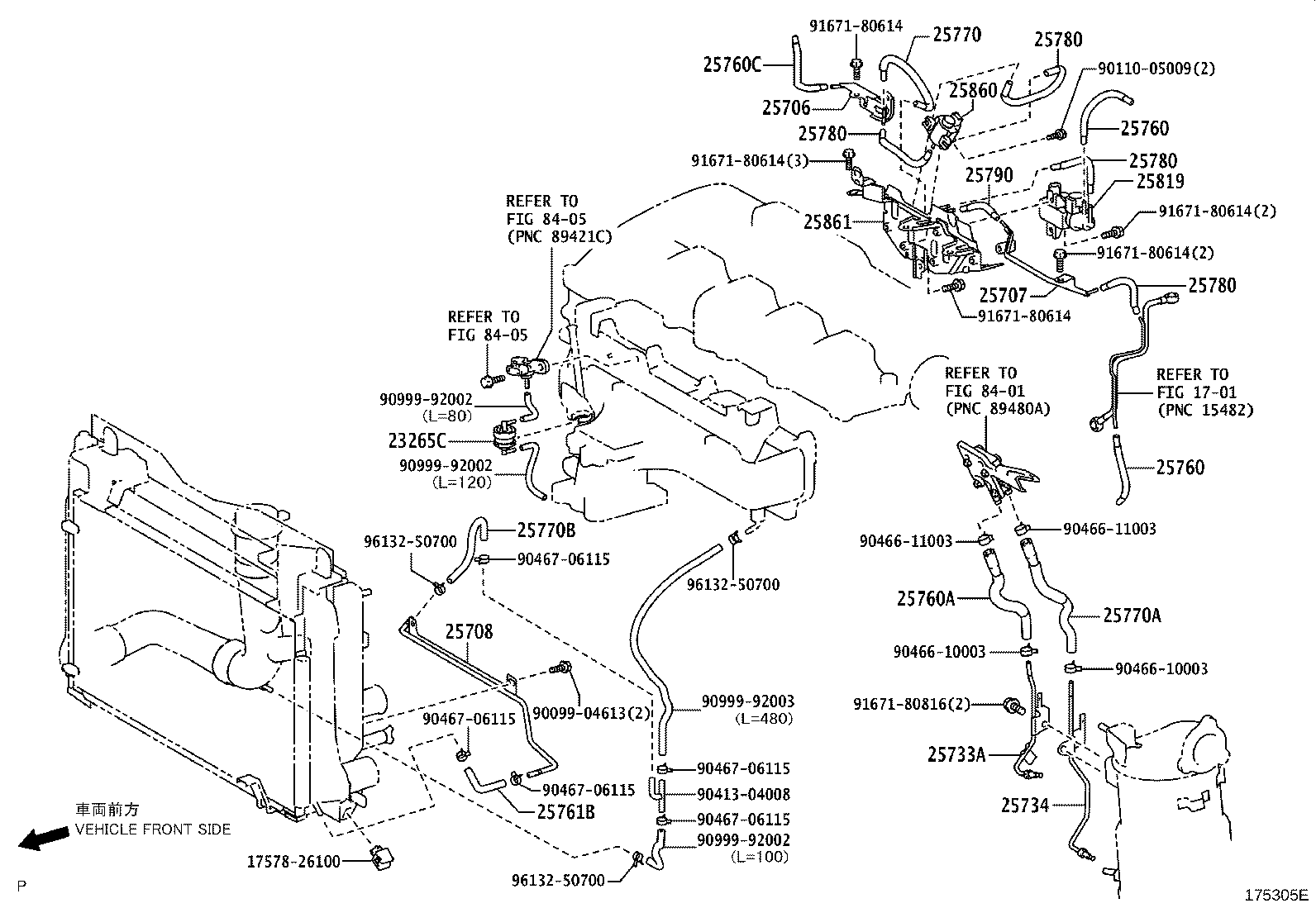

Click highlighted areas on diagram

diagram 1701 1757826100 23265C 25706 25707 25708 25733A 25734 25760 25760 25760A 25760C 25761B 25770 25770A 25770B 25780 25780 25780 25780 25790 25819 25860 25861 8401 8405 8405 9009904613 9011005009 9041304008 9046610003 9046610003 9046611003 9046611003 9046706115 9046706115 9046706115 9046706115 9046706115 9099992002 9099992002 9099992002 9099992003 9167180614 9167180614 9167180614 9167180614 9167180614 9167180816 9613250700 9613250700 9613250700
Part # Description Qty Price
23265C - FILTER, GAS
90917-11036

1ADFTV..ADE150

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-26010

1ADFTV..ADE150

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-26010

1ADFTV..ADE150..DCRL

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25736-26030

1ADFTV..ADE150

 1
25733A - PIPE, VACUUM, NO.1
25733-26010

1ADFTV..ADE150..DCRL

 1
25733-26011

1ADFTV..ADE150..DCRL

 1
25734 - PIPE, VACUUM, NO.2
25734-26010

1ADFTV..ADE150..DCRL

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-26021

1ADFTV..ADE150..DCR

 3
25760-26021

1ADFTV..ADE150..DCRL

 2
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-26021

1ADFTV..ADE150..DCR

 3
25760-26021

1ADFTV..ADE150..DCRL

 2
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-26080

1ADFTV..ADE150..DCRL

 1
25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25760-26120

1ADFTV..ADE150

 1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-26030

1ADFTV..ADE150

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-26020

1ADFTV..ADE150..DCRL

 1
25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-26050

1ADFTV..ADE150..DCRL

 1
25770B - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25770-26071

1ADFTV..ADE150

 1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-26011

1ADFTV..ADE150..DCRL

 4
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-26011

1ADFTV..ADE150..DCRL

 4
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-26011

1ADFTV..ADE150..DCRL

 4
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-26011

1ADFTV..ADE150..DCRL

 4
25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25790-26011

1ADFTV..ADE150..DCRL

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0R011

1ADFTV..ADE150

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0R010

1ADFTV..ADE150..DCRL

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-26010

1ADFTV..ADE150..DCR

 1
25861-26040

1ADFTV..ADE150..DCRL

 1
Common parts
17578-26100
90099-04613
90110-05009
90413-04008
90466-10003
90466-11003
90467-06115
90999-92002
90999-92003
91671-80614
91671-80816
96132-50700
Linked diagrams
1701
8401
8405
