ZZE121R-DEPNKW (2002)
Toyota Corolla Sed/Wg (Ukp)
Production
Jan 2002
-
Jun 2004
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0201-0406)UKP..RHD

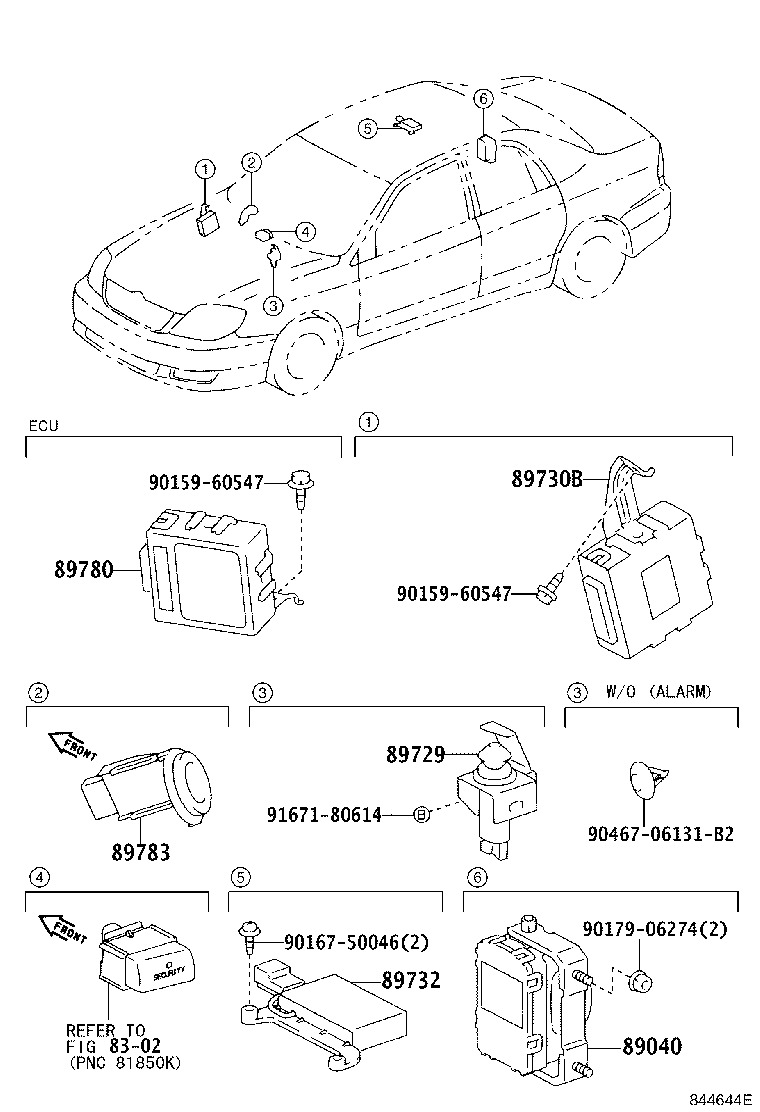

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89040 - SIREN ASSY, THEFT WARNING | ||||
| 89040-02010 |
ZZE121..UKP..RHD..SOL |
1 | ||
| 89729 - SWITCH, THEFT WARNING COURTESY | ||||
| 84243-13012 |
ZZE121..UKP..RHD..SOL |
1 | ||
| 89730B - COMPUTER ASSY, THEFT WARNING | ||||
| 89730-02020 |
ZZE121..UKP..RHD..SOL |
1 | ||
| 89732 - SENSOR, THEFT WARNING RADAR | ||||
| 89732-02010 |
ZZE121..UKP..RHD..SOL |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-02020 |
CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA |
1 | ||
| Common parts | ||||
| 90159-60547 | ||||
| 90167-50046 | ||||
| 90179-06274 | ||||
| 90467-06131B2 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8302 | ||||
