ZZE121R-DEPNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Jun 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

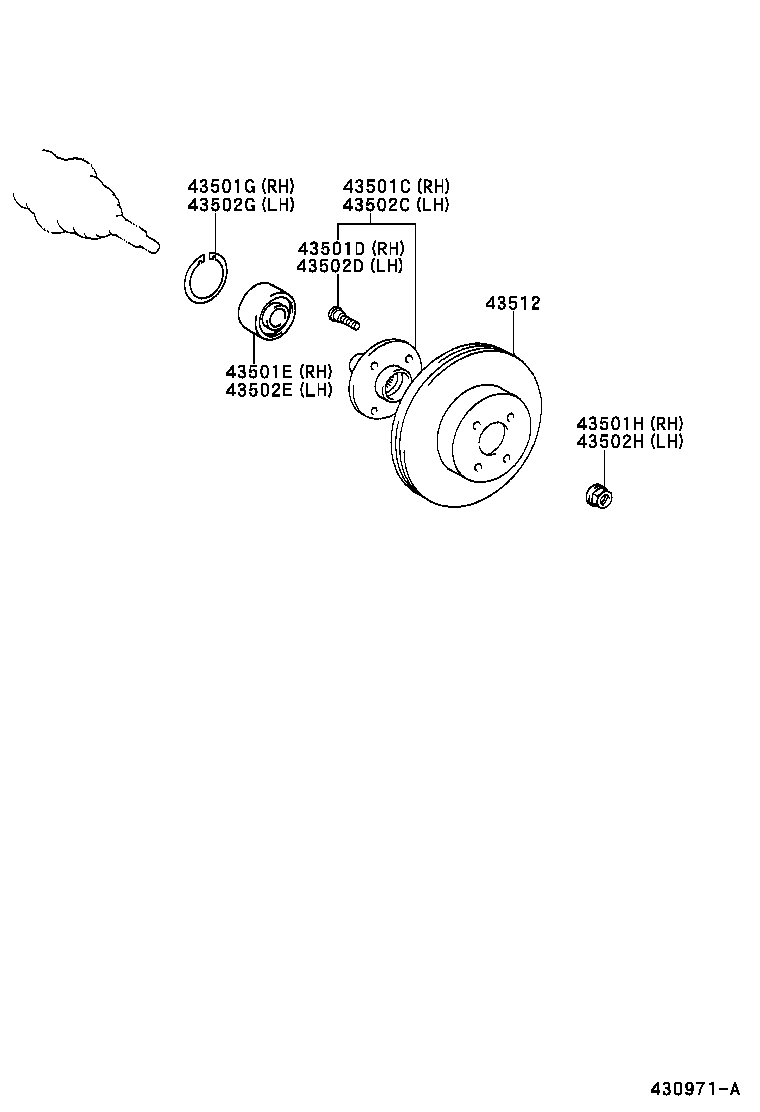

Click highlighted areas on diagram

diagram 43501C 43501D 43501E 43501G 43501H 43502C 43502D 43502E 43502G 43502H 43512
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-12140

CDE120,ZZE12#..UKP

(J)

 1
43502-02021

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

FRAME NO.=EXXXXXX

 1
43502-02060

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

FRAME NO.=RXXXXXX

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 4
43501E - BEARING (FOR FRONT AXLE HUB RH)
90080-36087

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH)
90521-79002

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-12140

CDE120,ZZE12#..UKP

(J)

 1
43502-02060

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

FRAME NO.=RXXXXXX

 1
43502-02021

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

FRAME NO.=EXXXXXX

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 4
43502E - BEARING (FOR FRONT AXLE HUB LH)
90080-36087

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH)
90521-79002

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
43512 - DISC, FRONT
43512-02070

ZZE12#..UKP

 2
