ZZE121R-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

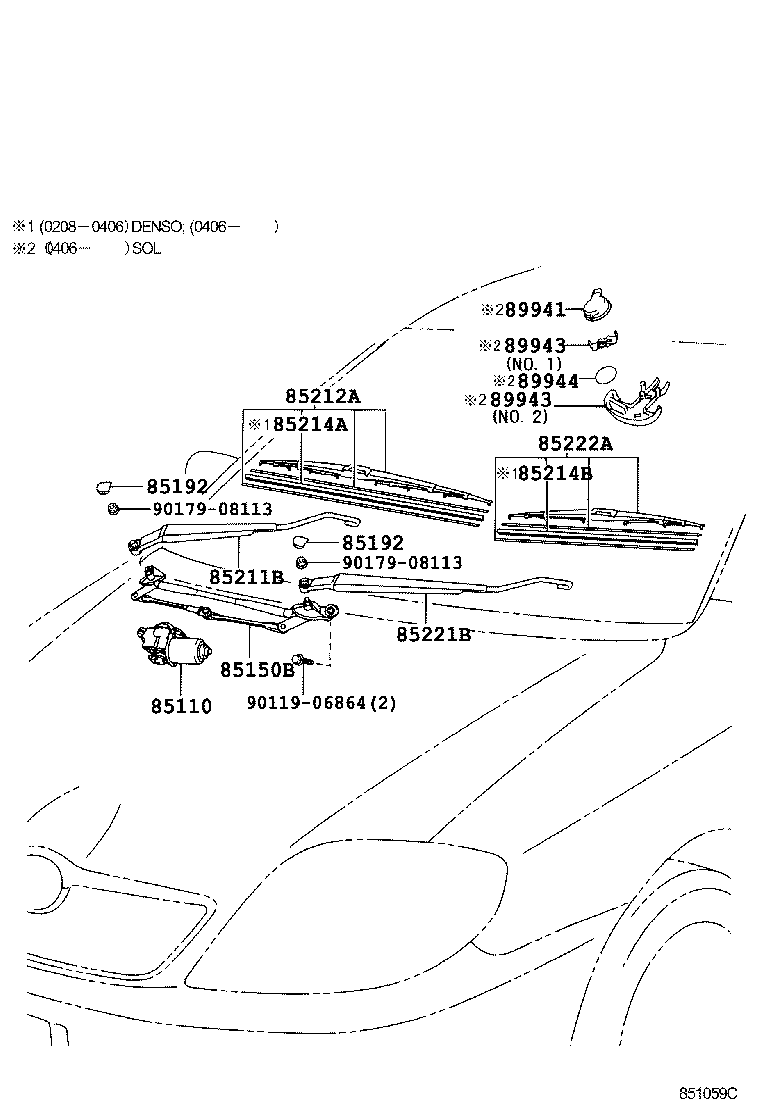

Click highlighted areas on diagram

diagram 85110 85150B 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 89941 89943 89943 89944 9011906864 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02140

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85110-02090

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85110-02090

CDE120,ZZE12#..UKP..RHD

 1
85110-02140

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85150B - LINK ASSY, WIPER
85150-02070

CDE120,ZZE12#..UKP..RHD

 1
85150-02120

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85150-02070

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85150-02120

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-02020

CDE120,ZZE12#..UKP

 2
85292-02020

CDE120,NDE120,ZZE12#..UKP

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-02020

CDE120,ZZE12#..UKP

 2
85292-02020

CDE120,NDE120,ZZE12#..UKP

 2
85211B - ARM, FRONT WIPER, RH
85211-02100

CDE120,ZZE12#..UKP..RHD

 1
85211-02150

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85211-02150

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85211-02100

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85212A - BLADE, FR WIPER, RH
85212-02150

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85212-02150

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85212-02100

CDE120,ZZE12#..UKP..RHD

 1
85212-02100

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85214A - RUBBER, WIPER, RH
85214-05080

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85214-05080

CDE120,ZZE12#..UKP..RHD

 1
85214B - RUBBER, WIPER, LH
85214-02210

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85214-02210

CDE120,ZZE12#..UKP..RHD

 1
85214-02211

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-02110

CDE120,ZZE12#..UKP..RHD..SED

VALEO

 1
85221-02110

CDE120,ZZE12#..UKP..RHD

 1
85221-02160

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85221-02160

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85222A - BLADE, FR WIPER, LH
85222-02160

CDE120,ZZE12#..UKP..RHD

DENSO

 1
85222-05090

CDE120,ZZE12#..UKP..RHD

 1
85222-05090

CDE120,ZZE12#..UKP..RHD

VALEO

 1
85222-02160

CDE120,NDE120,ZZE12#..UKP..RHD

 1
85222-02161

CDE120,NDE120,ZZE12#..UKP..RHD

 1
Common parts
90119-06864
90179-08113
