ZZE121R-DEMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
ILLUST NO. 3 OF 7(0201- )UKP..RHD

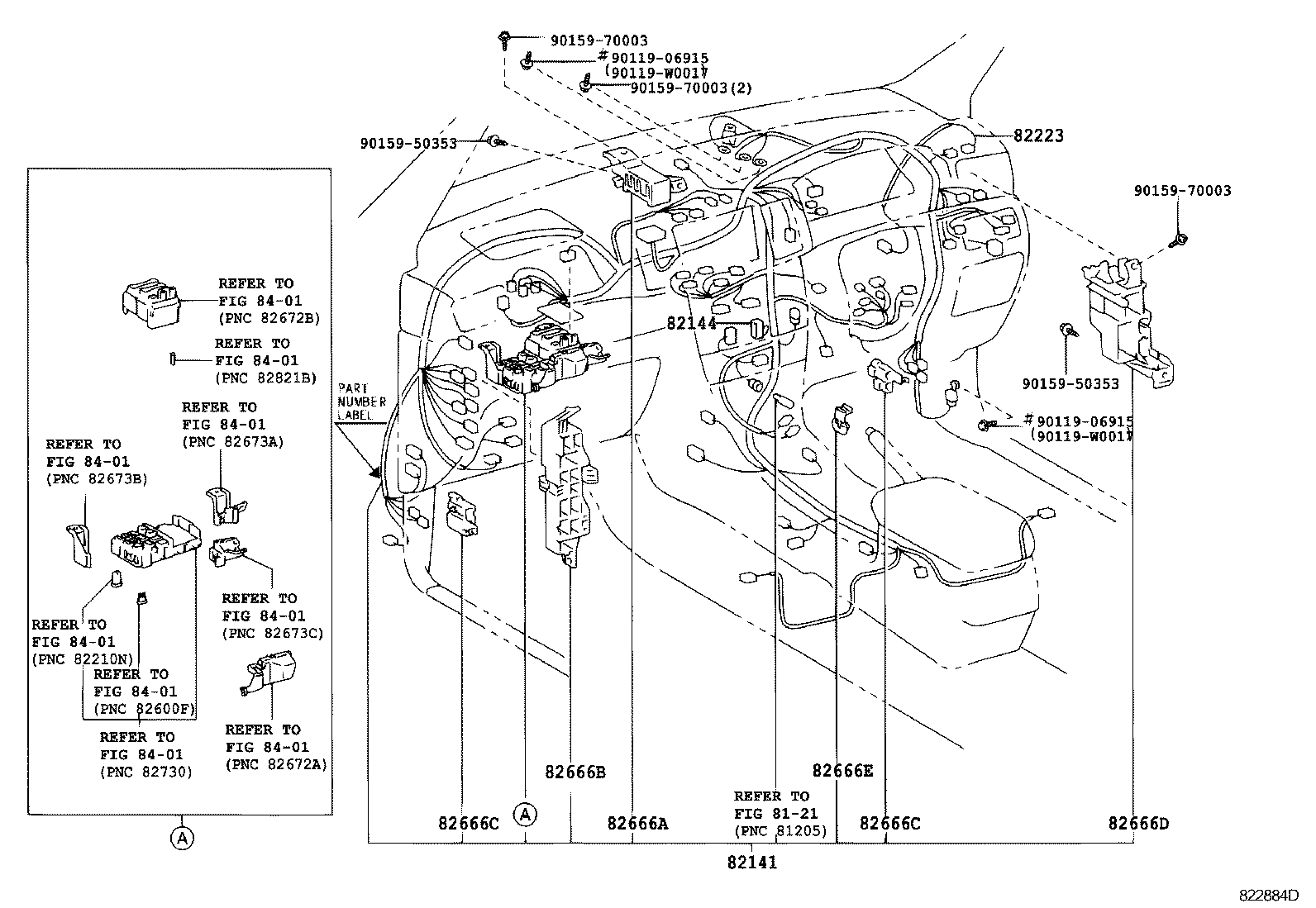

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82117-02470 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02470 |
1 | ||
| 82117-02460 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02460 |
1 | ||
| 82117-02461 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02461 |
1 | ||
| 82117-02471 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02471 |
1 | ||
| 82117-02462 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02462 |
1 | ||
| 82117-02472 |
ZZE121..UKP..RHD..TERRA PART NUMBER LABEL=82117-02472 |
1 | ||
| 82145-02A80 |
ZZE121..UKP..RHD PART NUMBER LABEL=82145-02A80 |
1 | ||
| 82145-02B00 |
ZZE121..UKP..RHD PART NUMBER LABEL=82145-02B00 |
1 | ||
| 82145-02A81 |
ZZE121..UKP..RHD PART NUMBER LABEL=82145-02A81 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-02070 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82144-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-02080 |
ZZE12#..UKP..RHD |
1 | ||
| 82223-02080 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12240 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12240 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12340 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12250 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP..RHD |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
CDE120,ZZE12#..UKP..RHD |
2 | ||
| 82666-02070 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12290 |
CDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666-12290 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666-02110 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90159-50353 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 7(0201- )ZZE12#..UKP

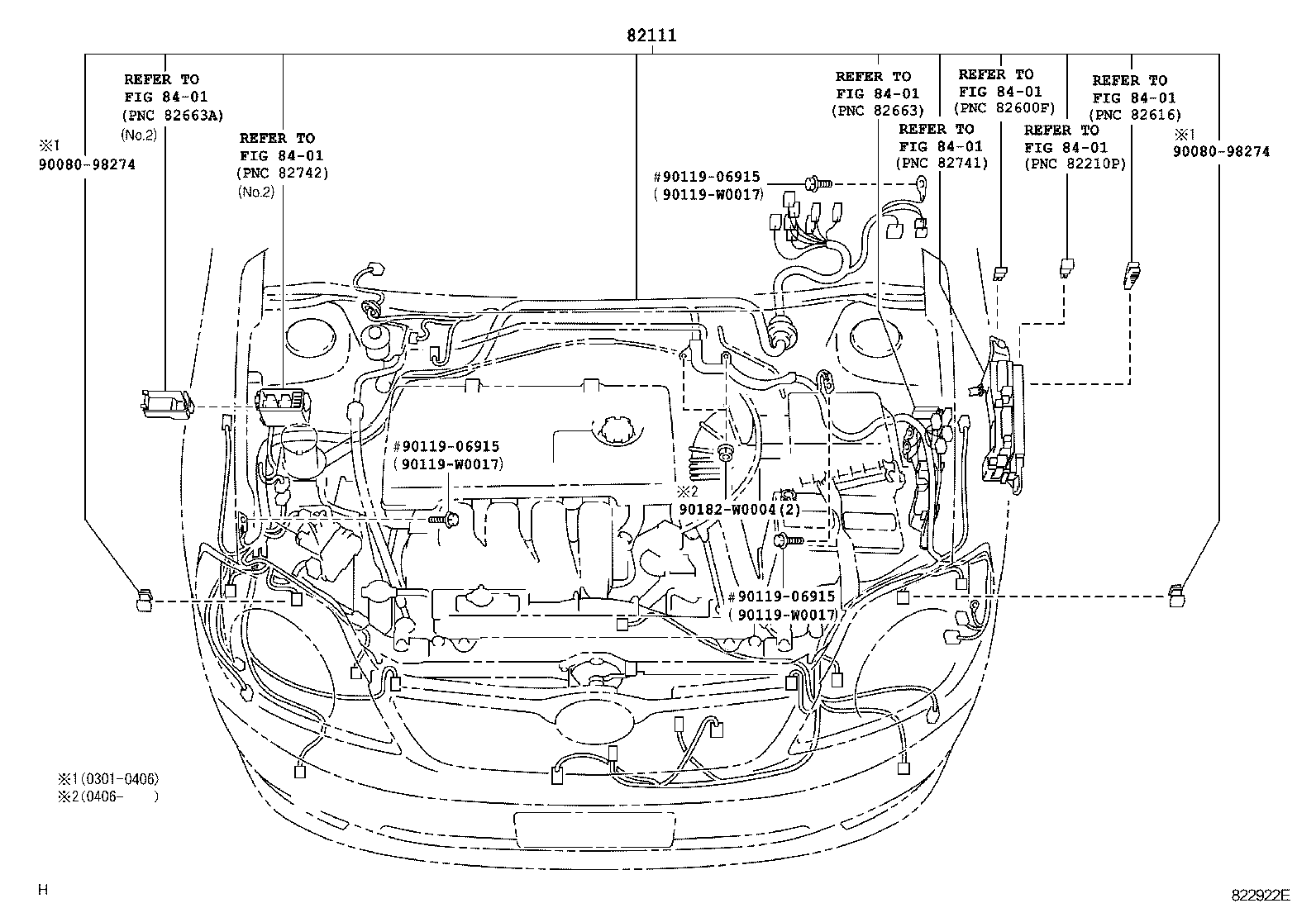

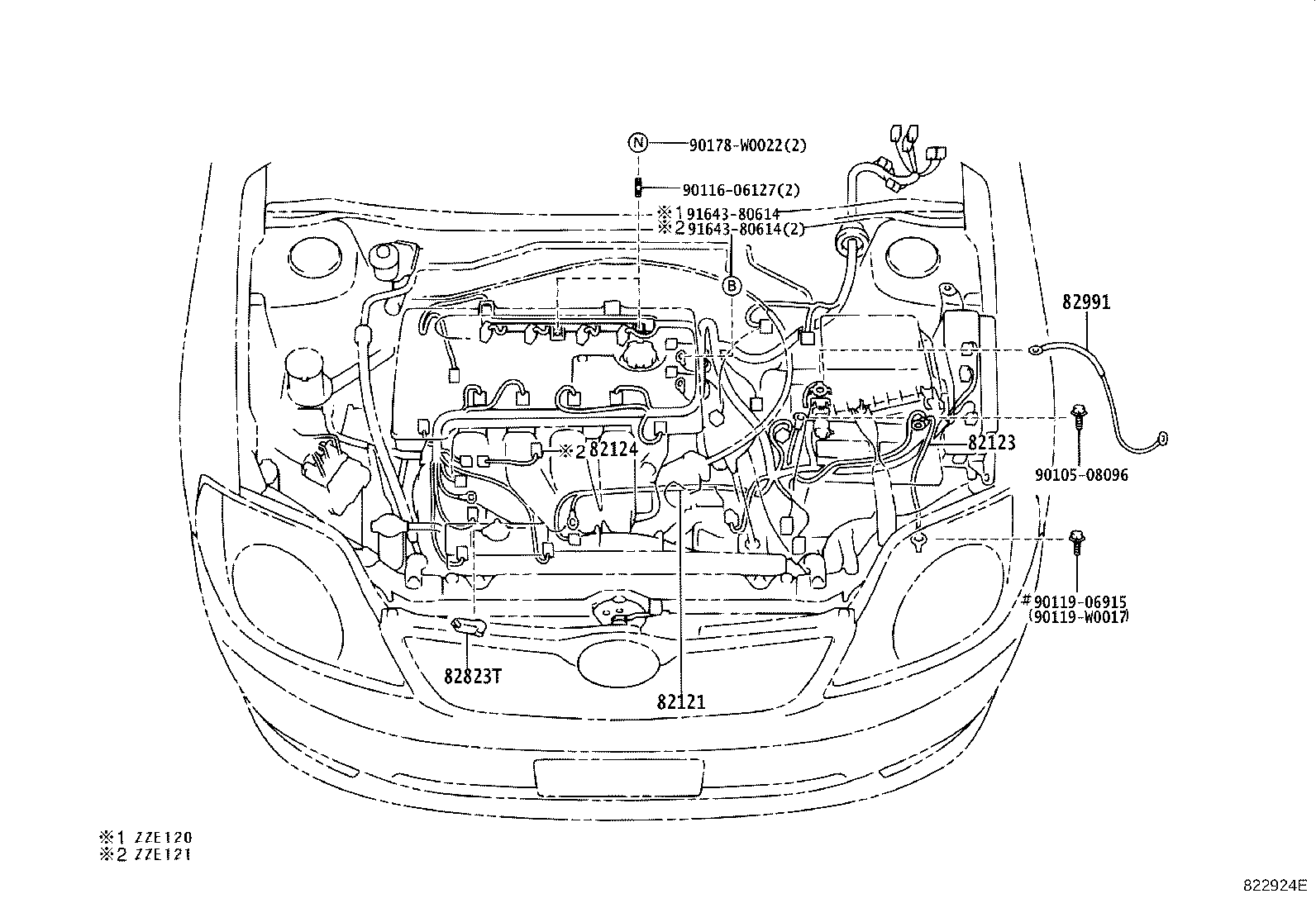

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-02070 |
ZZE12#..UKP..RHD |
1 | ||
| 82116-02071 |
ZZE12#..UKP..RHD |
1 | ||
| 82111-02L20 |
ZZE12#..UKP..RHD |
1 | ||
| 82111-02L30 |
ZZE12#..UKP..RHD W(VSC) |
1 | ||
| Common parts | ||||
| 90080-98274 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90182-W0004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 7(0201- )ZZE12#..UKP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02770 |
ZZE121..UKP..RHD..TERRA |
1 | ||
| 82121-02771 |
ZZE121..UKP..RHD..TERRA |
1 | ||
| 82121-02E30 |
ZZE121..UKP..RHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02220 |
ZZE12#..UKP |
1 | ||
| 82123-02220 |
ZZE12#..UKP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02060 |
ZZE121..UKP |
1 | ||
| 82124-02090 |
ZZE121..UKP |
1 | ||
| 82124-02060 |
ZZE121..UKP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82823-22050 |
CDE120,ZZE12#..UKP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| 82991-12070 |
ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| 90178-W0022 | ||||
| 91643-80614 | ||||
ILLUST NO. 4 OF 7(0201- )UKP..SED

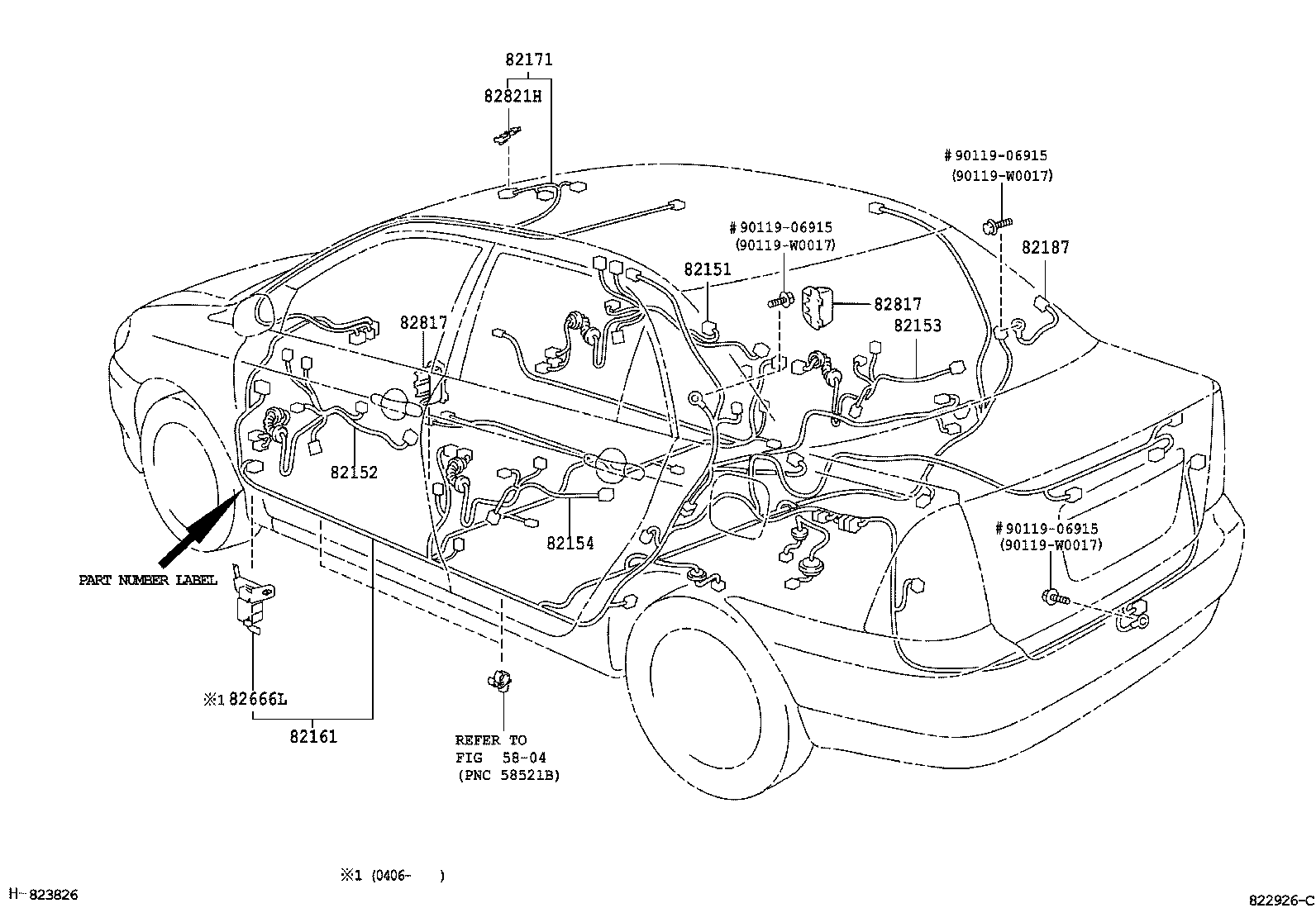

DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-02050 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82197-02030 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82197-02120 |
CDE120,ZZE12#..UKP..RHD..TERRA |
1 | ||
| 82151-02A90 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82197-02130 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82197-02120 |
NDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 82197-02050 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82197-02040 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82197-02040 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82151-02B00 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02820 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-02830 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-02810 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-02800 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02790 |
NDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 82152-02830 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-02820 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-02790 |
CDE120,ZZE12#..UKP..RHD..TERRA |
1 | ||
| 82152-02A80 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-02A90 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02230 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02250 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-02231 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02251 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-02240 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82153-02241 |
CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82153-02231 |
NDE120,ZZE12#..UKP..SED..TERRA |
1 | ||
| 82153-02261 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82153-02271 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153-02251 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82153-02241 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-02230 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02231 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82154-02221 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154-02231 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82153-02231 |
NDE120,ZZE12#..UKP..SED..TERRA |
1 | ||
| 82154-02221 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY) |
1 | ||
| 82154-02220 |
CDE120,ZZE12#..UKP..RHD..TERRA W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154-02211 |
CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82154-02210 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154-02211 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154-02241 |
CDE120,NDE120,ZZE12#..UKP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT & REAR) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02750 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02750 |
1 | ||
| 82161-02740 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02740 |
1 | ||
| 82161-02751 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02751 |
1 | ||
| 82161-02741 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02741 |
1 | ||
| 82161-0Z260 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-0Z260 |
1 | ||
| 82161-02752 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02752 |
1 | ||
| 82161-02742 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02742 |
1 | ||
| 82161-0Z261 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-0Z261 |
1 | ||
| 82161-02743 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02743 |
1 | ||
| 82161-0Z262 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-0Z262 |
1 | ||
| 82161-02753 |
CDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02753 |
1 | ||
| 82161-02F70 |
NDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02F70 |
1 | ||
| 82161-02F30 |
NDE120,ZZE12#..UKP..RHD..SED PART NUMBER LABEL=82161-02F30 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02390 |
CDE120,ZZE12#..UKP..RHD W(KEY LESS ENTRY) |
1 | ||
| 82171-02380 |
CDE120,ZZE12#..UKP..RHD..TERRA |
1 | ||
| 82171-02740 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 82171-02750 |
CDE120,NDE120,ZZE12#..UKP..RHD W(KEY LESS ENTRY) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02100 |
CDE120,ZZE12#..UKP..SED |
1 | ||
| 82187-02100 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 5 OF 7(0201- )UKP

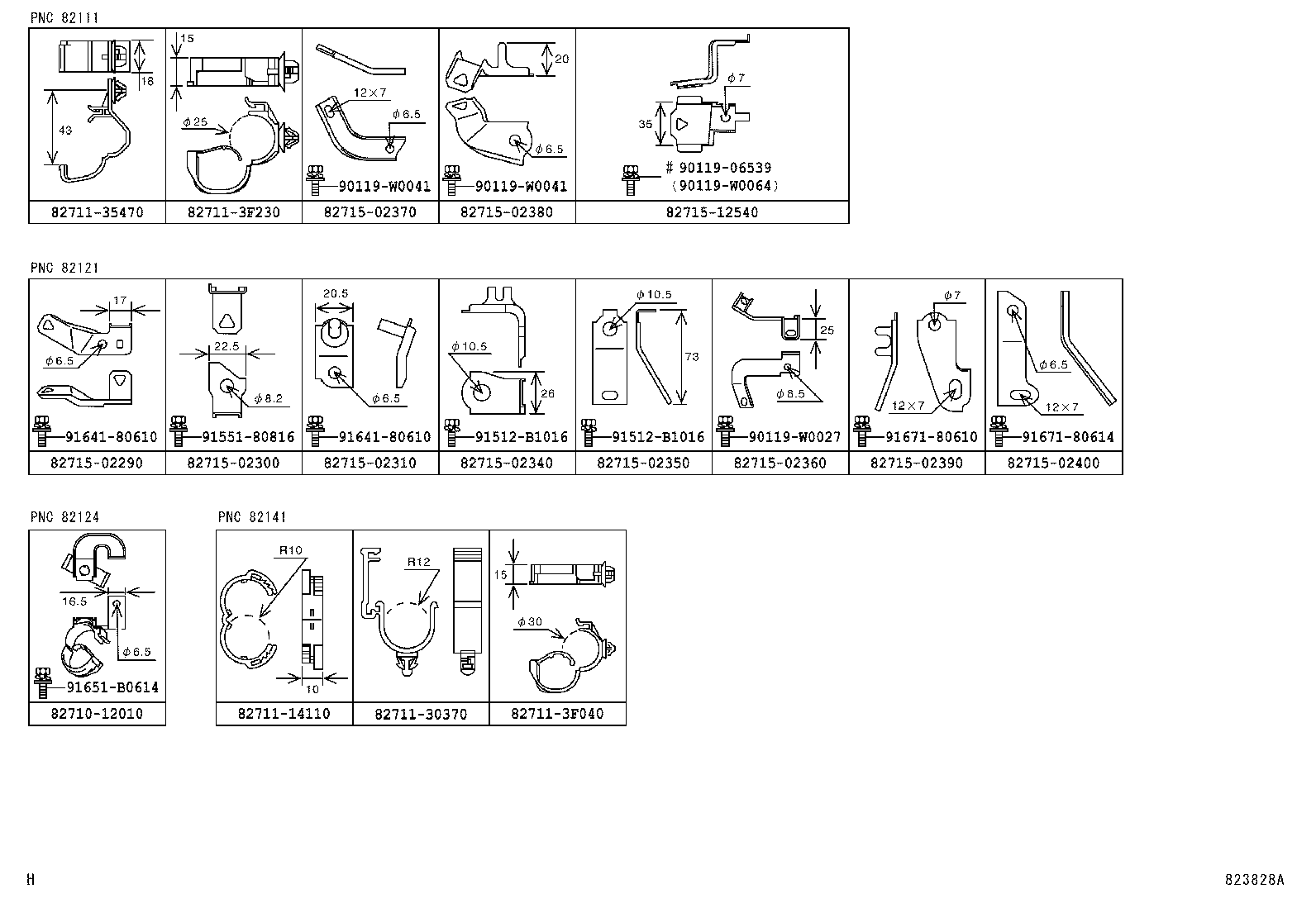

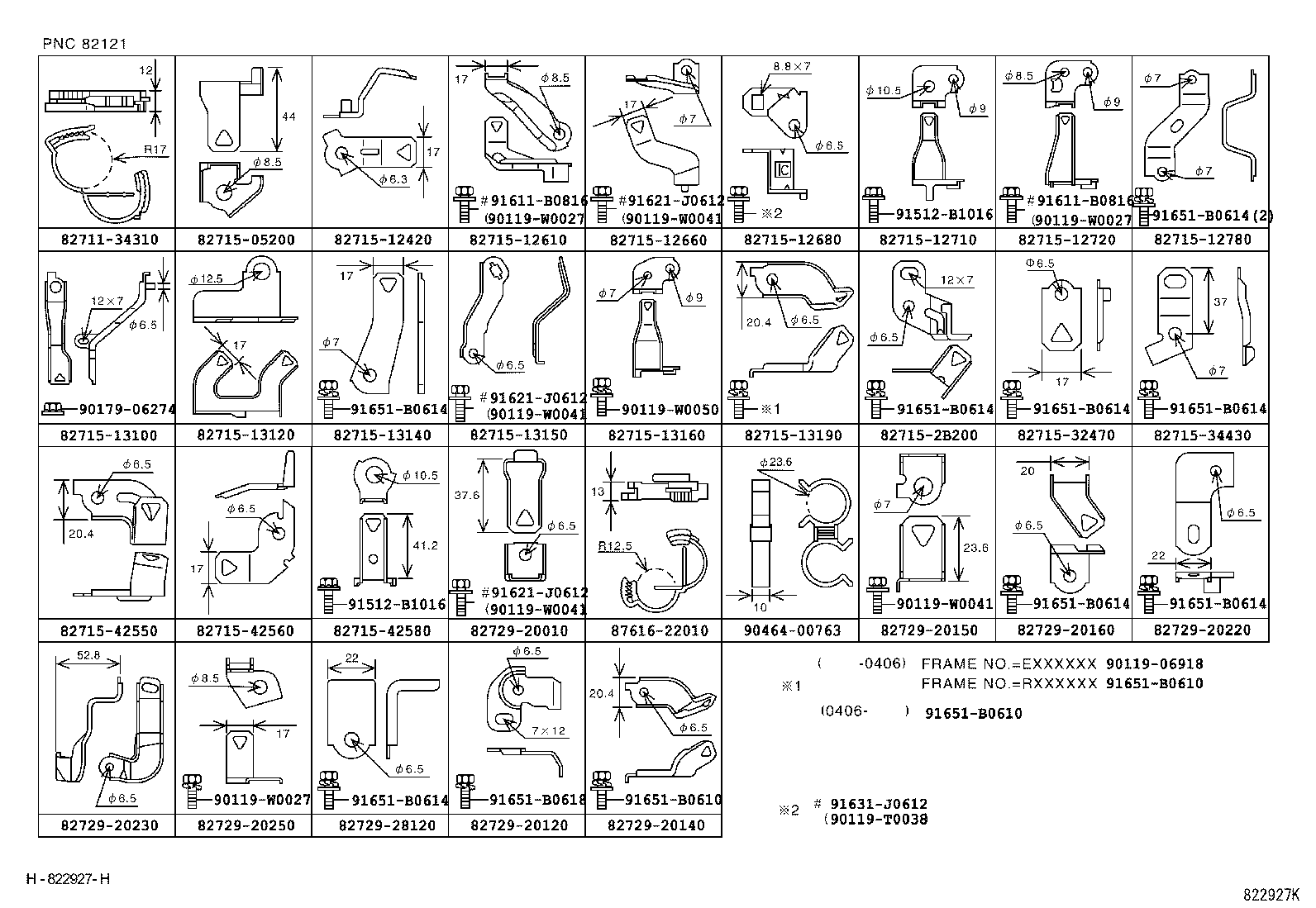

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82715-05200 | ||||
| 82715-12420 | ||||
| 82715-12610 | ||||
| 82715-12660 | ||||
| 82715-12680 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12780 | ||||
| 82715-13100 | ||||
| 82715-13120 | ||||
| 82715-13140 | ||||
| 82715-13150 | ||||
| 82715-13160 | ||||
| 82715-13190 | ||||
| 82715-2B200 | ||||
| 82715-32470 | ||||
| 82715-34430 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82729-20010 | ||||
| 82729-20120 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20160 | ||||
| 82729-20220 | ||||
| 82729-20230 | ||||
| 82729-20250 | ||||
| 82729-28120 | ||||
| 87616-22010 | ||||
| 90119-06918 | ||||
| 90119-T0038 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0050 | ||||
| 90179-06274 | ||||
| 90464-00763 | ||||
| 91512-B1016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||

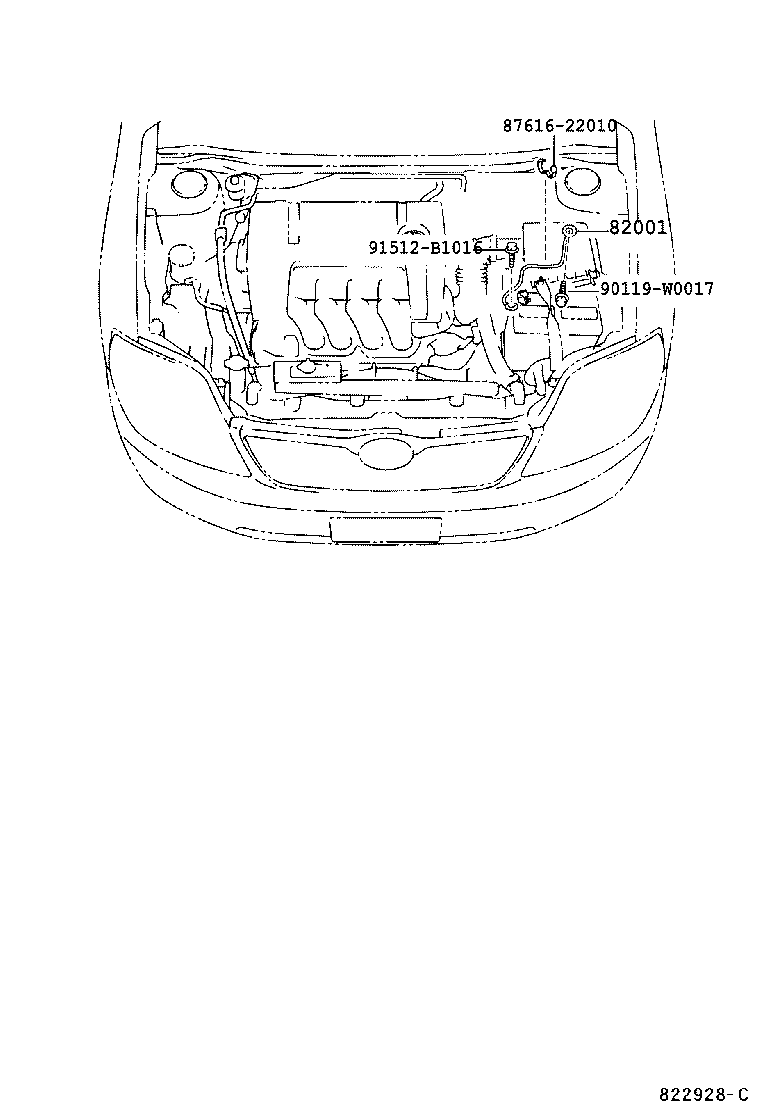

ILLUST NO. 6 OF 7(0201- )ZZE12#..UKP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90080-82043 |
ZZE12#..UKP |
1 | ||
| 90080-82043 |
ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90119-W0017 | ||||
| 91512-B1016 | ||||
ILLUST NO. 5 OF 7(0201- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-12010 | ||||
| 82711-14110 | ||||
| 82711-30370 | ||||
| 82711-35470 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02310 | ||||
| 82715-02340 | ||||
| 82715-02350 | ||||
| 82715-02360 | ||||
| 82715-02370 | ||||
| 82715-02380 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12540 | ||||
| 90119-06539 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0064 | ||||
| 91512-B1016 | ||||
| 91551-80816 | ||||
| 91641-80610 | ||||
| 91651-B0614 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||
ILLUST NO. 7 OF 7(0201- )UKP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90080-98228 | ||||
| 90080-98274 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10957 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
