Toyota Corolla sed/wg (ukp) ZZE121 REAR DOOR PANEL & GLASS

ZZE121R-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

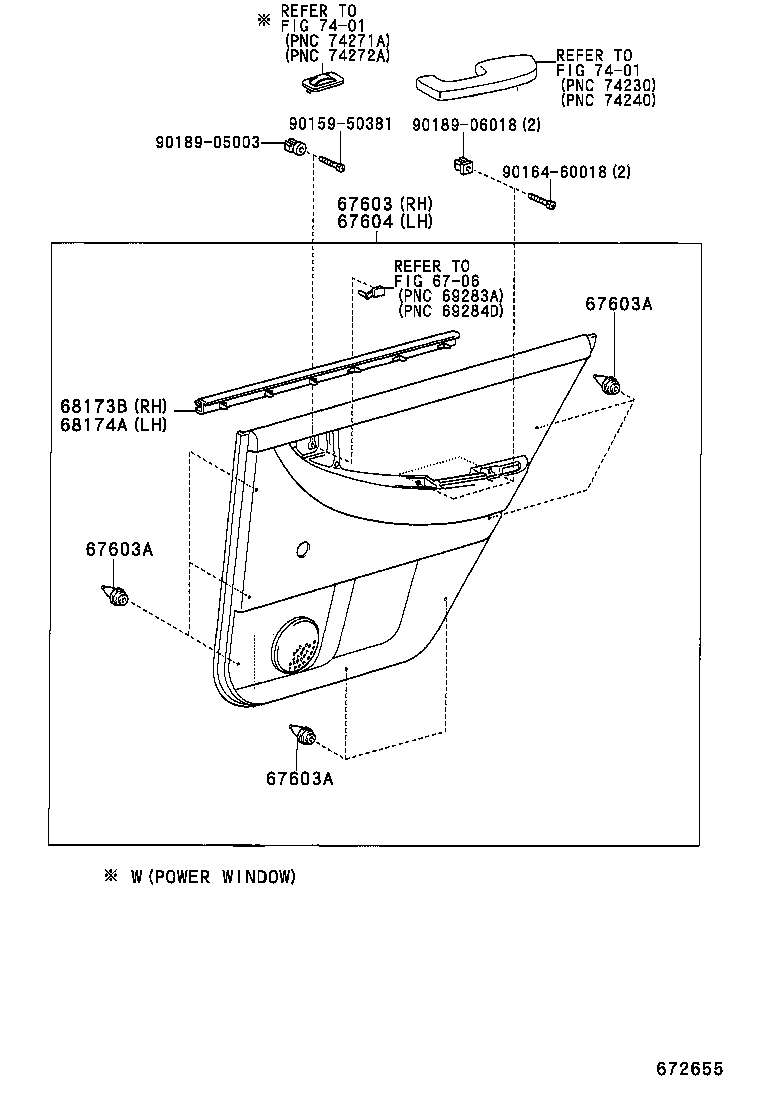

ILLUST NO. 1 OF 2(0201- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-02760B1	CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	01/2002 - 06/2004	1
67630-02B10B0	CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67630-02A90B0	CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	14
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	14
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	14
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	14
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	14
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	14
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	14
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	14
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	14
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	14
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	14
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-02760B1	CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	01/2002 - 06/2004	1
67640-02B10B0	CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67640-02A90B0	CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	06/2004 - 12/2999	1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-12270	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
68173-12290	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
68173-12290	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-12150	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
68174-12130	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
68174-12150	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
Common parts
90159-50381
90164-60018
90189-05003
90189-06018
Linked diagrams
6706
7401

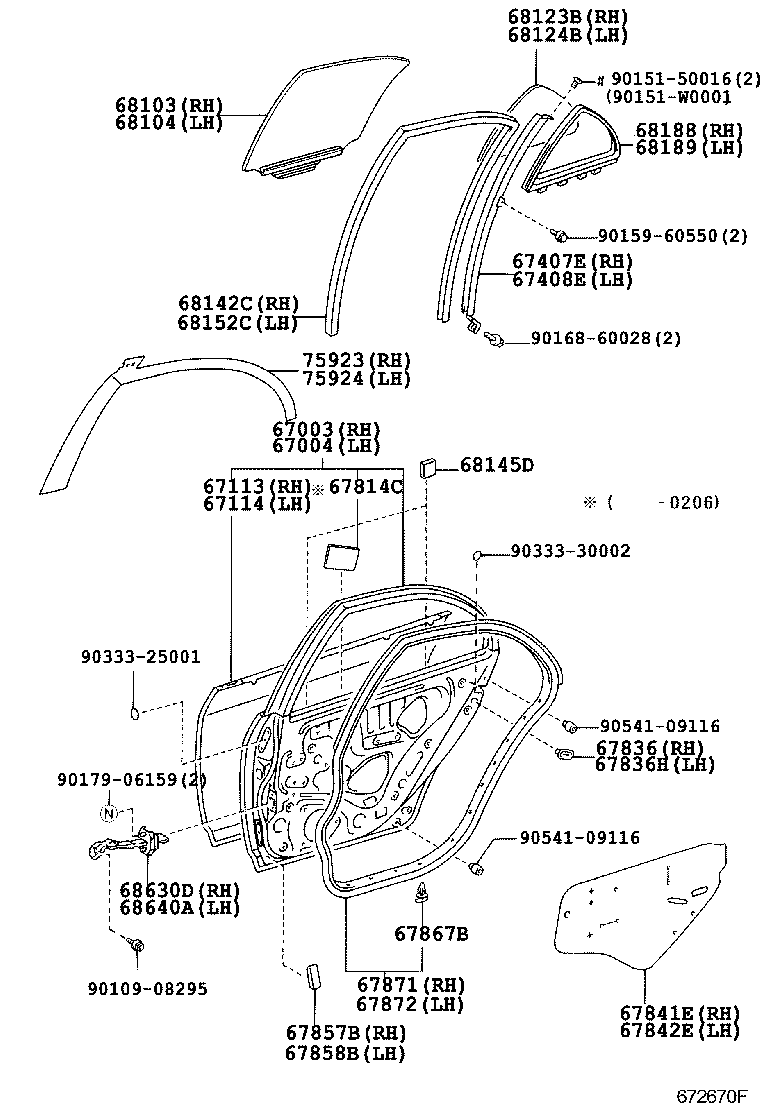

ILLUST NO. 2 OF 2(0201- )UKP..SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-02080	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
67003-02080	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-02080	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67004-02080	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-02060	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67113-02060	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-02060	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67114-02060	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-12260	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
67407-12260	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-12260	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
67408-12260	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67814C - PACKING, DOOR PROTECTOR
67817-47010	CDE120,ZZE12#..UKP	01/2002 - 06/2002	2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67836-02020	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
67836-12040	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-02020	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
67836-12040	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67836-12040	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-02070	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67841-02070	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67842-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67857-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67858-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-02020	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	32
67868-02020	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 03/2005	32
67868-02020	CDE120,NDE120,ZZE12#..UKP..SED	04/2005 - 12/2999	32
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-02080	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67871-02080	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 03/2005	1
67871-02081	CDE120,NDE120,ZZE12#..UKP..SED	04/2005 - 12/2999	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-02080	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 03/2005	1
67872-02080	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
67872-02081	CDE120,NDE120,ZZE12#..UKP..SED	04/2005 - 12/2999	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-02070	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	01/2002 - 04/2004	1
68103-12720	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	04/2004 - 06/2004	1
68103-12720	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	06/2004 - 12/2999	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-02070	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	01/2002 - 04/2004	1
68104-12730	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	06/2004 - 12/2999	1
68104-12730	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	04/2004 - 06/2004	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-02060	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	01/2002 - 04/2004	1
68123-02060	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN,(L)	06/2004 - 12/2999	1
68123-12760	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN,(J)	06/2004 - 12/2999	1
68123-12760	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	04/2004 - 06/2004	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-12760	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN,(J)	06/2004 - 12/2999	1
68124-02060	CDE120,NDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN,(L)	06/2004 - 12/2999	1
68124-02060	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	01/2002 - 04/2004	1
68124-12760	CDE120,ZZE12#..UKP..SED *TT,T=3.1,GREEN	04/2004 - 06/2004	1
68142C - RUN, REAR DOOR GLASS, RH
68142-02070	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
68142-02070	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
68145D - CUSHION, REAR DOOR WINDOW
69759-12110	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	4
69759-12110	CDE120,ZZE12#..UKP	01/2002 - 06/2004	4
68152C - RUN, REAR DOOR GLASS, LH
68152-02070	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
68152-02070	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-02070	CDE120,ZZE12#..UKP..SED (L)	01/2003 - 06/2004	1
68188-12300	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
68188-02070	CDE120,NDE120,ZZE12#..UKP..SED (L)	06/2004 - 12/2999	1
68188-12300	CDE120,NDE120,ZZE12#..UKP..SED (J)	06/2004 - 12/2999	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-02070	CDE120,NDE120,ZZE12#..UKP..SED (L)	06/2004 - 12/2999	1
68189-12300	CDE120,NDE120,ZZE12#..UKP..SED (J)	06/2004 - 12/2999	1
68189-12300	CDE120,ZZE12#..UKP..SED	01/2002 - 06/2004	1
68189-02070	CDE120,ZZE12#..UKP..SED (L)	01/2003 - 06/2004	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-12090	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
68630-12090	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-12050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
68640-12050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-02031	CDE120,ZZE12#..UKP..SED (L)	01/2002 - 06/2004	1
75923-12031	CDE120,ZZE12#..UKP..SED (J)	01/2002 - 06/2004	1
75923-02031	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-02031	CDE120,ZZE12#..UKP..SED (L)	01/2002 - 06/2004	1
75924-02031	CDE120,NDE120,ZZE12#..UKP..SED	06/2004 - 12/2999	1
75924-12031	CDE120,ZZE12#..UKP..SED (J)	01/2002 - 06/2004	1
Common parts
90109-08295
90151-50016
90151-W0001
90159-60550
90168-60028
90179-06159
90333-25001
90333-30002
90541-09116
