ZZE121R-DEMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201- )UKP..RHD..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-33041 |
CDE120,ZZE12#..UKP..SED |
1 | ||
| 64127-33041 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-02121 |
CDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 64401-02120 |
CDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 64401-02121 |
NDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH | ||||
| 64455-12010 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64455-12010 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH | ||||
| 64456-12010 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64456-12010 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-02090 |
CDE120,ZZE12#..UKP..SED |
1 | ||
| 64461-02090 |
CDE120,ZZE12#..UKP..SED..(DCR,HTWC) |
1 | ||
| 64461-02091 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64461-02091 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-02040 |
CDE120,ZZE12#..UKP..SED |
1 | ||
| 64503-02040 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-02040 |
CDE120,ZZE12#..UKP..SED |
1 | ||
| 64503-02040 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-02060 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64531-02060 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-02060 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64532-02060 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
CDE120,ZZE12#..UKP..SED |
2 | ||
| 64559-12040 |
CDE120,NDE120,ZZE12#..UKP..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
CDE120,ZZE12#..UKP..SED |
2 | ||
| 64559-12040 |
CDE120,NDE120,ZZE12#..UKP..SED |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-02080 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64607-02080 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12350 |
CDE120,ZZE12#..UKP..SED..(DCR,HTWC) |
1 | ||
| 64610-02080 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 64610-12350 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC (J) |
1 | ||
| 64610-02080 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC (L) |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-12070 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 64621-12070 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| 69553B - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER | ||||
| 69553-12010 |
ZZE12#..UKP..RHD..SED..TERRA |
1 | ||
| 69553-12010 |
NDE120,ZZE12#..UKP..RHD..SED |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
ZZE12#..UKP..SED..5F;ZZE121..UKP..LHD..SED..4FC |
1 | ||
| 69759-24050 |
CDE120,NDE120,ZZE12#..UKP..SED |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E600 | ||||
| 90105-06168 | ||||
| 90119-06356 | ||||
| 90119-06779 | ||||
| 90159-60303 | ||||
| 90189-06066 | ||||
| 90469-01009 | ||||
| 90959-01369 | ||||
| 91631-B0630 | ||||

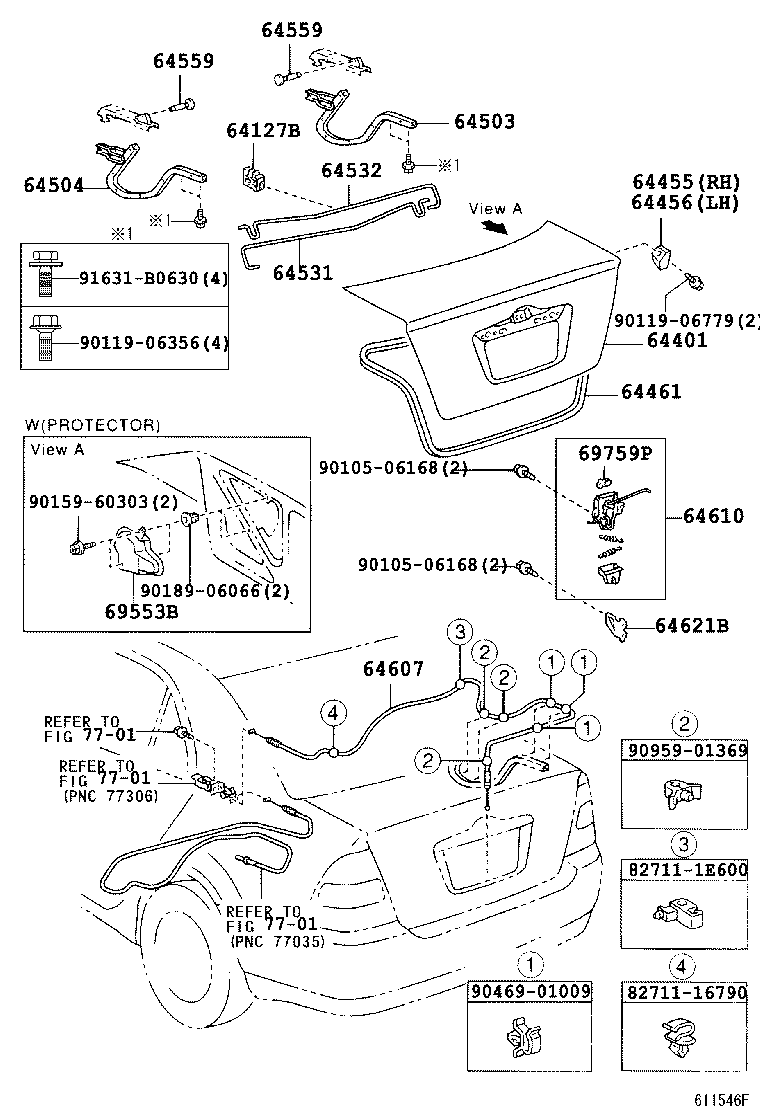

| Linked diagrams | ||||
| 7701 | ||||
