ZZE121R-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

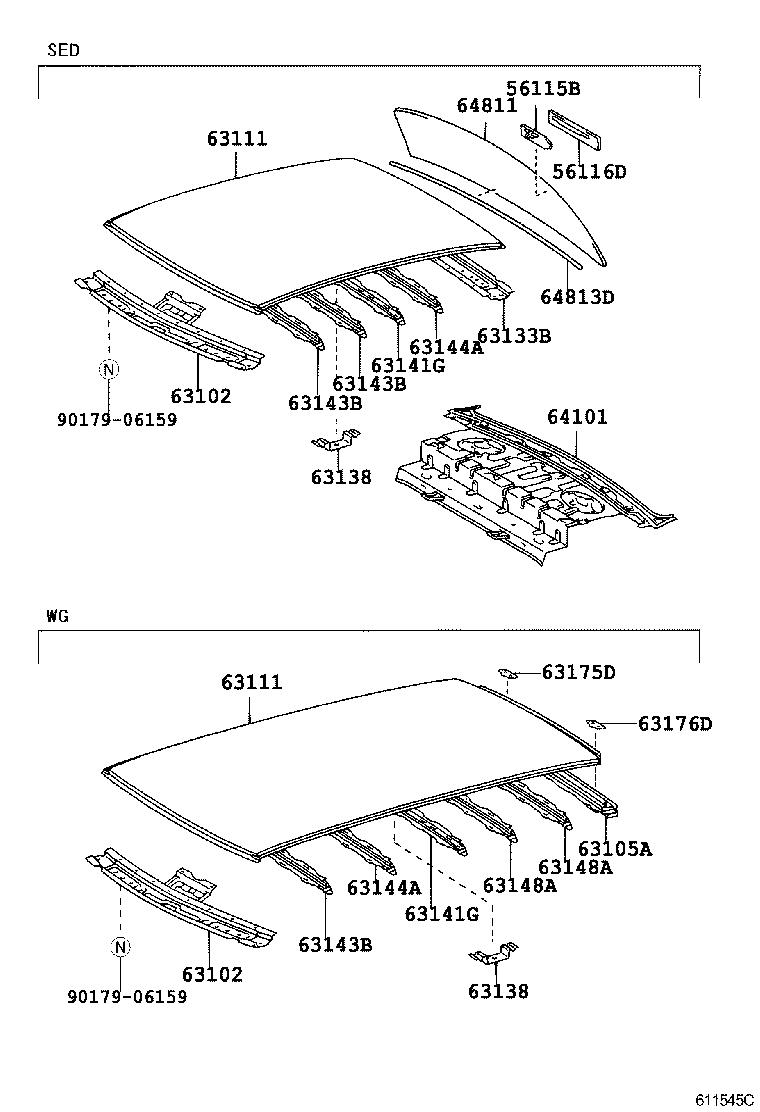

ILLUST NO. 1 OF 2(0201- )UKP

Click highlighted areas on diagram

diagram 56115B 56116D 63102 63102 63105A 63111 63111 63133B 63138 63138 63141G 63141G 63143B 63143B 63143B 63144A 63144A 63148A 63148A 63175D 63176D 64101 64811 64813D 9017906159 9017906159
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-22010

CDE120,ZZE12#..UKP..SED

 2
56115-22010

CDE120,NDE120,ZZE12#..UKP..SED

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

CDE120,ZZE12#..UKP..SED

 2
56116-22050

CDE120,NDE120,ZZE12#..UKP..SED

 2
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-02050

CDE120,ZZE12#..UKP

 1
63102-02050

CDE120,NDE120,ZZE12#..UKP

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-02050

CDE120,ZZE12#..UKP

 1
63102-02050

CDE120,NDE120,ZZE12#..UKP

 1
63111 - PANEL, ROOF
63111-02110

CDE120,NDE120,ZZE12#..UKP..SED

 1
63111-02110

CDE120,ZZE12#..UKP..SED

 1
63111 - PANEL, ROOF
63111-02110

CDE120,NDE120,ZZE12#..UKP..SED

 1
63111-02110

CDE120,ZZE12#..UKP..SED

 1
63133B - FRAME, BACK WINDOW
63133-12280

CDE120,NDE120,ZZE12#..UKP..SED

 1
63133-12280

CDE120,ZZE12#..UKP..SED

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

CDE120,NDE120,ZZE12#..UKP

 2
63138-12011

CDE120,ZZE12#..UKP

 2
63138 - BRACKET, DOME LAMP, NO.2
63138-12011

CDE120,NDE120,ZZE12#..UKP

 2
63138-12011

CDE120,ZZE12#..UKP

 2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-12260

CDE120,ZZE12#..UKP..SED

 1
63141-12260

CDE120,NDE120,ZZE12#..UKP..SED

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-12260

CDE120,ZZE12#..UKP..SED

 1
63141-12260

CDE120,NDE120,ZZE12#..UKP..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CDE120,ZZE12#..UKP..SED

 2
63143-12100

CDE120,NDE120,ZZE12#..UKP..SED

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CDE120,ZZE12#..UKP..SED

 2
63143-12100

CDE120,NDE120,ZZE12#..UKP..SED

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CDE120,ZZE12#..UKP..SED

 2
63143-12100

CDE120,NDE120,ZZE12#..UKP..SED

 2
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12080

CDE120,ZZE12#..UKP..SED

 1
63144-12080

CDE120,NDE120,ZZE12#..UKP..SED

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12080

CDE120,ZZE12#..UKP..SED

 1
63144-12080

CDE120,NDE120,ZZE12#..UKP..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-02090

CDE120,ZZE12#..UKP..SED

W(6:4 SPRIT REAR SEAT)

 1
64101-02080

CDE120,ZZE12#..UKP..SED..TERRA

 1
64101-02090

CDE120,NDE120,ZZE12#..UKP..SED

W(6:4 SPRIT REAR SEAT)

 1
64101-02080

NDE120,ZZE12#..UKP..SED..TERRA

 1
64811 - GLASS, BACK WINDOW
64811-12A20

CDE120,ZZE12#..UKP..SED

*EHT,T=3.1,GREEN,(J)

 1
64811-02180

CDE120,ZZE12#..UKP..SED

*EHTT,T=3.1,GREEN,(L)

 1
64811-02180

CDE120,NDE120,ZZE12#..UKP..SED

*EHTT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-12240

CDE120,NDE120,ZZE12#..UKP..SED

 1
56117-12240

CDE120,ZZE12#..UKP..SED

 1
Common parts
90179-06159
