ZZE121R-DEMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201- )UKP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

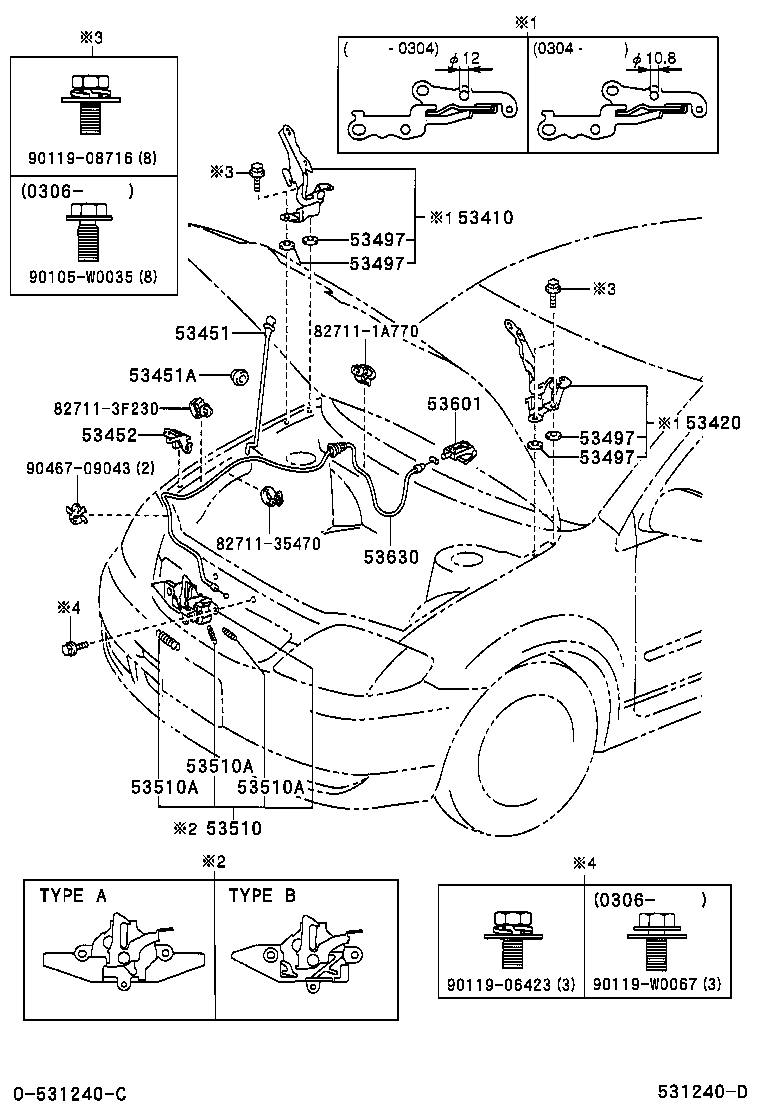

| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 53410-02041 |
CDE120,ZZE12#..UKP |
1 | ||
| 53410-02041 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-02041 |
CDE120,ZZE12#..UKP |
1 | ||
| 53420-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 53420-02041 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53440-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15034 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 90480-15034 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53452-12040 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,NDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,NDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,NDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53497-42010 |
CDE120,NDE120,ZZE12#..UKP T=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12690 |
CDE120,ZZE12#..UKP..RHD..(DCR,HTWC) |
1 | ||
| 53510-02170 |
ZZE12#..UKP..RHD..TERRA TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53510-12780 |
ZZE12#..UKP..RHD..TERRA TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53510-02170 |
CDE120,NDE120,ZZE12#..UKP..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.2,CW=8.5 |
1 | ||
| 90506-09052 |
CDE120,ZZE12#..UKP..RHD..(DCR,HTWC) WD=0.9,CW=20.75 |
1 | ||
| 90080-50398 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=20.75,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-12063 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50399 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=13,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50365 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-W0001 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=13 |
1 | ||
| 90506-09055 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=21,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50399 |
CDE120,NDE120,ZZE12#..UKP WD=1.2,CW=8.5 |
1 | ||
| 90506-W0001 |
CDE120,NDE120,ZZE12#..UKP WD=1.8,CW=16 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.2,CW=8.5 |
1 | ||
| 90506-09052 |
CDE120,ZZE12#..UKP..RHD..(DCR,HTWC) WD=0.9,CW=20.75 |
1 | ||
| 90080-50398 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=20.75,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-12063 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50399 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=13,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50365 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-W0001 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=13 |
1 | ||
| 90080-50399 |
CDE120,NDE120,ZZE12#..UKP WD=1.2,CW=8.5 |
1 | ||
| 90506-09055 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=21,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90506-W0001 |
CDE120,NDE120,ZZE12#..UKP WD=1.8,CW=16 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.2,CW=8.5 |
1 | ||
| 90506-09052 |
CDE120,ZZE12#..UKP..RHD..(DCR,HTWC) WD=0.9,CW=20.75 |
1 | ||
| 90080-50398 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=20.75,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-12063 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50399 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.2,CW=8.5,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=13,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50365 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-W0001 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=1.8,CW=16,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90506-18067 |
CDE120,ZZE12#..UKP..(DCR,HTWC) WD=1.8,CW=13 |
1 | ||
| 90506-09055 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA WD=0.9,CW=21,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-50399 |
CDE120,NDE120,ZZE12#..UKP WD=1.2,CW=8.5 |
1 | ||
| 90506-W0001 |
CDE120,NDE120,ZZE12#..UKP WD=1.8,CW=16 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-05030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 53601-05030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 53601-52010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 53601-52010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12510 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (J) |
1 | ||
| 53630-02100 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53630-12510 |
CDE120,ZZE12#..UKP..(DCR,HTWC) |
1 | ||
| 53630-02100 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (L) |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 90105-W0035 | ||||
| 90119-06423 | ||||
| 90119-08716 | ||||
| 90119-W0067 | ||||
| 90467-09043 | ||||
