ZZE121R-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )ZZE12#..UKP..RHD

Click highlighted areas on diagram

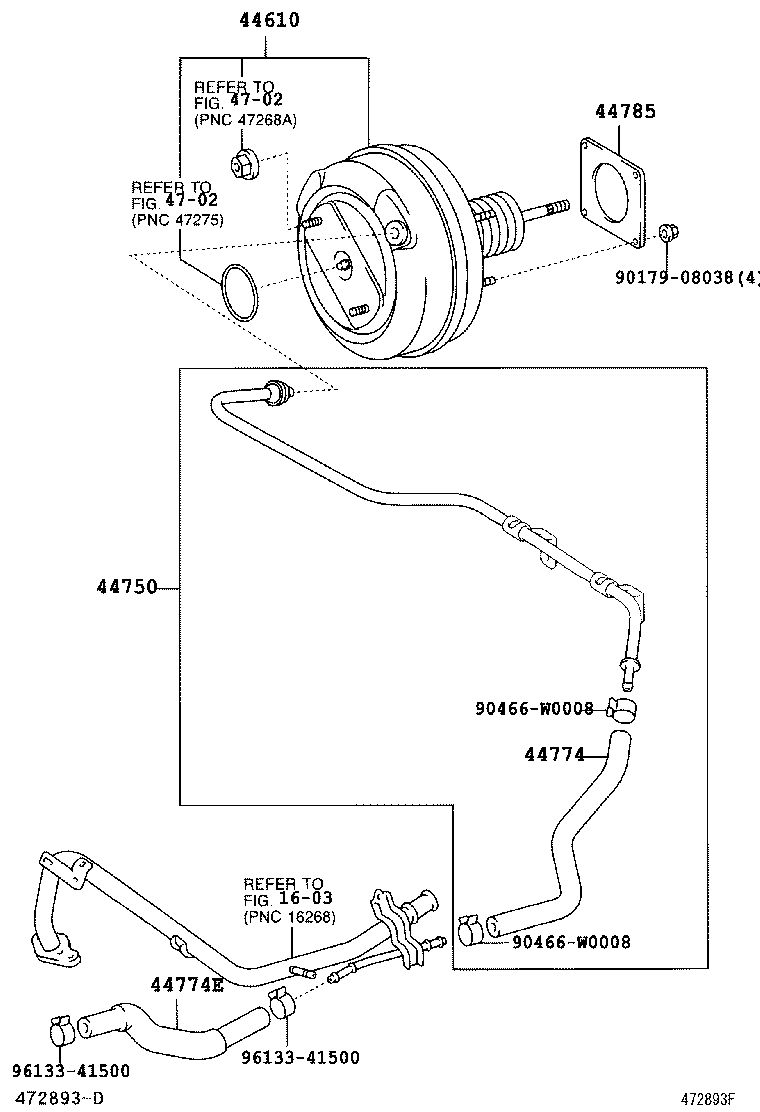

diagram 1603 44610 44750 44774 44774E 44785 4702 4702 9017908038 90466W0008 90466W0008 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09070

ZZE12#..UKP..RHD

 1
44610-09070

ZZE12#..UKP..RHD

 1
44610-09380

ZZE12#..UKP..RHD

 1
44750 - HOSE ASSY, VACUUM
44750-02160

ZZE12#..UKP..RHD

 1
44750-02160

ZZE12#..UKP..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12420

ZZE12#..UKP..RHD

 1
44774-12420

ZZE12#..UKP..RHD

 1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-12470

ZZE12#..UKP

 1
44774-12470

ZZE12#..UKP

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

CDE120,ZZE12#..UKP

 1
44785-20020

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
90179-08038
90466-W0008
96133-41500
Linked diagrams
1603
4702
