ZZE121R-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )ZZE12#..UKP..5F

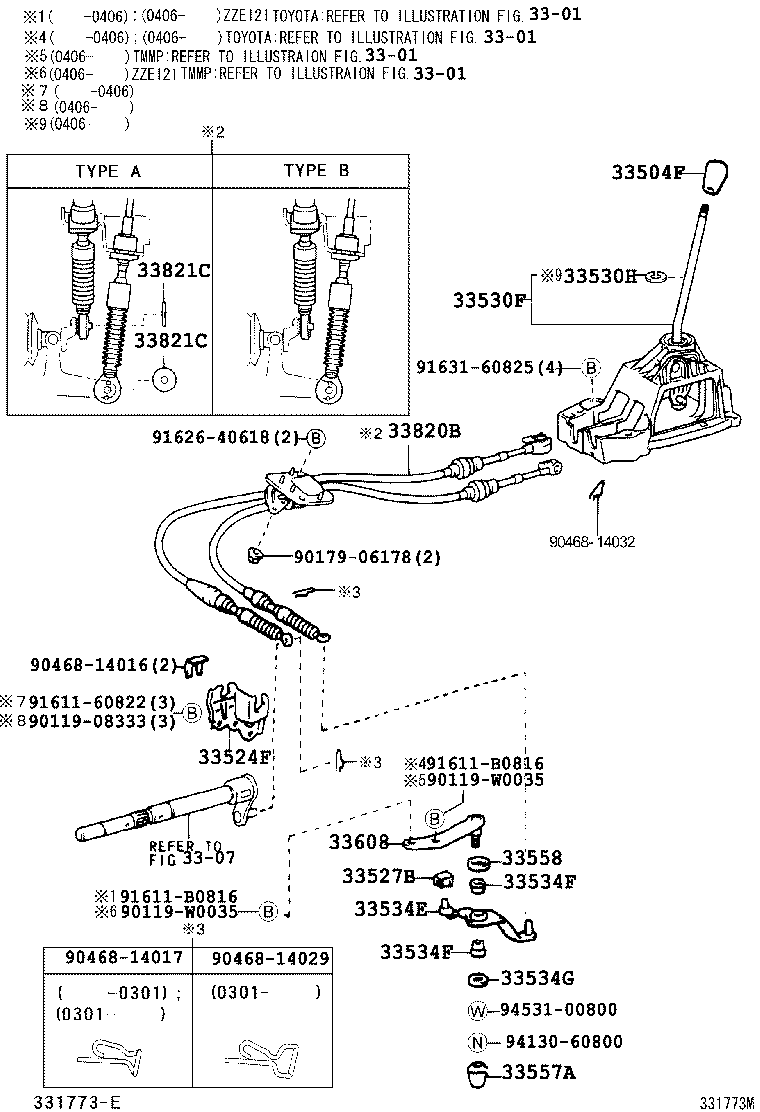

Click highlighted areas on diagram

diagram 3301 3301 3301 3301 3307 33504F 33524F 33527B 33530F 33530H 33534E 33534F 33534F 33534G 33557A 33558 33608 33820B 33821C 33821C 9011908333 90119W0035 90119W0035 9017906178 9046814016 9046814017 9046814029 9046814032 9161160822 91611B0816 91611B0816 9162640618 9163160825 9413060800 9453100800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-13010B0

CDE120,ZZE12#..UKP..5F..TERRA

DK.GRAY,TRIM1#

 1
33504-02030B0

CDE120,ZZE12#..UKP..5F..TERRA

DK.GRAY,TRIM1#,(L)

 1
33504-02090B0

CDE120,NDE120,ZZE12#..UKP..5F..TERRA

LEATHER,DK.GRAY,TRIM1#

 1
33504-02030B0

CDE120,NDE120,ZZE12#..UKP..5F..TERRA

DK.GRAY,TRIM1#

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-20040

ZZE12#..UKP..5F

 1
33524-42020

ZZE12#..UKP..5F

 1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010

CDE120,ZZE12#..UKP..5F

 1
33557-33010

CDE120,NDE120,ZZE12#..UKP..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-02050

CDE120,ZZE12#..UKP..RHD..TERRA

 1
33530-02190

CDE120,NDE120,ZZE12#..UKP..RHD

 1
33530H - RING, SNAP (FOR SHIFT LEVER)
3352A-05010

CDE120,NDE120,ZZE12#..UKP..5F

 1
33534E - CRANK, SELECTING BELL, NO.2
33534-42010

ZZE12#..UKP..5F

 1
33534-42010

ZZE12#..UKP..5F

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

CDE120,ZZE12#..UKP..5F

 2
90386-12022

CDE120,NDE120,ZZE12#..UKP..5F

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

CDE120,ZZE12#..UKP..5F

 2
90386-12022

CDE120,NDE120,ZZE12#..UKP..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

CDE120,ZZE12#..UKP..5F

 1
90201-08028

CDE120,NDE120,ZZE12#..UKP..5F

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

CDE120,NDE120,ZZE12#..UKP..5F

 1
33557-32010

CDE120,ZZE12#..UKP..5F

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

CDE120,ZZE12#..UKP..5F

 1
33558-10030

CDE120,NDE120,ZZE12#..UKP..5F

 1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-42010

ZZE121..UKP..5F

 1
33608-42010

ZZE121..UKP..5F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02320

ZZE12#..UKP..5F

TYPE A:REFER ILLUST.

 1
33820-1A190

ZZE12#..UKP..5F

TYPE B:REFER ILLUST.

 1
33820-02223

ZZE12#..UKP..5F

TYPE A:REFER TO ILLUSTRATION,FRAME NO.=RXXXXXX

 1
33820-02322

ZZE12#..UKP..5F

TYPE A:REFER TO ILLUSTRATION,FRAME NO.=EXXXXXX

 1
33820-02430

ZZE12#..UKP..5F

 1
33820-02323

ZZE12#..UKP..5F

TYPE A:REFER TO ILLUSTRATION,FRAME NO.=EXXXXXX

 1
33820-02222

ZZE12#..UKP..5F

TYPE A:REFER TO ILLUSTRATION,FRAME NO.=RXXXXXX

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

CDE120,ZZE12#..UKP..5F

OD=30

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

CDE120,ZZE12#..UKP..5F

OD=30

 2
Common parts
90119-08333
90119-W0035
90179-06178
90468-14016
90468-14017
90468-14029
90468-14032
91611-60822
91611-B0816
91626-40618
91631-60825
94130-60800
94531-00800
Linked diagrams
3301
3307
