ZZE121L-DWPDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
Production
Aug 2002
-
Jun 2004
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0201-0406)UKP

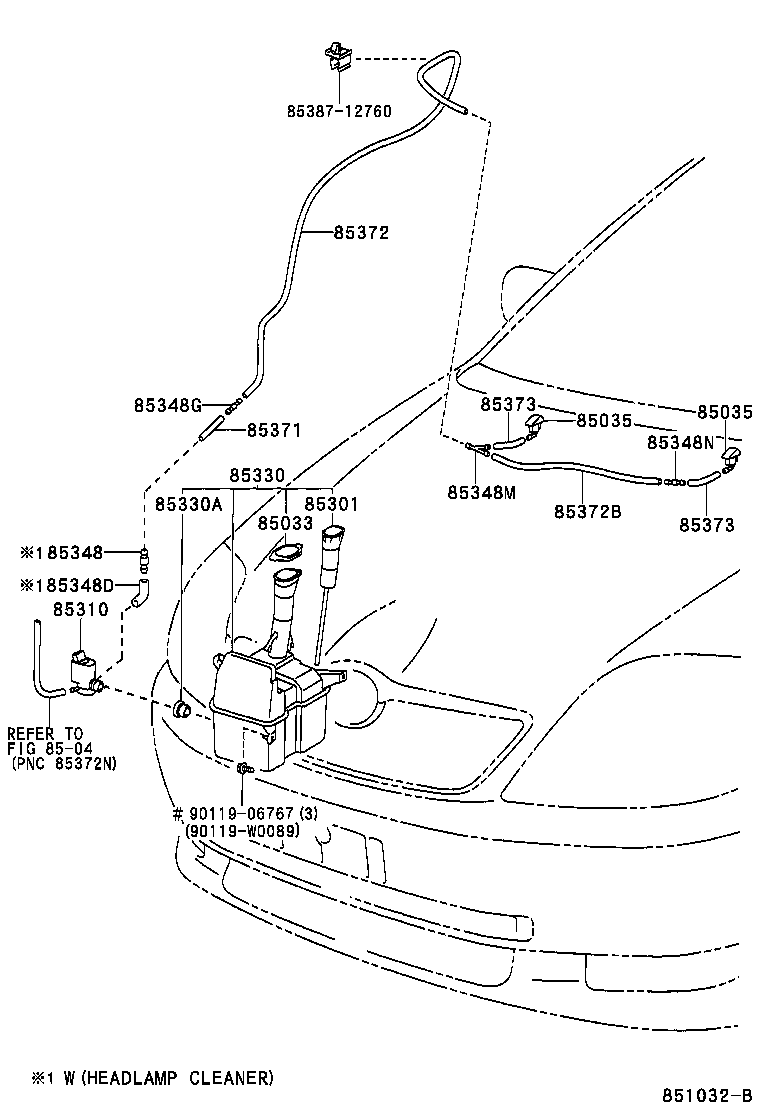

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85316-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 85316-42011 |
CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-44010 |
CDE120,ZZE12#..UKP |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-44010 |
CDE120,ZZE12#..UKP |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85318-13020 |
CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
1 | ||
| 85313-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-44010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 85315-13020 |
CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CDE120,ZZE12#..UKP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-16192 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
CDE120,ZZE12#..UKP |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-14390 |
CDE120,ZZE12#..UKP |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85349-89122 |
CDE120,ZZE12#..UKP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
CDE120,ZZE12#..UKP *H,L=50 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
CDE120,ZZE12#..UKP *H,L=1510 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
CDE120,ZZE12#..UKP *H,L=480 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
CDE120,ZZE12#..UKP *H,L=90 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
CDE120,ZZE12#..UKP *H,L=90 |
2 | ||
| Common parts | ||||
| 85387-12760 | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| Linked diagrams | ||||
| 8504 | ||||
