ZZE121L-DWPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Jun 2004

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0201-0406)UKP

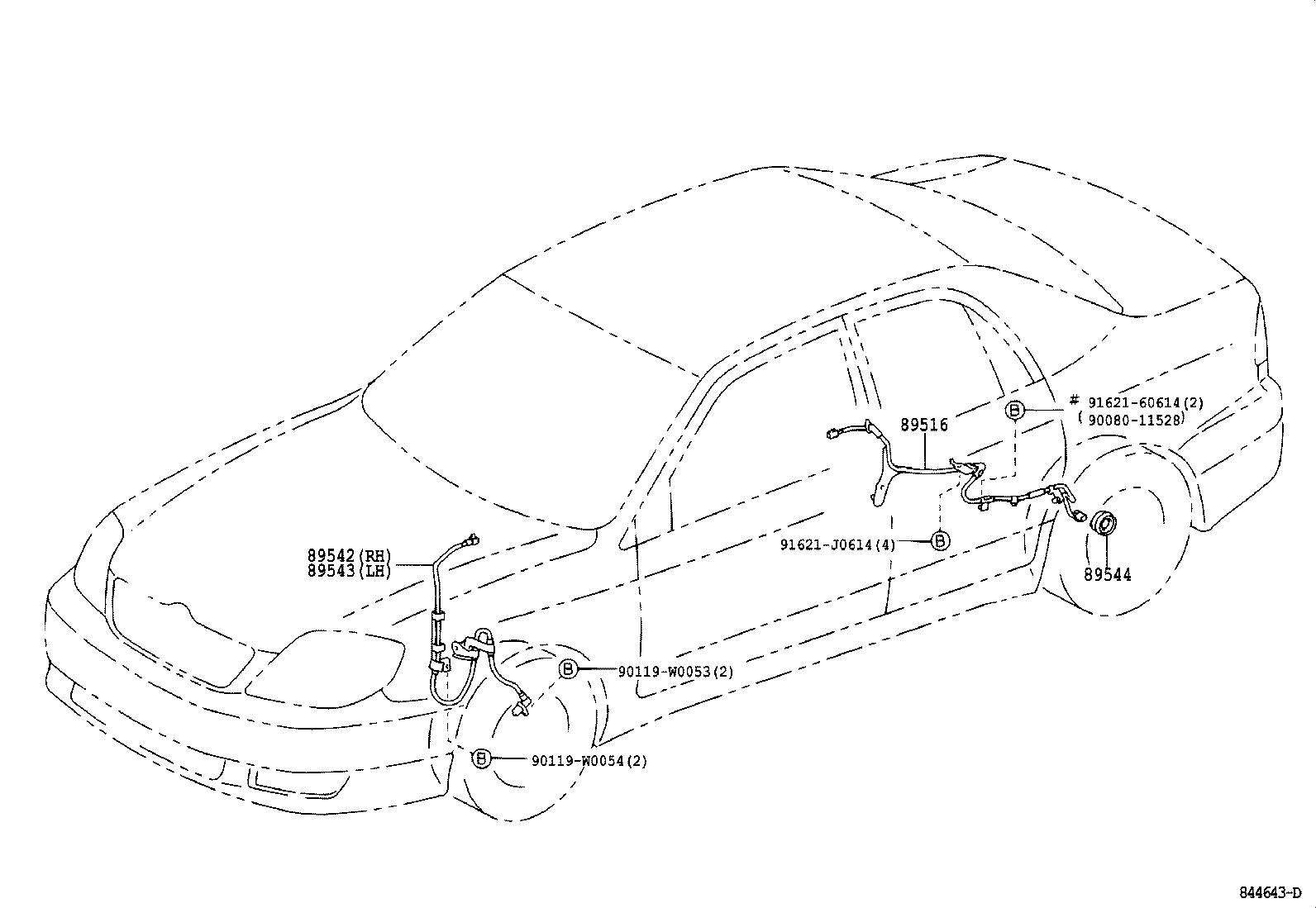

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
89516 - WIRE, SKID CONTROL SENSOR
89516-02030	CDE120,ZZE12#..UKP RH	01/2002 - 06/2004	1
89516-02040	CDE120,ZZE12#..UKP LH	01/2002 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-02040	CDE120,ZZE12#..UKP BOSCH	01/2002 - 06/2004	1
89542-12070	CDE120,ZZE12#..UKP DENSO	01/2002 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-02040	CDE120,ZZE12#..UKP BOSCH	01/2002 - 06/2004	1
89543-12070	CDE120,ZZE12#..UKP DENSO	01/2002 - 06/2004	1
89544 - SENSOR, SKID CONTROL
89544-02010	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
Common parts
90080-11528
90119-W0053
90119-W0054
91621-60614
91621-J0614
