ZZE121L-DWPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Jun 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

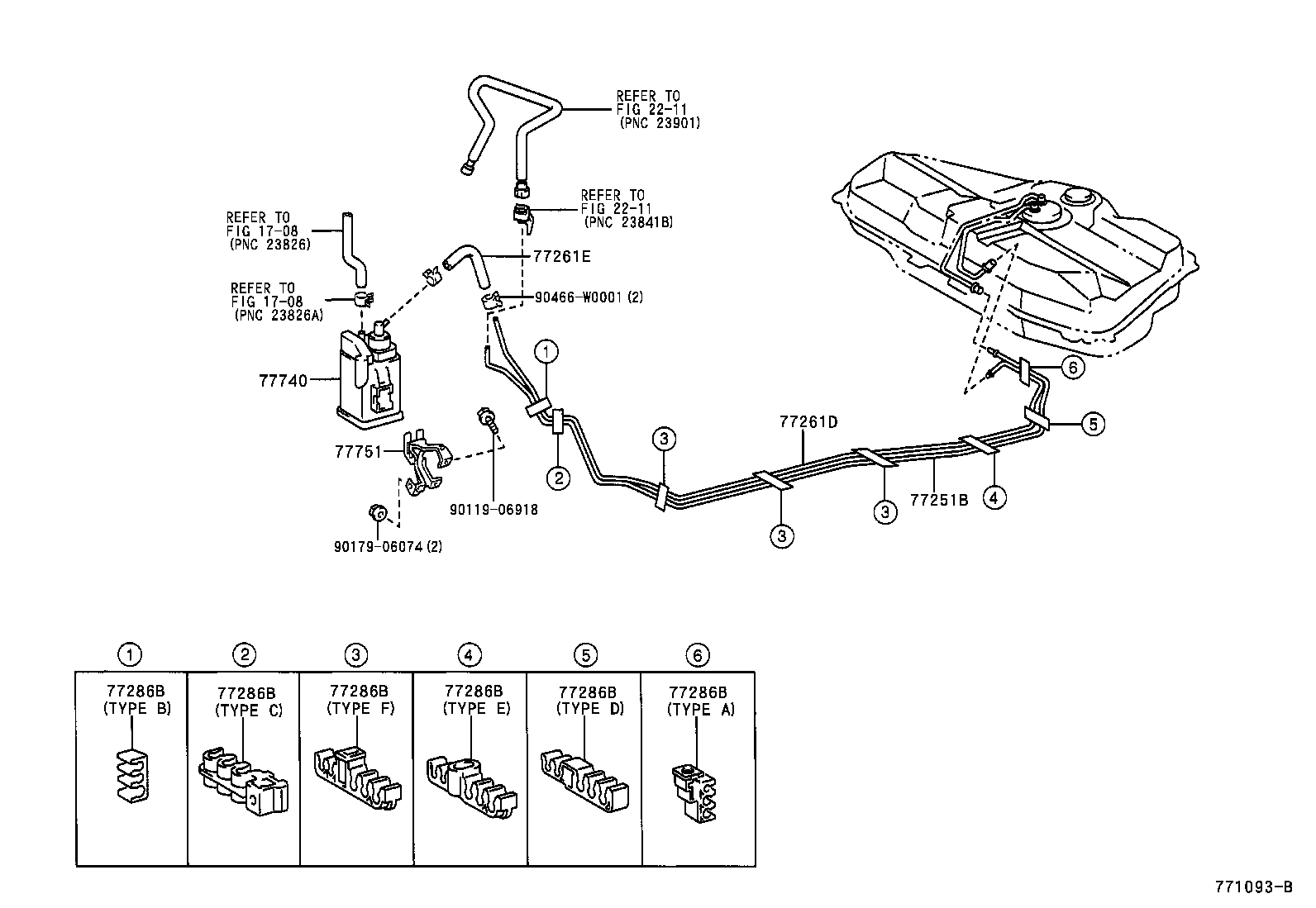

ILLUST NO. 2 OF 2(0201-0406)ZZE12#..UKP

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 77251B 77261D 77261E 77286B 77286B 77286B 77286B 77286B 77286B 77740 77751 9011906918 9017906074 90466W0001
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-02160

ZZE12#..UKP

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-02160

ZZE12#..UKP

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95337-06013

ZZE12#..UKP

L=130

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77298-20080

CDE120,ZZE12#..UKP

TYPE F

 3
77298-68010

CDE120,ZZE12#..UKP

TYPE F

 3
77298-12100

CDE120,ZZE12#..UKP

TYPE E

 1
77298-12060

CDE120,ZZE12#..UKP

TYPE D

 1
77286-47020

ZZE12#..UKP

TYPE B

 1
77286-12060

CDE120,ZZE12#..UKP

TYPE A

 1
77298-68020

CDE120,ZZE12#..UKP

TYPE E

 1
77298-68030

CDE120,ZZE12#..UKP

TYPE D

 1
77289-68020

CDE120,ZZE12#..UKP

TYPE C

 1
77289-20060

CDE120,ZZE12#..UKP

TYPE C

 1
77740 - CANISTER ASSY, CHARCOAL
77740-02090

ZZE12#..UKP

 1
77740-02091

ZZE12#..UKP

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77705-02050

ZZE121..UKP..4FC

(L)

 1
77705-12110

ZZE121..UKP..4FC

(J)

 1
Common parts
90119-06918
90179-06074
90466-W0001
Linked diagrams
1708
2211

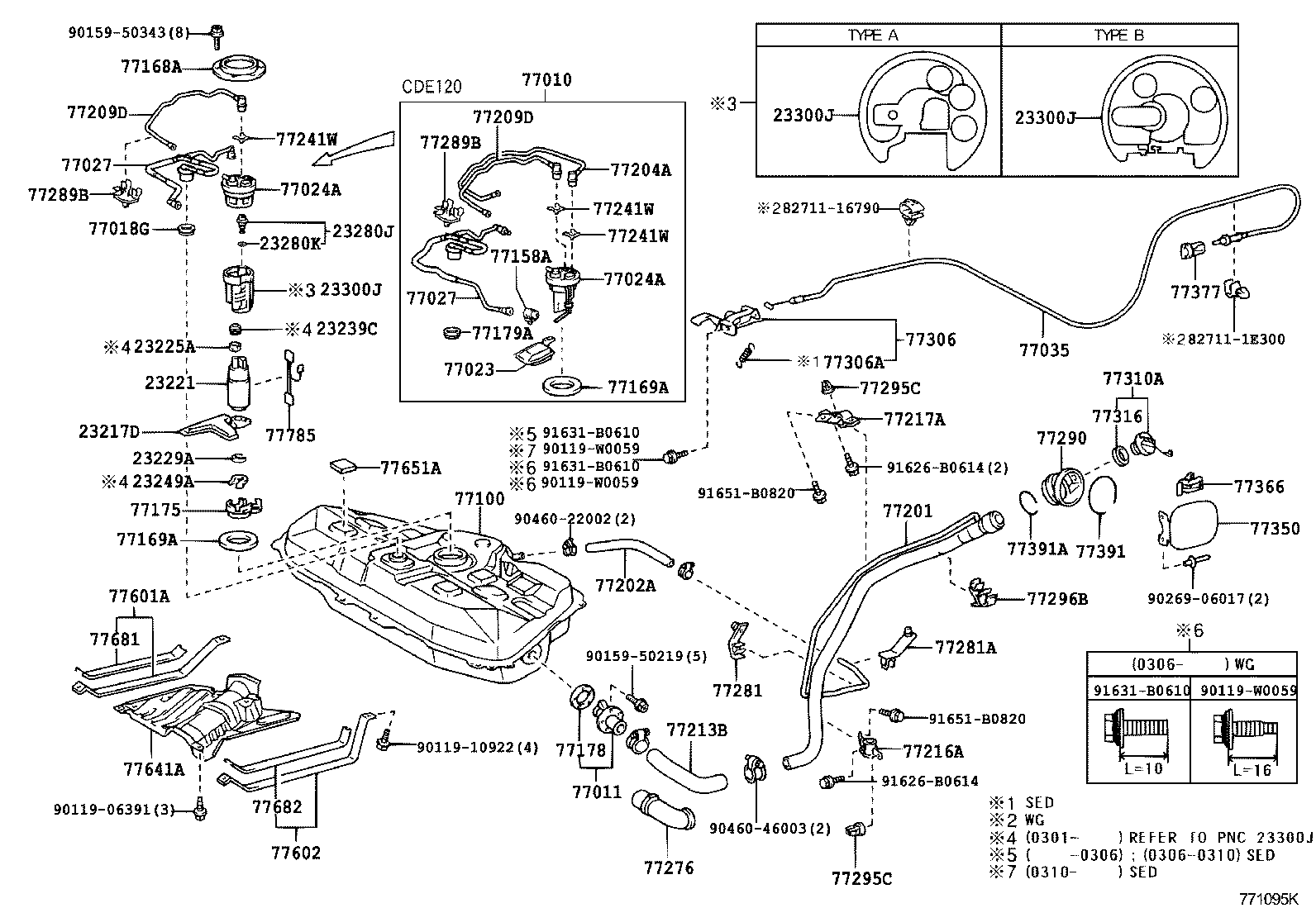

ILLUST NO. 1 OF 2(0201-0406)UKP

Click highlighted areas on diagram

FUEL TANK

diagram 23217D 23221 23225A 23229A 23239C 23249A 23280J 23280K 23300J 23300J 23300J 77010 77011 77018G 77023 77024A 77024A 77027 77027 77035 77100 77158A 77168A 77169A 77169A 77175 77178 77179A 77201 77202A 77204A 77209D 77209D 77213B 77216A 77217A 77241W 77241W 77241W 77276 77281 77281A 77289B 77289B 77290 77295C 77295C 77296B 77306 77306A 77310A 77316 77350 77366 77377 77391 77391A 77601A 77602 77641A 77651A 77681 77682 77785 8271116790 827111E300 9011906391 9011910922 90119W0059 90119W0059 90119W0059 9015950219 9015950343 9026906017 9046022002 9046046003 91626B0614 91626B0614 91631B0610 91631B0610 91631B0610 91651B0820 91651B0820
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-23010

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23221 - PUMP, FUEL
23221-22030

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23225A - SPACER, FUEL PUMP
23225-21010

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23225-0D020

3ZZFE,4ZZFE..ZZE12#..UKP

(L)

 1
23225-21010

3ZZFE,4ZZFE..ZZE12#..UKP

(J)

 1
23229A - CLIP(FOR FUEL PUMP FILTER)
23229-16010

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23239C - SEAL, FUEL PUMP FILTER
23239-21010

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23239-0D020

3ZZFE,4ZZFE..ZZE12#..UKP

(L)

 1
23239-21010

3ZZFE,4ZZFE..ZZE12#..UKP

(J)

 1
23249A - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23249-74610

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-22010

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

3ZZFE,4ZZFE..ZZE12#..UKP

 1
23300J - FILTER ASSY, FUEL
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-23040

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE B:REFER ILLUST.

 1
23300J - FILTER ASSY, FUEL
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-23040

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE B:REFER ILLUST.

 1
23300J - FILTER ASSY, FUEL
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-21010

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE A:REFER ILLUST.

 1
23300-23040

3ZZFE,4ZZFE..ZZE12#..UKP

TYPE B:REFER ILLUST.

 1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-20100

CDE120,ZZE12#..UKP

 1
77018G - GASKET, FUEL TANK EVAP/VENT TUBE
77179-33010

ZZE12#..UKP

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-12010

ZZE12#..UKP

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-12010

ZZE12#..UKP

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-12040

ZZE12#..UKP

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-12040

ZZE12#..UKP

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02120

CDE120,ZZE12#..UKP..LHD..WG

 1
77100 - TANK ASSY, FUEL
77001-02200

ZZE12#..UKP

 1
77001-02130

ZZE12#..UKP

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52010

CDE120,ZZE12#..UKP

(J)

 1
77168-02010

CDE120,ZZE12#..UKP

(L)

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020

ZZE12#..UKP

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020

ZZE12#..UKP

 2
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-47010

ZZE12#..UKP

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

CDE120,ZZE12#..UKP

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12590

ZZE12#..UKP

 1
77201-12620

ZZE12#..UKP

 1
77201-12591

ZZE12#..UKP

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13034

CDE120,ZZE12#..UKP

L=340

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-12160

CDE120,ZZE12#..UKP

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-12160

CDE120,ZZE12#..UKP

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-32090

ZZE12#..UKP

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-32060

CDE120,ZZE12#..UKP

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32050

CDE120,ZZE12#..UKP

 1
77241W - CLIP, TUBE JOINT
77241-33011

ZZE12#..UKP

 1
77241W - CLIP, TUBE JOINT
77241-33011

ZZE12#..UKP

 1
77241W - CLIP, TUBE JOINT
77241-33011

ZZE12#..UKP

 1
77276 - PROTECTOR, FUEL HOSE
77276-12050

CDE120,ZZE12#..UKP

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-32040

CDE120,ZZE12#..UKP

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-12070

CDE120,ZZE12#..UKP

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-12030

CDE120,ZZE12#..UKP

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-12030

CDE120,ZZE12#..UKP

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-02030

CDE120,ZZE12#..UKP

 1
77295C - GROMMET, FUEL TUBE
77295-12070

CDE120,ZZE12#..UKP

 2
77295C - GROMMET, FUEL TUBE
77295-12070

CDE120,ZZE12#..UKP

 2
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-12030

CDE120,ZZE12#..UKP

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-13030

CDE120,ZZE12#..UKP..LHD..WG

 1
77310A - CAP ASSY, FUEL TANK
77300-28010

ZZE12#..UKP

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

CDE120,ZZE12#..UKP

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-13070

CDE120,ZZE12#..UKP..WG

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-02010

CDE120,ZZE12#..UKP

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-02020

CDE120,ZZE12#..UKP

 1
77391 - RING, FUEL INLET BOX
77391-12040

CDE120,ZZE12#..UKP

 1
77391A - RING, FUEL INLET BOX
77391-12020

CDE120,ZZE12#..UKP

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-02040

CDE120,ZZE12#..UKP

 1
77602 - CASE SUB-ASSY, FUEL TANK, UPPER
77602-02040

CDE120,ZZE12#..UKP

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-02020

CDE120,ZZE12#..UKP

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-20090

CDE120,ZZE12#..UKP

 7
77681 - SEAT, FUEL TANK BAND, RH
77681-02030

CDE120,ZZE12#..UKP

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-02020

CDE120,ZZE12#..UKP

 1
77785 - HARNESS, FUEL PUMP
77785-52020

ZZE12#..UKP

 1
Common parts
82711-16790
82711-1E300
90119-06391
90119-10922
90119-W0059
90159-50219
90159-50343
90269-06017
90460-22002
90460-46003
91626-B0614
91631-B0610
91651-B0820
