ZZE121L-DWPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Jun 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

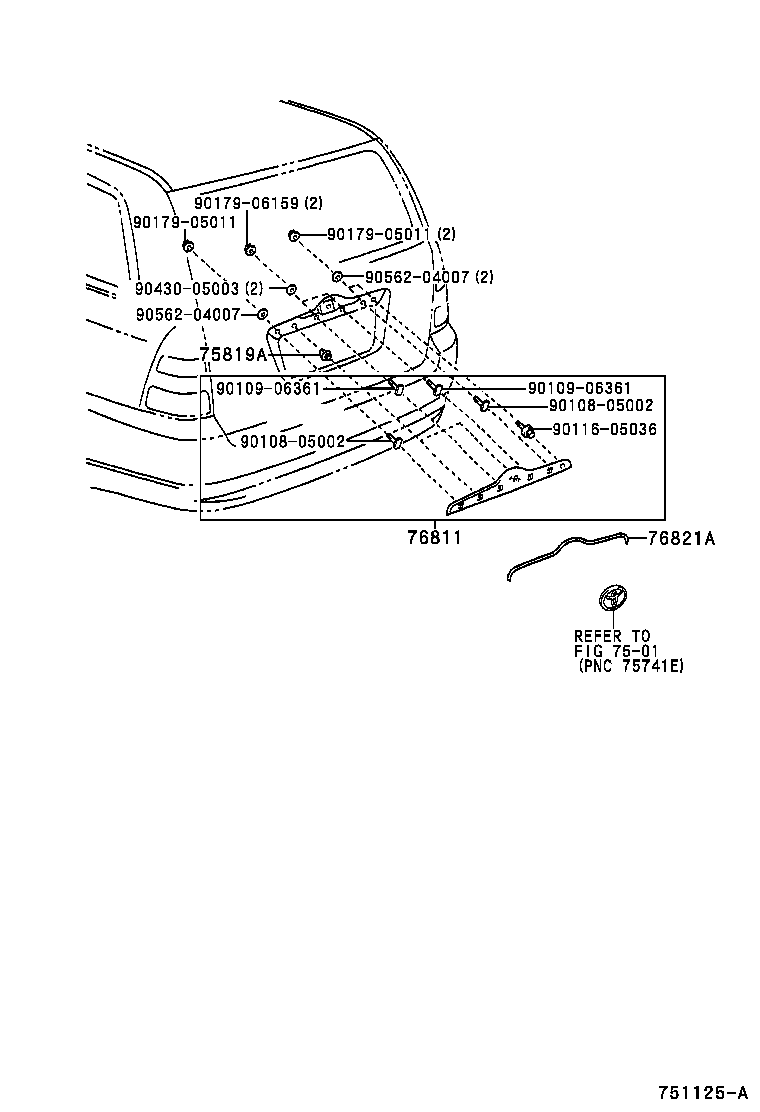

Click highlighted areas on diagram

diagram 7501 75819A 76811 76821A 9010805002 9010805002 9010906361 9010906361 9011605036 9017905011 9017905011 9017906159 9043005003 9056204007 9056204007
Part # Description Qty Price
75819A - CLIP, BACK DOOR MOULDING
75819-12040

CDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA

 2
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-02903

CDE120,ZZE12#..UKP..WG

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-13030

CDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
Common parts
90108-05002
90109-06361
90116-05036
90179-05011
90179-06159
90430-05003
90562-04007
Linked diagrams
7501
