ZZE121L-DWPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Jun 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..LHD..WG

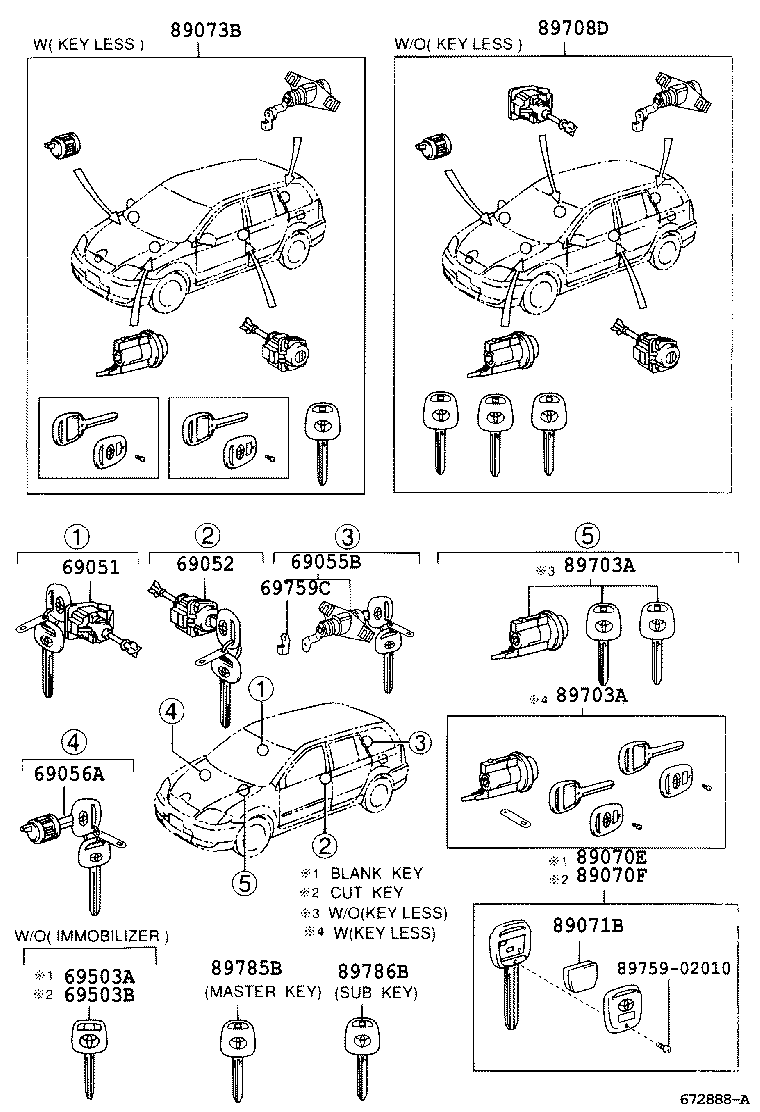

Click highlighted areas on diagram

diagram 69051 69052 69055B 69056A 69503A 69503B 69759C 89070E 89070F 89071B 89073B 89703A 89703A 89708D 8975902010 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02080

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02070

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-02110

CDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-02010

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
69503B - KEY, CUT
69515-05010

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

MASTER KEY(VALEO)

 2
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-20090

CDE120..UKP..WG..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D020

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-0D030

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D010

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

 2
89073B - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-02130

CDE120..UKP..LHD..WG..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
89703A - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89073-02040

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

W(WIRELESS DOOR LOCK)

 1
89703-02040

CDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
89703A - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89073-02040

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

W(WIRELESS DOOR LOCK)

 1
89703-02040

CDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
89708D - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-02150

CDE120..UKP..WG..TERRA..DCR;ZZE121..UKP..WG..4FC..TERRA

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-05020

CDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA

BLANK KEY

 1
89785-05030

CDE120..UKP..TERRA..DCR;CDE120..UKP..SED..SOL..DCR;ZZE121..UKP..WG..4FC..TERRA

CUT KEY

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

BLANK KEY

 1
89786-05030

CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA

CUT KEY

 1
Common parts
89759-02010
