ZZE121L-DWPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Jun 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

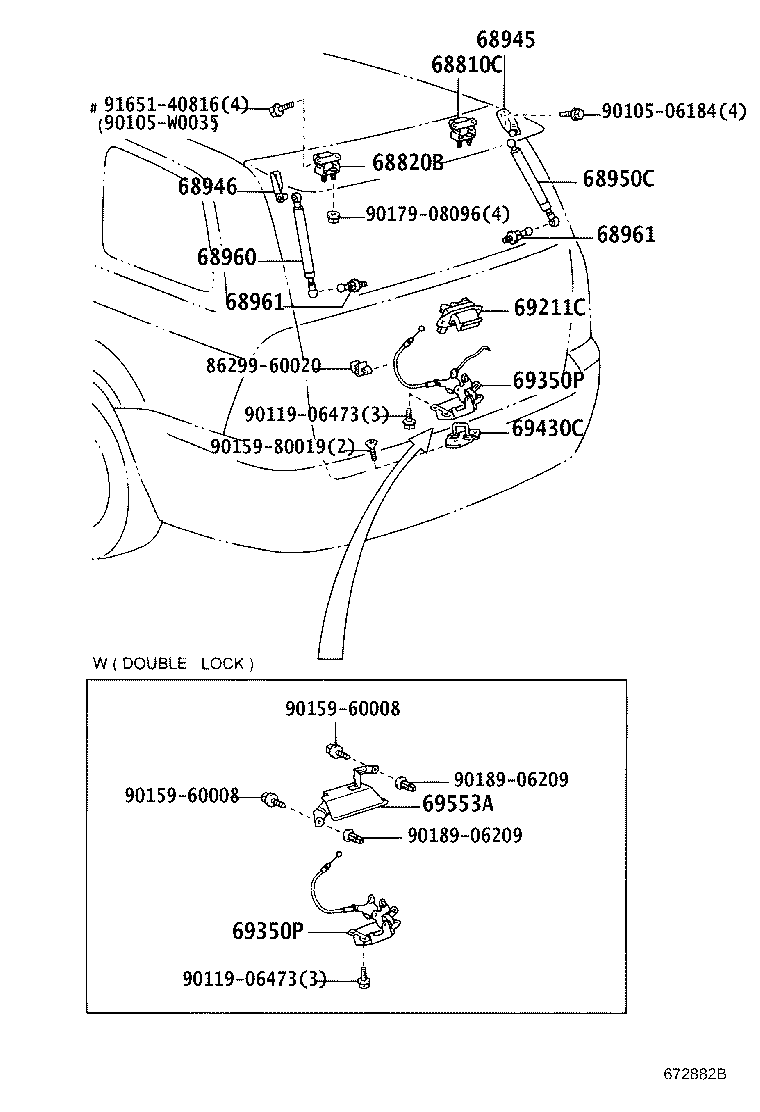

Click highlighted areas on diagram

diagram 68810C 68820B 68945 68946 68950C 68960 68961 68961 69211C 69350P 69350P 69430C 69553A 8629960020 9010506184 90105W0035 9011906473 9011906473 9015960008 9015960008 9015980019 9017908096 9018906209 9018906209 9165140816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21050

CDE120,ZZE12#..UKP..WG

(J)

 1
68810-02020

CDE120,ZZE12#..UKP..WG

 1
68810-02020

CDE120,ZZE12#..UKP..WG

(L)

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-02020

CDE120,ZZE12#..UKP..WG

(L)

 1
68810-21050

CDE120,ZZE12#..UKP..WG

(J)

 1
68810-02020

CDE120,ZZE12#..UKP..WG

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-13040

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-13040

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-02080

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-02070

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
68961 - BOLT, BACK DOOR STAY
68961-10030

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 2
68961 - BOLT, BACK DOOR STAY
68961-10030

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 2
69211C - HANDLE, BACK DOOR OUTSIDE
69023-02010

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-13310

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
69350-13240

CDE120,ZZE12#..UKP..WG

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-13310

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
69350-13240

CDE120,ZZE12#..UKP..WG

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52020

CDE120..UKP..WG;ZZE121..UKP..WG..4FC..TERRA

 1
Common parts
86299-60020
90105-06184
90105-W0035
90119-06473
90159-60008
90159-80019
90179-08096
90189-06209
91651-40816
