ZZE121L-DWMNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

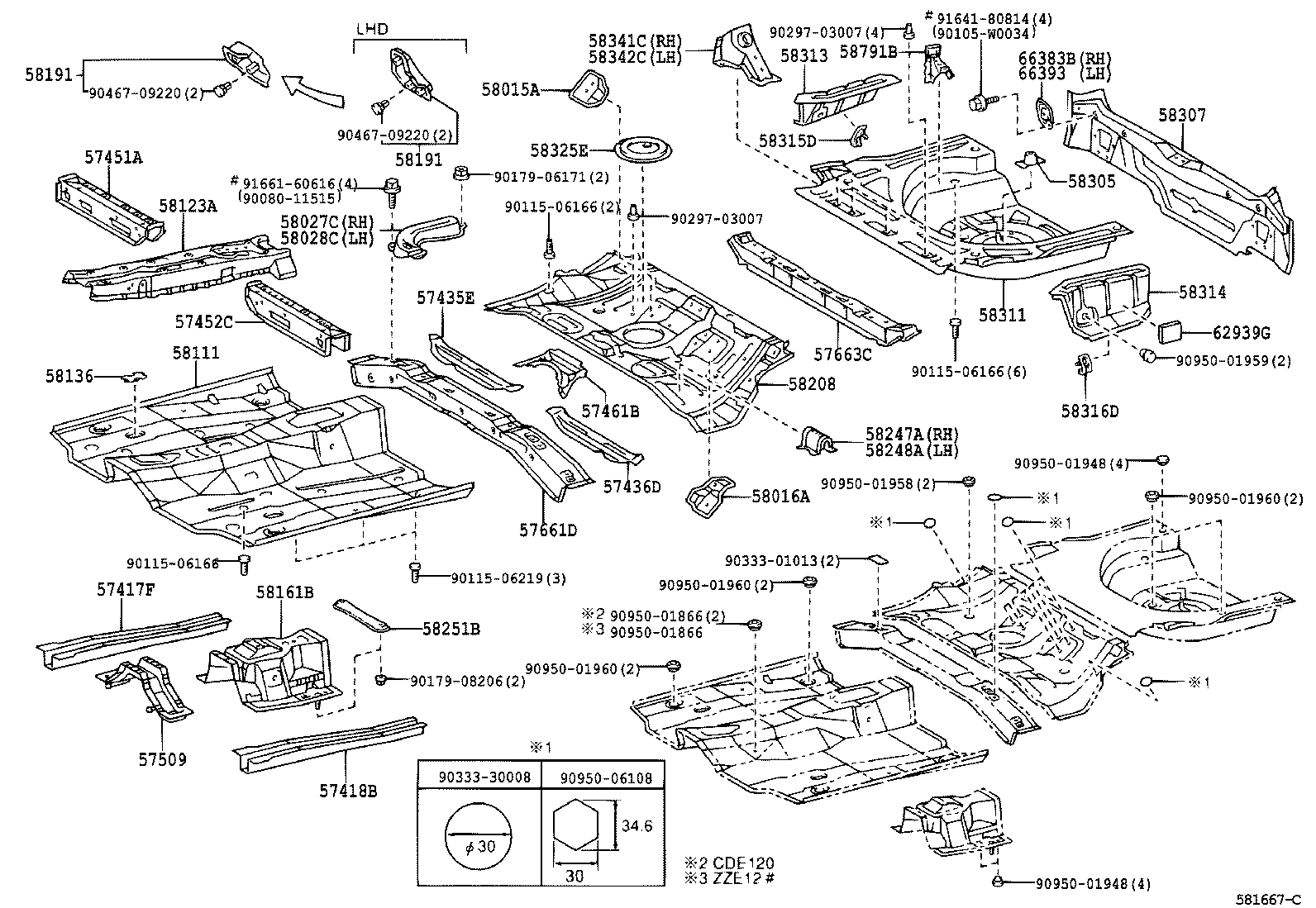

Click highlighted areas on diagram

diagram 57417F 57418B 57435E 57436D 57451A 57452C 57461B 57509 57661D 57663C 58015A 58016A 58027C 58028C 58111 58123A 58136 58161B 58191 58191 58208 58247A 58248A 58251B 58305 58307 58311 58313 58314 58315D 58316D 58325E 58341C 58342C 58791B 62939G 66383B 66393 9008011515 90105W0034 9011506166 9011506166 9011506166 9011506219 9017906171 9017908206 9029703007 9029703007 9033301013 9033330008 9046709220 9046709220 9095001866 9095001866 9095001948 9095001948 9095001958 9095001959 9095001960 9095001960 9095001960 9095006108 9164180814 9166160616
Part # Description Qty Price
57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-02050

CDE120,ZZE12#..UKP

 1
57417-02050

CDE120,NDE120,ZZE12#..UKP

 1
57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH
57417-02050

CDE120,NDE120,ZZE12#..UKP

 1
57417-02050

CDE120,ZZE12#..UKP

 1
57435E - MEMBER, CENTER FLOOR SIDE, RH
57435-02020

CDE120,NDE120,ZZE12#..UKP

 1
57435-02020

CDE120,ZZE12#..UKP

 1
57435-12010

CDE120,ZZE12#..UKP

 1
57436D - MEMBER, CENTER FLOOR SIDE, LH
57436-02020

CDE120,ZZE12#..UKP

 1
57436-12010

CDE120,ZZE12#..UKP

 1
57436-02020

CDE120,NDE120,ZZE12#..UKP

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-02060

CDE120,NDE120,ZZE12#..UKP

 1
57451-02060

CDE120,ZZE12#..UKP

 1
57452C - MEMBER, FRONT FLOOR CROSS, LH
57452-02031

CDE120,ZZE12#..UKP

 1
57452-02030

CDE120,ZZE12#..UKP

 1
57452-02031

CDE120,NDE120,ZZE12#..UKP

 1
57461B - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57461-02050

CDE120,NDE120,ZZE12#..UKP

 1
57461-12130

CDE120,ZZE12#..UKP

 1
57461-02050

CDE120,ZZE12#..UKP

 1
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-02020

CDE120,ZZE12#..UKP

 1
57509-02020

CDE120,NDE120,ZZE12#..UKP

 1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57407-02060

CDE120,ZZE12#..UKP..WG

 1
57407-02060

CDE120,NDE120,ZZE12#..UKP..WG

 1
57663C - MEMBER, REAR FLOOR CROSS, CENTER
57663-02020

CDE120,ZZE12#..UKP..WG

 1
57663-02020

CDE120,NDE120,ZZE12#..UKP..WG

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12060

CDE120,ZZE12#..UKP..WG

 1
58015-02030

CDE120,ZZE12#..UKP..WG

 1
58015-02030

NDE120..UKP;CDE120,ZZE12#..UKP..WG;ZZE12#..UKP..SED..TERRA

W(FIXED TYPE REAR SEAT )

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-02050

CDE120,NDE120,ZZE12#..UKP..WG

 1
58016-02050

CDE120,ZZE12#..UKP..WG

 1
58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58027-02030

CDE120,NDE120,ZZE12#..UKP..WG

 1
58027-02030

CDE120,ZZE12#..UKP..WG

 1
58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58028-02020

CDE120,NDE120,ZZE12#..UKP..WG

 1
58028-02020

CDE120,ZZE12#..UKP..WG

 1
58111 - PAN, FRONT FLOOR
58111-02900

CDE120,ZZE12#..UKP

 1
58111-02900

CDE120,NDE120,ZZE12#..UKP

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-02060

CDE120,NDE120,ZZE12#..UKP

 1
58013-02060

CDE120,ZZE12#..UKP

 1
58136 - COVER, FRONT FLOOR HOLE
58136-33010

CDE120,ZZE12#..UKP

 2
58136-02020

CDE120,NDE120,ZZE12#..UKP

 2
58136-02020

CDE120,ZZE12#..UKP

 2
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
57805-02120

CDE120,ZZE12#..UKP..LHD

 1
57805-02120

CDE120,NDE120,ZZE12#..UKP..LHD

 1
58191 - FOOTREST, FRONT FLOOR
58192-02040

CDE120,NDE120,ZZE12#..UKP..LHD

 1
58192-02040

CDE120,ZZE12#..UKP..LHD

 1
58191 - FOOTREST, FRONT FLOOR
58192-02040

CDE120,NDE120,ZZE12#..UKP..LHD

 1
58192-02040

CDE120,ZZE12#..UKP..LHD

 1
58208 - PAN, CENTER FLOOR
58211-02150

CDE120,NDE120,ZZE12#..UKP..WG

 1
58211-02150

CDE120,ZZE12#..UKP..WG

 1
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-12070

CDE120,NDE120,ZZE12#..UKP

 1
58247-12070

CDE120,ZZE12#..UKP

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-12070

CDE120,ZZE12#..UKP

 1
58247-12070

CDE120,NDE120,ZZE12#..UKP

 1
58251B - BRACE, FLOOR PANEL, FRONT
58251-12030

CDE120,NDE120,ZZE12#..UKP

 1
58251-12030

CDE120,ZZE12#..UKP

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010

CDE120,NDE120,ZZE12#..UKP

 1
58351-33010

CDE120,ZZE12#..UKP

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-02130

CDE120,ZZE12#..UKP..WG

 1
58307-02130

CDE120,NDE120,ZZE12#..UKP..WG

 1
58311 - PAN, REAR FLOOR
58311-02080

CDE120,NDE120,ZZE12#..UKP

 1
58311-02080

CDE120,ZZE12#..UKP

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-02030

CDE120,ZZE12#..UKP

 1
58313-02030

CDE120,NDE120,ZZE12#..UKP

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-02030

CDE120,ZZE12#..UKP

 1
58314-02030

CDE120,NDE120,ZZE12#..UKP

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-12080

CDE120,NDE120,ZZE12#..UKP

 1
58315-12080

CDE120,ZZE12#..UKP

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-12080

CDE120,ZZE12#..UKP

 1
58316-12080

CDE120,NDE120,ZZE12#..UKP

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-02040

CDE120,ZZE12#..UKP

 1
58325-02040

CDE120,NDE120,ZZE12#..UKP

 1
58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-02040

CDE120,NDE120,ZZE12#..UKP..WG

 1
58341-02040

CDE120,ZZE12#..UKP..WG

 1
58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-02040

CDE120,ZZE12#..UKP..WG

 1
58342-02040

CDE120,NDE120,ZZE12#..UKP..WG

 1
58791B - CARRIER, JACK
58791-02020

CDE120,ZZE12#..UKP

 1
58791-02020

CDE120,NDE120,ZZE12#..UKP

 1
62939G - SILENCER, QUARTER VENT
62939-02020

CDE120,NDE120,ZZE12#..UKP..WG

 2
62939-02020

CDE120,ZZE12#..UKP..WG

 2
66383B - BRACKET, ROPE HOOK, NO.1 RH
66383-13010

CDE120,ZZE12#..UKP..WG

 1
66383-13010

CDE120,NDE120,ZZE12#..UKP..WG

 1
66393 - BRACKET, ROPE HOOK, NO.1 LH
66393-13010

CDE120,ZZE12#..UKP..WG

 1
66393-13010

CDE120,NDE120,ZZE12#..UKP..WG

 1
Common parts
90080-11515
90105-W0034
90115-06166
90115-06219
90179-06171
90179-08206
90297-03007
90333-01013
90333-30008
90467-09220
90950-01866
90950-01948
90950-01958
90950-01959
90950-01960
90950-06108
91641-80814
91661-60616
