ZZE121L-DWMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)

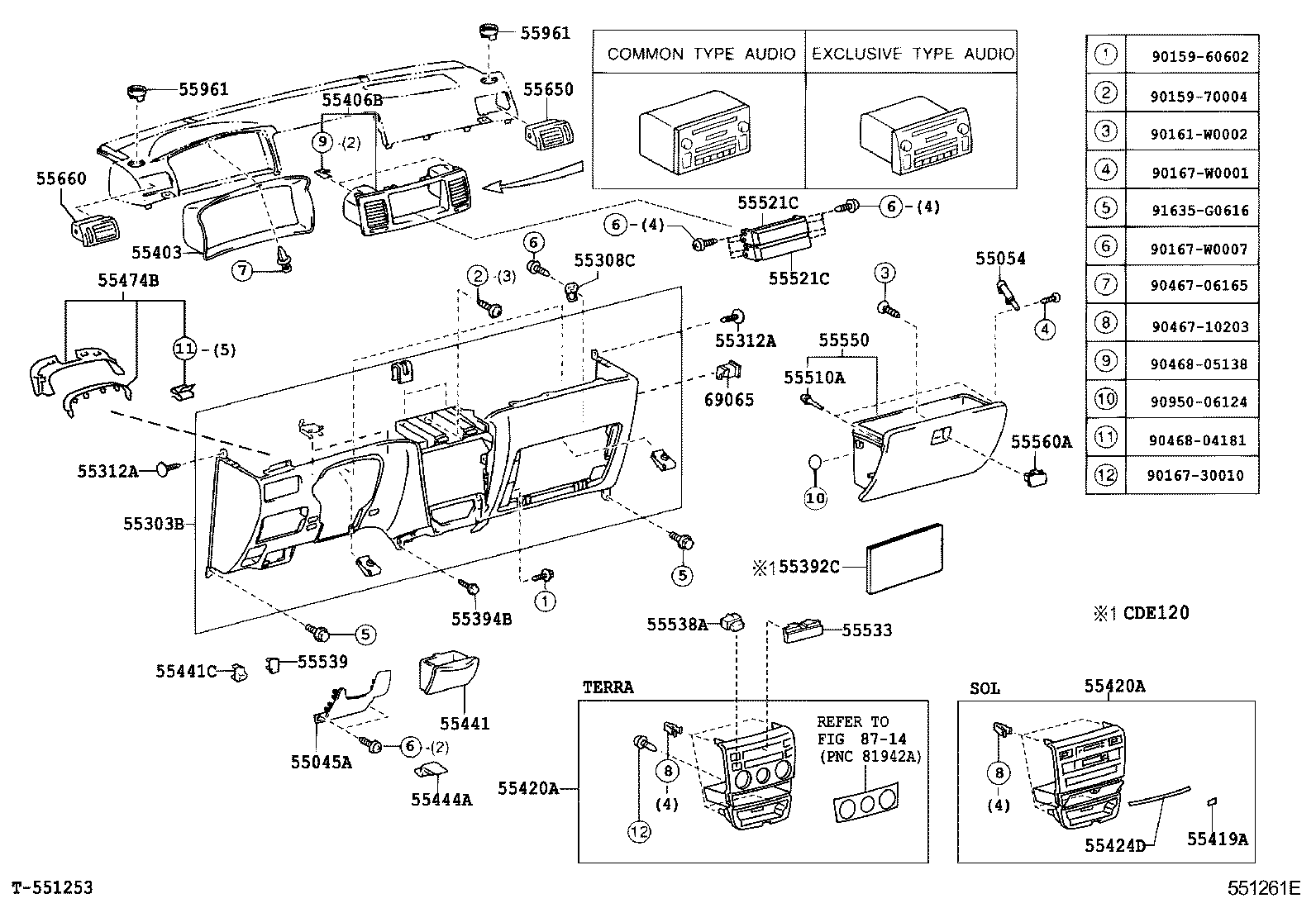

ILLUST NO. 2 OF 2(0201-0406)UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02140B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55045-02080B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55054-12010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02080B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02150B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02151B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55308-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
2 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO.1 |
2 | ||
| 55368-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO.2 |
1 | ||
| 55368-02050 |
CDE120,NDE120,ZZE12#..UKP NO.2 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55394-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02070 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55403-02070 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
CDE120,NDE120,ZZE12#..UKP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02060B0 |
CDE120,ZZE12#..UKP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE12#..UKP REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02070B0 |
CDE120,NDE120,ZZE12#..UKP REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZZE12#..UKP..LHD..SOL |
3 | ||
| 55419-32020 |
CDE120,NDE120,ZZE12#..UKP..SOL |
3 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-02150B2 |
CDE120,ZZE12#..UKP..SOL DIAL TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,NDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,ZZE12#..UKP..SOL PUSH TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-02150B2 |
CDE120,ZZE12#..UKP..SOL DIAL TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,NDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,ZZE12#..UKP..SOL PUSH TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
ZZE12#..UKP..LHD..SOL |
1 | ||
| 55424-12020 |
CDE120,NDE120,ZZE12#..UKP..SOL |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55441-02080B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55441-12150B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55441-12150B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-02030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55441-02030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55444-13040 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 90541-04002 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-02030 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02080B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55550-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55650-02020B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55660-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-11521 | ||||
| 90159-60383 | ||||
| 90159-60602 | ||||
| 90159-70004 | ||||
| 90161-50007 | ||||
| 90161-W0002 | ||||
| 90167-50022 | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 90950-06124 | ||||
| 91635-60616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

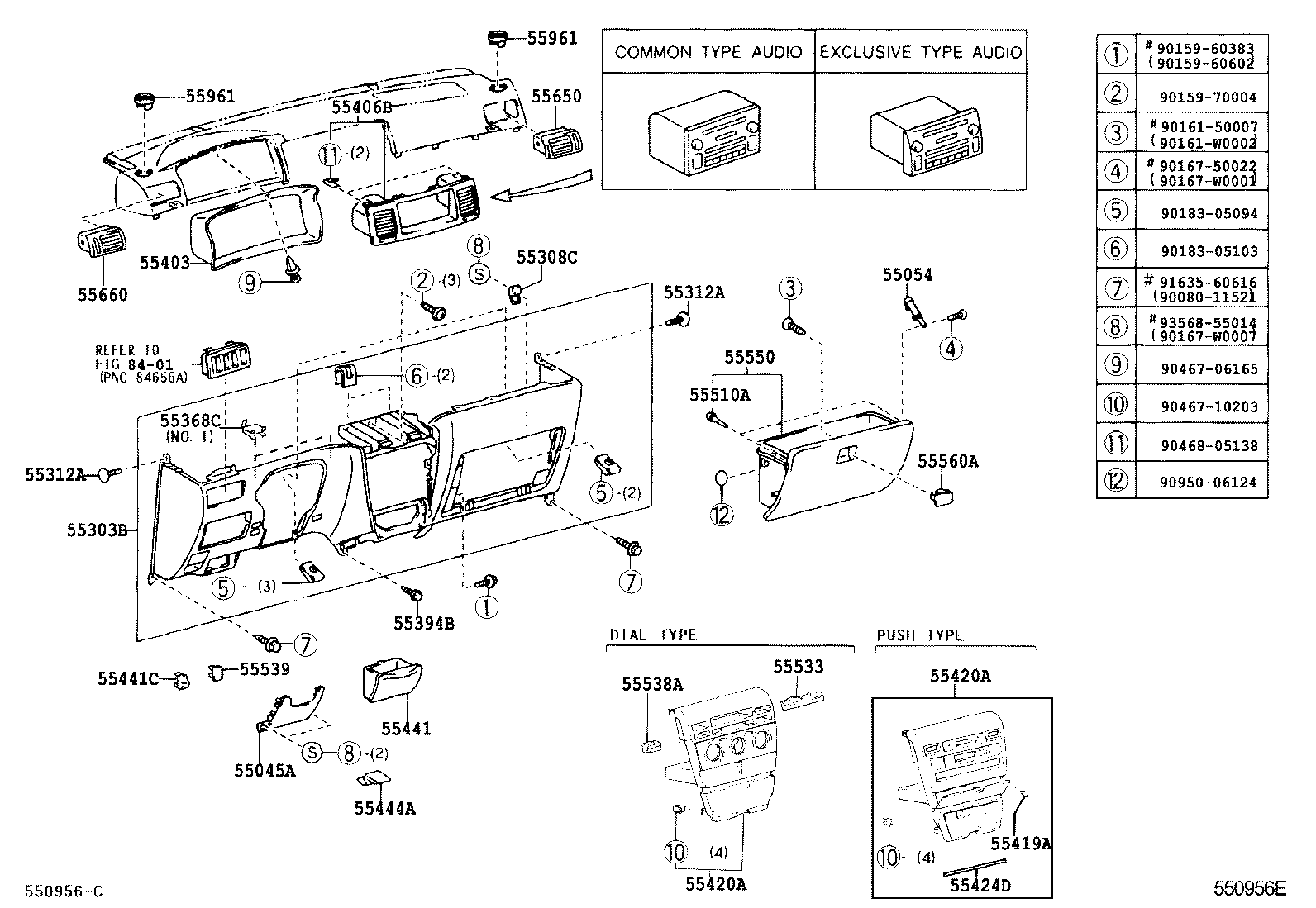

ILLUST NO. 2 OF 2(0406- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-02140B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55045-02080B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55054-12010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02080B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02150B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55303-02151B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55308-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-W0001B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
2 | ||
| 90467-W0001B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 90467-05161B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55394-12020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02070 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55403-02070 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
CDE120,ZZE12#..UKP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02060B0 |
CDE120,NDE120,ZZE12#..UKP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE12#..UKP REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02070B0 |
CDE120,NDE120,ZZE12#..UKP REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZZE12#..UKP..LHD..SOL |
3 | ||
| 55419-32020 |
CDE120,NDE120,ZZE12#..UKP..SOL |
3 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-02150B2 |
CDE120,ZZE12#..UKP..SOL DIAL TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,NDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,ZZE12#..UKP..SOL PUSH TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-02150B2 |
CDE120,ZZE12#..UKP..SOL DIAL TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,NDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 55420-12250B0 |
CDE120,ZZE12#..UKP..SOL PUSH TYPE PANEL,GRAPHIC CARBON,TRIM1# |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
ZZE12#..UKP..LHD..SOL |
1 | ||
| 55424-12020 |
CDE120,NDE120,ZZE12#..UKP..SOL |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55441-02080B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 55441-12150B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55441-12150B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-02030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55441-02030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 55444-13040 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 90541-04002 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-02030 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02080B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55550-02080B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55650-02020B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55660-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 55961-02040B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-12370 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90159-70004 | ||||
| 90161-W0002 | ||||
| 90167-30010 | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-04181 | ||||
| 90468-05138 | ||||
| 90950-06124 | ||||
| 91635-G0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
