ZZE121L-DWMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)

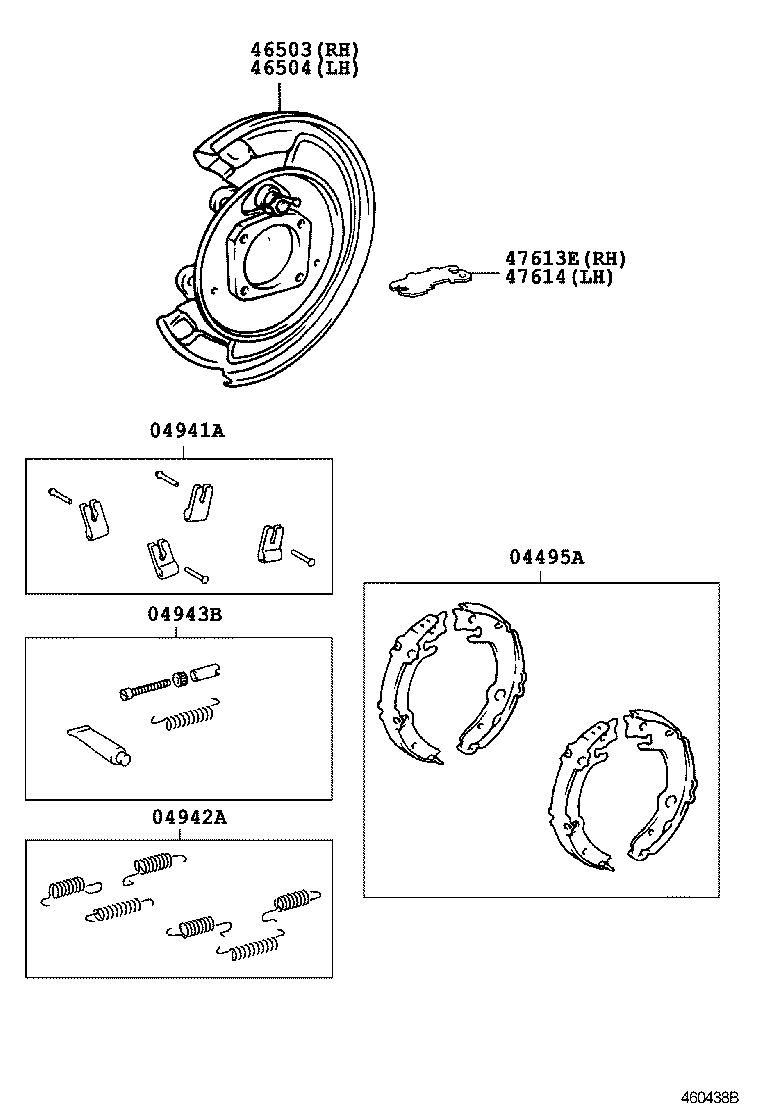

ILLUST NO. 2 OF 2(0201-0406)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495A - SHOE KIT, PARKING BRAKE | ||||
| 04495-02120 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04495-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04941A - SPRING KIT, PARKING BRAKE SHOE HOLD DOWN | ||||
| 04941-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04942A - SPRING KIT, PARKING BRAKE | ||||
| 04942-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04943B - ADJUSTER KIT, PARKING BRAKE | ||||
| 04943-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04943-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-02020 |
ZZE12#..UKP |
1 | ||
| 46503-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-02020 |
ZZE12#..UKP |
1 | ||
| 46504-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||

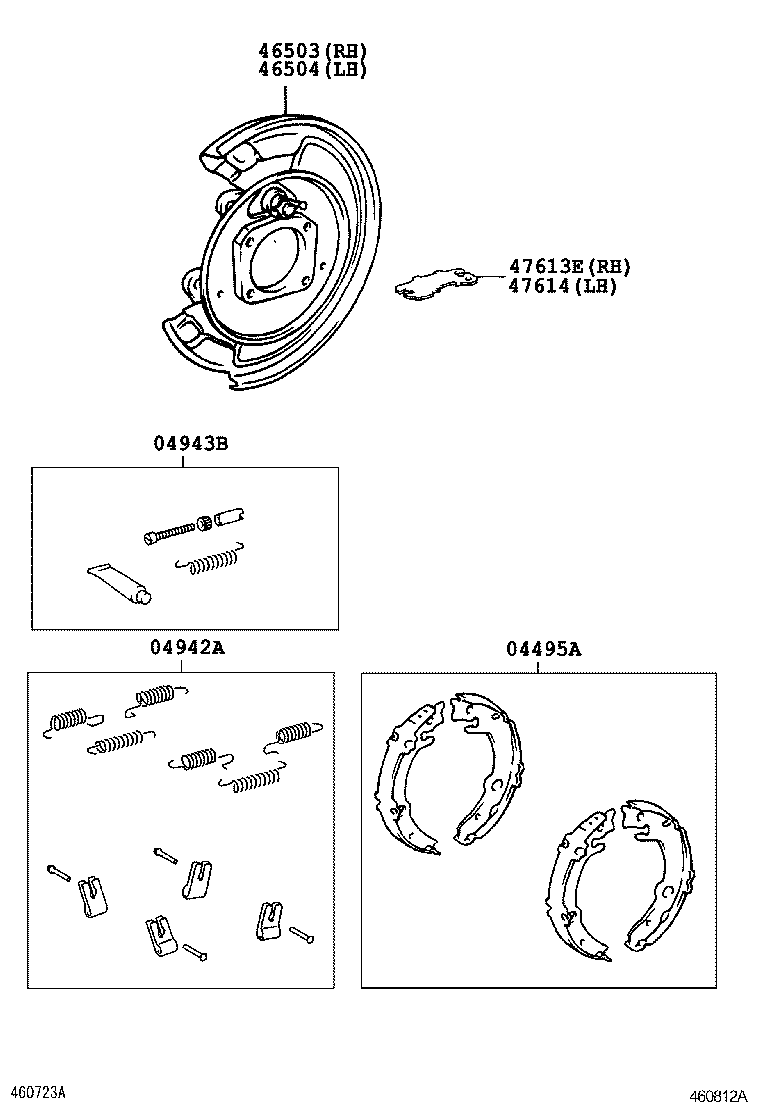

ILLUST NO. 2 OF 2(0406- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495A - SHOE KIT, PARKING BRAKE | ||||
| 04495-02120 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04495-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942A - SPRING KIT, PARKING BRAKE | ||||
| 04942-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04942-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04943B - ADJUSTER KIT, PARKING BRAKE | ||||
| 04943-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 04943-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 04943-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-02020 |
ZZE12#..UKP |
1 | ||
| 46503-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-02020 |
ZZE12#..UKP |
1 | ||
| 46504-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 47613-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
