Toyota Corolla sed/wg (ukp) ZZE121 VACUUM PIPING

ZZE121L-DWMNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

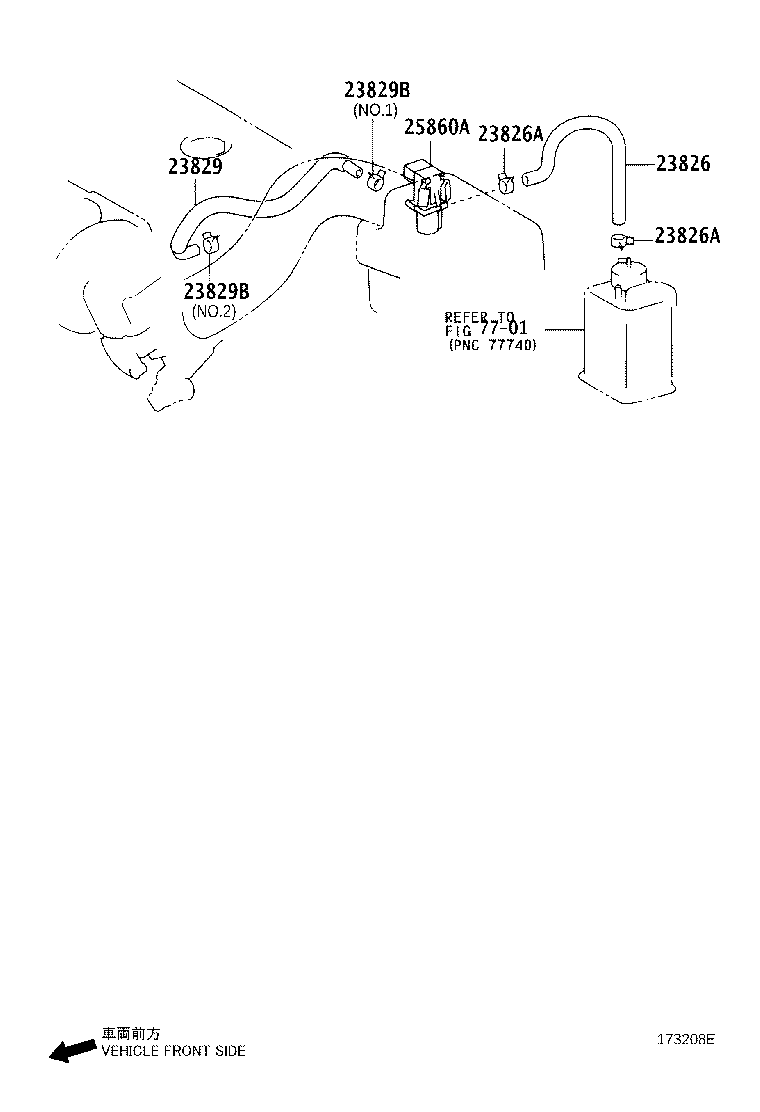

Click highlighted areas on diagram

Part #	Description	Period	Qty
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
23826-0D050	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	2
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	2
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP (J)	06/2004 - 12/2999	1
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP	08/2003 - 11/2003	1
23829-0D080	3ZZFE,4ZZFE..ZZE12#..UKP (L)	11/2003 - 06/2004	1
23829-0D080	3ZZFE,4ZZFE..ZZE12#..UKP (L)	06/2004 - 12/2999	1
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP (J)	11/2003 - 06/2004	1
23829-22050	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 08/2003	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	01/2002 - 08/2003	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	06/2004 - 12/2999	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	08/2003 - 06/2004	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	01/2002 - 08/2003	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	06/2004 - 12/2999	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	08/2003 - 06/2004	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12257	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
Linked diagrams
7701

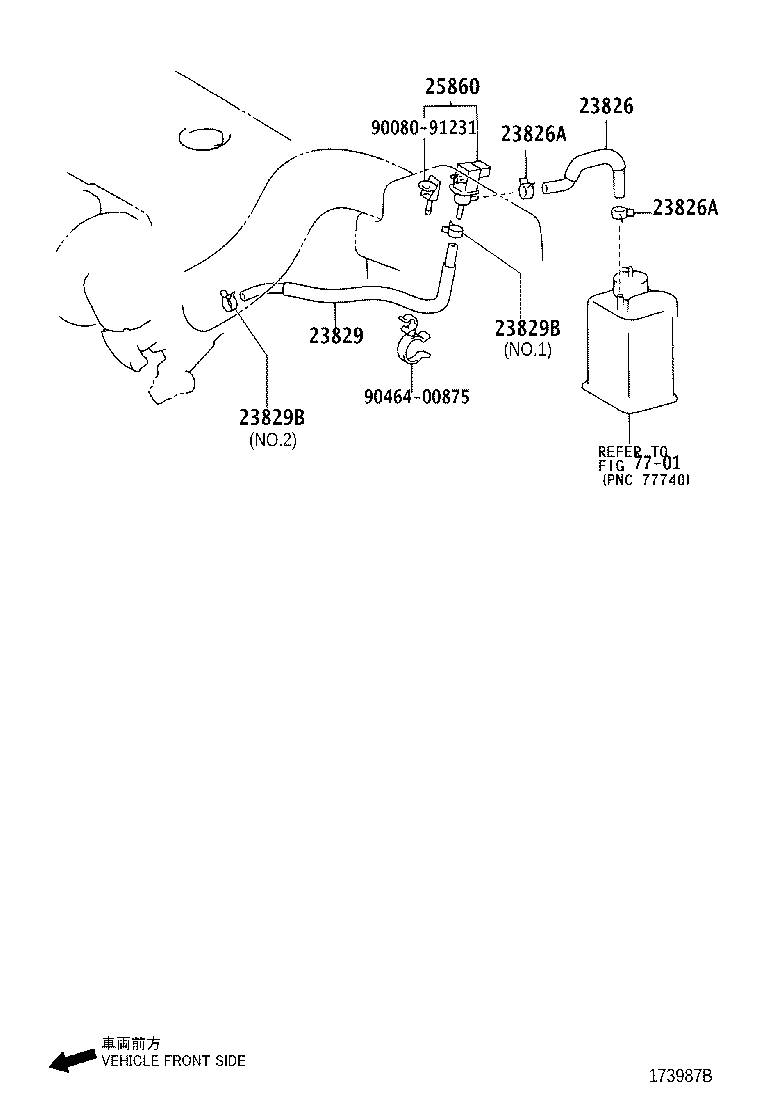

Click highlighted areas on diagram

Part #	Description	Period	Qty
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
23826-0D050	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	2
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	2
96132-51100	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP (J)	06/2004 - 12/2999	1
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP	08/2003 - 11/2003	1
23829-0D080	3ZZFE,4ZZFE..ZZE12#..UKP (L)	11/2003 - 06/2004	1
23829-0D080	3ZZFE,4ZZFE..ZZE12#..UKP (L)	06/2004 - 12/2999	1
23829-22080	3ZZFE,4ZZFE..ZZE12#..UKP (J)	11/2003 - 06/2004	1
23829-22050	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 08/2003	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	01/2002 - 08/2003	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	06/2004 - 12/2999	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	08/2003 - 06/2004	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	01/2002 - 08/2003	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	06/2004 - 12/2999	1
90466-W0005	3ZZFE,4ZZFE..ZZE12#..UKP NO.1,NO.2	08/2003 - 06/2004	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0D040	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90080-91231
90464-00875
Linked diagrams
7701
