ZZE121L-DEPNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

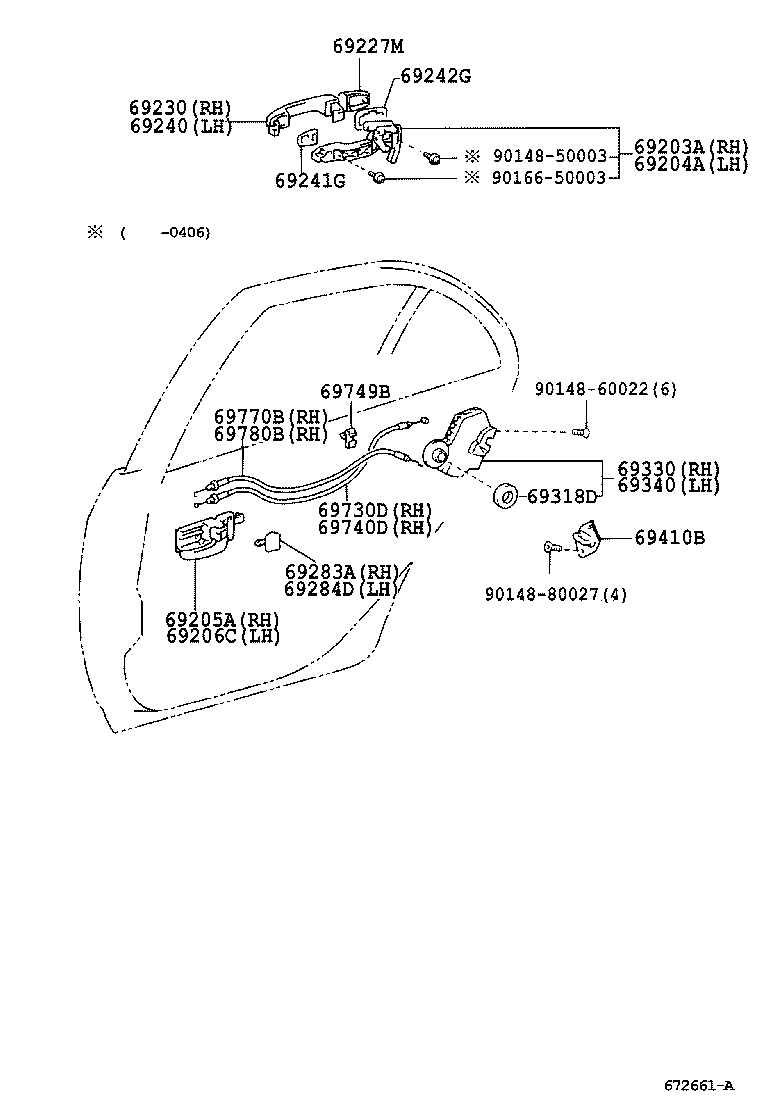

Click highlighted areas on diagram

diagram 69203A 69204A 69205A 69206C 69227M 69230 69240 69241G 69242G 69283A 69284D 69318D 69330 69340 69410B 69730D 69740D 69749B 69770B 69780B 9014850003 9014860022 9014880027 9016650003
Part # Description Qty Price
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-02060

CDE120,ZZE12#..UKP

 1
69203-02090

CDE120,NDE120,ZZE12#..UKP

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-02060

CDE120,ZZE12#..UKP

 1
69204-02090

CDE120,NDE120,ZZE12#..UKP

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-13020B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,(J)

 1
69205-02110B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,(L)

 1
69205-02110B0

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69205-02070B0

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69205-02110B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02070B0

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69206-02110B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69206-02110B0

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69206-02110B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,(L)

 1
69206-13020B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,(J)

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-02060

CDE120,NDE120,ZZE12#..UKP

 2
69227-02901

CDE120,ZZE12#..UKP

LESS COLOR

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-05903

CDE120,NDE120,ZZE12#..UKP

PAINT REQ.,UNPAINTED

 1
69211-02110

CDE120,ZZE12#..UKP

NO PAINT REQ.

 1
69211-05903

CDE120,ZZE12#..UKP

PAINT REQ.,UNPAINTED

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-02110

CDE120,ZZE12#..UKP

NO PAINT REQ.

 1
69211-05903

CDE120,NDE120,ZZE12#..UKP

PAINT REQ.,UNPAINTED

 1
69211-05903

CDE120,ZZE12#..UKP

PAINT REQ.,UNPAINTED

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-02040

CDE120,ZZE12#..UKP

 2
69241-02040

CDE120,NDE120,ZZE12#..UKP

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-02040

CDE120,ZZE12#..UKP

 2
69242-02040

CDE120,NDE120,ZZE12#..UKP

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-12040B1

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69283-12040B1

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-12040B1

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69283-12040B1

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

CDE120..UKP..LHD;ZZE121..UKP..SOL;ZZE120..UKP..SED..SOL;NDE120,ZZE120..UKP..WG;ZZE121..UKP..LHD..WG..TERRA

 2
69318-51010

CDE120..UKP..LHD;ZZE121..UKP..SOL;ZZE120..UKP..SED..SOL;NDE120,ZZE120..UKP..WG;ZZE121..UKP..LHD..WG..TERRA

 2
69318-51010

CDE120,ZZE12#..UKP

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-13090

CDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69050-02101

CDE120,NDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69050-02101

CDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69050-02102

CDE120,NDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-02101

CDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69060-13090

CDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69060-02101

CDE120,NDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69060-02102

CDE120,NDE120,ZZE12#..UKP

W(POWER DOOR LOCK)

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

CDE120,NDE120,ZZE12#..UKP

 2
69410-33010

CDE120,ZZE12#..UKP

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-02070

CDE120,NDE120,ZZE12#..UKP

 1
69730-02070

CDE120,ZZE12#..UKP

(L)

 1
69730-13020

CDE120,ZZE12#..UKP

(J)

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-13020

CDE120,ZZE12#..UKP

(J)

 1
69730-02070

CDE120,ZZE12#..UKP

(L)

 1
69730-02070

CDE120,NDE120,ZZE12#..UKP

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

CDE120,ZZE12#..UKP

 2
69749-32040

CDE120,NDE120,ZZE12#..UKP

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-02100

CDE120,ZZE12#..UKP

(L)

 1
69770-13010

CDE120,ZZE12#..UKP

(J)

 1
69770-02100

CDE120,NDE120,ZZE12#..UKP

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-13010

CDE120,ZZE12#..UKP

(J)

 1
69780-02100

CDE120,NDE120,ZZE12#..UKP

 1
69780-02100

CDE120,ZZE12#..UKP

(L)

 1
Common parts
90148-50003
90148-60022
90148-80027
90166-50003
