Toyota Corolla sed/wg (ukp) ZZE121 FRONT DOOR PANEL & GLASS

ZZE121L-DEPDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

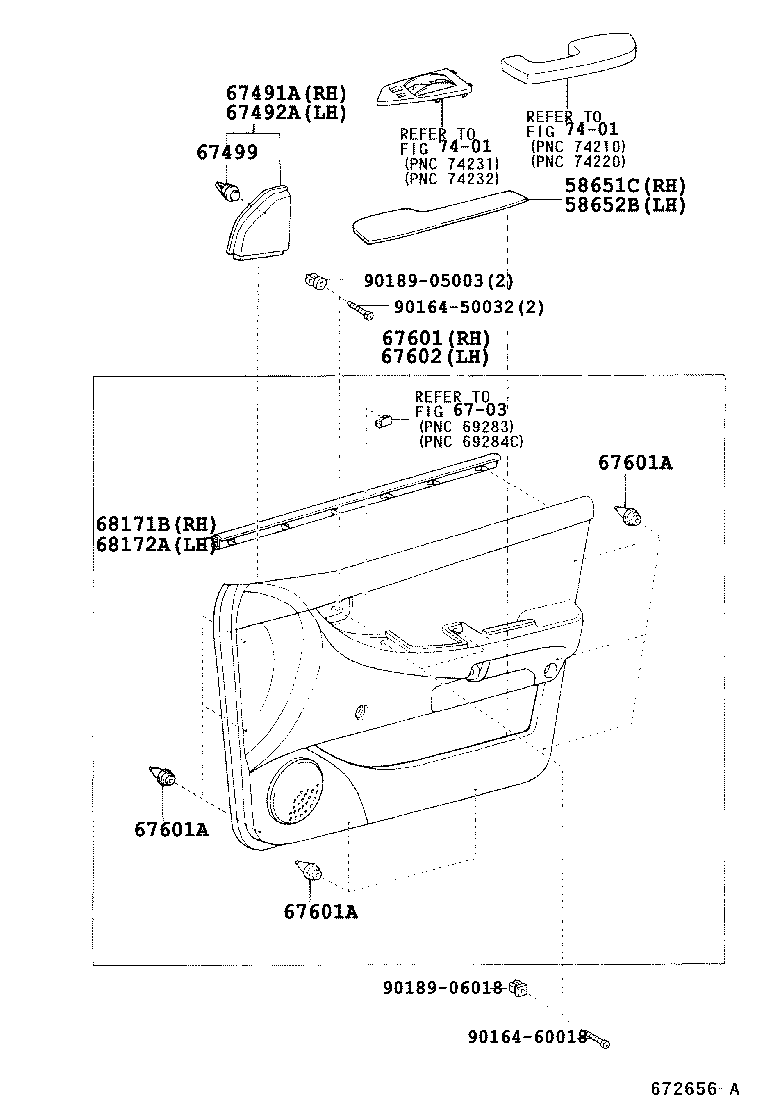

ILLUST NO. 1 OF 3(0201- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
58651C - PLATE, FRONT DOOR MAT, RH
58651-02070B0	CDE120,ZZE12#..UKP DK.GRAY,TRIM1#	01/2002 - 06/2004	1
58651-02070B0	CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#	06/2004 - 12/2999	1
58652B - PLATE, FRONT DOOR MAT, LH
58652-02050B0	CDE120,ZZE12#..UKP DK.GRAY,TRIM1#	01/2002 - 06/2004	1
58652-02050B0	CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12470	CDE120,ZZE12#..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	01/2002 - 06/2004	1
67491-12470	CDE120,ZZE12#..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	06/2004 - 12/2999	1
67491-12460	CDE120,ZZE12#..UKP..TERRA W(ELECTRIC REMOTE CONTROL MIRROR)	06/2004 - 12/2999	1
67491-12460	CDE120,ZZE12#..UKP..TERRA W(ELECTRIC REMOTE CONTROL MIRROR)	01/2002 - 06/2004	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12470	CDE120,ZZE12#..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	01/2002 - 06/2004	1
67492-12460	CDE120,ZZE12#..UKP..TERRA W(ELECTRIC REMOTE CONTROL MIRROR)	06/2004 - 12/2999	1
67492-12460	CDE120,ZZE12#..UKP..TERRA W(ELECTRIC REMOTE CONTROL MIRROR)	01/2002 - 06/2004	1
67492-12470	CDE120,ZZE12#..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR)	06/2004 - 12/2999	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-12060	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
67771-12060	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-02350B0	CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67650-02310B1	CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	01/2002 - 06/2004	1
67650-02320B1	CDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	01/2002 - 06/2004	1
67650-02340B0	NDE120,ZZE12#..UKP..SED..TERRA DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	16
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	16
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	16
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	16
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	16
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	16
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161	CDE120,ZZE12#..UKP (J)	06/2003 - 06/2004	16
90467-W0005	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	16
90467-W0005	CDE120,ZZE12#..UKP (L)	06/2003 - 06/2004	16
90467-10161	CDE120,ZZE12#..UKP	01/2002 - 06/2003	16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67660-02350B0	NDE120,ZZE12#..UKP..SED..TERRA DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67660-02330B1	CDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	01/2002 - 06/2004	1
67660-02360B0	CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1#	06/2004 - 12/2999	1
67660-02320B1	CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1#	01/2002 - 06/2004	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-12290	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
68171-12320	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
68171-12320	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-12240	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
68172-12210	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
68172-12240	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90164-50032
90164-60018
90189-05003
90189-06018
Linked diagrams
6703
7401

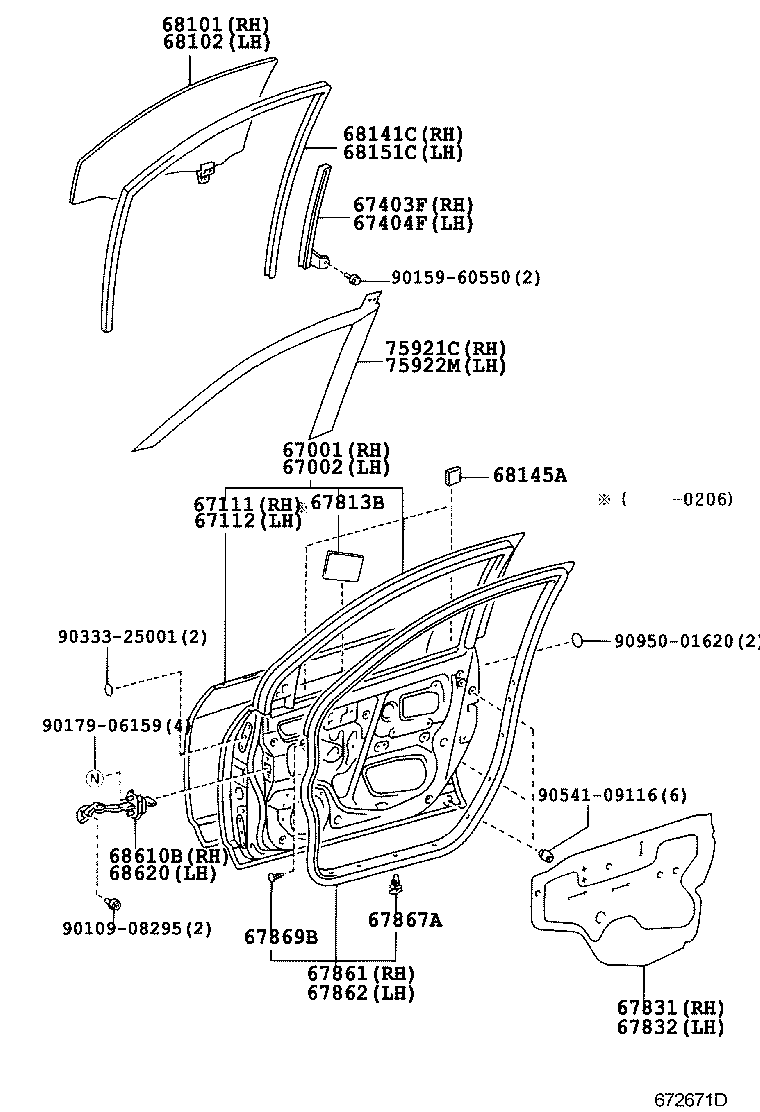

ILLUST NO. 2 OF 3(0201- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-02130	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
67001-02131	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67001-02131	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-02131	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67002-02130	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
67002-02131	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-02070	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67111-02070	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-02070	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
67112-02070	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12220	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67403-12220	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12200	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67404-12200	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67813B - PACKING, DOOR PROTECTOR
67817-47010	CDE120,ZZE12#..UKP	01/2002 - 06/2002	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-02100	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67831-02100	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-02100	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67832-02100	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-02111	CDE120,NDE120,ZZE12#..UKP	04/2005 - 12/2999	1
67861-02110	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67861-02110	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2005	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-02111	CDE120,NDE120,ZZE12#..UKP	04/2005 - 12/2999	1
67862-02110	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
67862-02110	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2005	1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-12150	CDE120,ZZE12#..UKP	01/2002 - 06/2004	28
67867-12150	CDE120,NDE120,ZZE12#..UKP	04/2005 - 12/2999	28
67867-12150	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2005	28
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2005	2
67869-20030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
67869-20030	CDE120,NDE120,ZZE12#..UKP	04/2005 - 12/2999	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-02100	CDE120,ZZE12#..UKP *TT,T=3.5,GREEN	01/2002 - 04/2004	1
68101-1A510	CDE120,ZZE12#..UKP *TT,T=3.5,GREEN	04/2004 - 06/2004	1
68101-02100	CDE120,NDE120,ZZE12#..UKP *TT,T=3.5,GREEN	06/2004 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-02100	CDE120,NDE120,ZZE12#..UKP *TT,T=3.5,GREEN	06/2004 - 12/2999	1
68102-1A500	CDE120,ZZE12#..UKP *TT,T=3.5,GREEN	04/2004 - 06/2004	1
68102-02100	CDE120,ZZE12#..UKP *TT,T=3.5,GREEN	01/2002 - 04/2004	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-02070	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
68141-02072	CDE120,NDE120,ZZE12#..UKP	03/2006 - 12/2999	1
68141-02071	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2006	1
68141-02071	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
68145A - CUSHION, FRONT DOOR WINDOW
69759-12110	CDE120,ZZE12#..UKP	01/2002 - 06/2004	4
69759-12110	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	4
68151C - RUN, FRONT DOOR GLASS, LH
68151-02061	CDE120,ZZE12#..UKP	02/2002 - 06/2004	1
68151-02062	CDE120,NDE120,ZZE12#..UKP	03/2006 - 12/2999	1
68151-02060	CDE120,ZZE12#..UKP	01/2002 - 02/2002	1
68151-02061	CDE120,NDE120,ZZE12#..UKP	06/2004 - 03/2006	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-12170	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
68610-12170	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-12100	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
68620-12100	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-02021	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
75921-12051	CDE120,ZZE12#..UKP (J)	01/2002 - 06/2004	1
75921-02021	CDE120,ZZE12#..UKP (L)	01/2002 - 06/2004	1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-02021	CDE120,ZZE12#..UKP (L)	01/2002 - 06/2004	1
75922-12051	CDE120,ZZE12#..UKP (J)	01/2002 - 06/2004	1
75922-02021	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90109-08295
90159-60550
90179-06159
90333-25001
90541-09116
90950-01620

ILLUST NO. 3 OF 3(0406- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
