ZZE121L-DEMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)
ILLUST NO. 2 OF 2(0201- )UKP
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

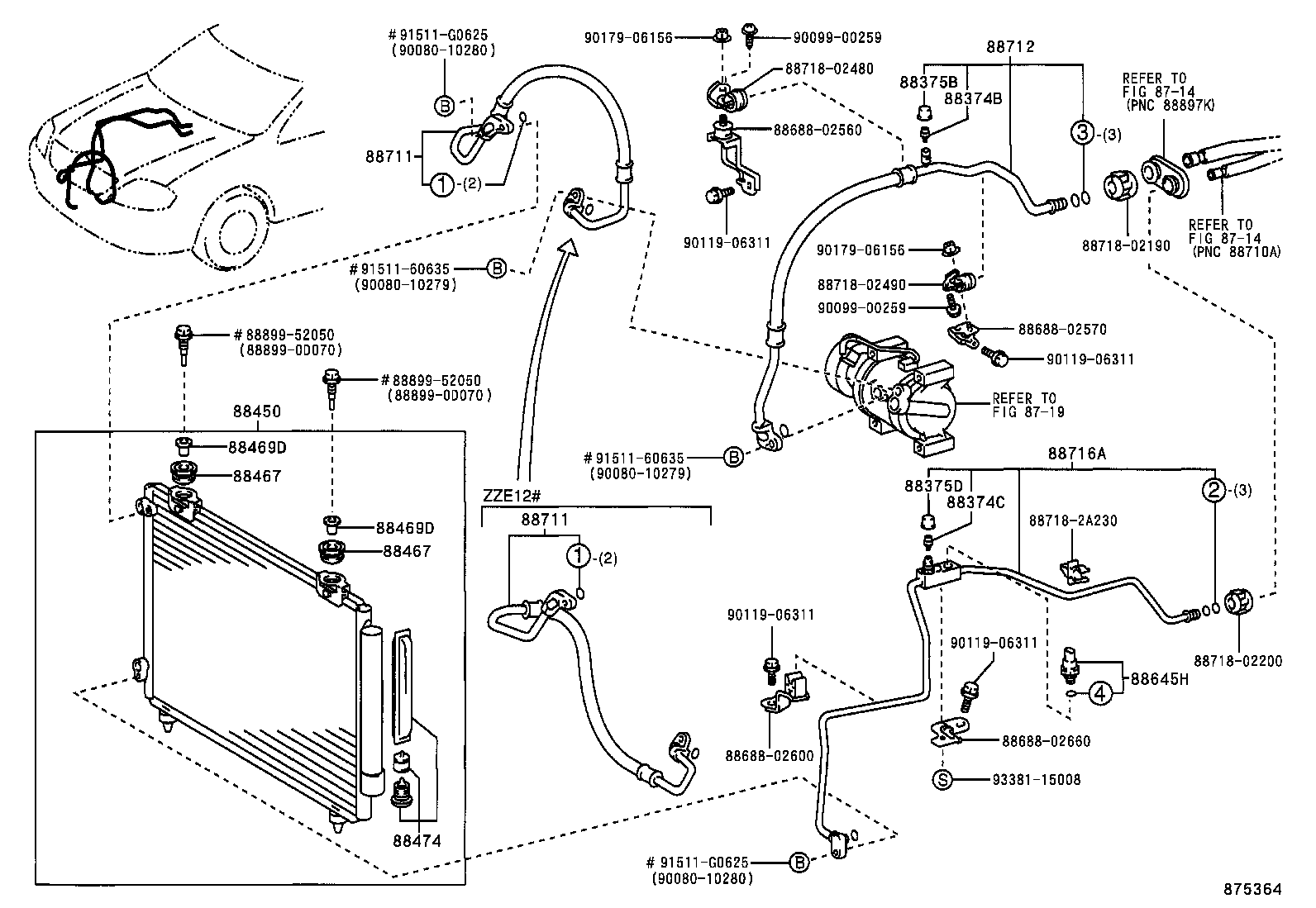

ILLUST NO. 1 OF 2(0201-0406)UKP..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZE12#..UKP..LHD |
1 | ||
| 88374-30010 |
ZZE12#..UKP |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
CDE120..UKP;ZZE12#..UKP..LHD |
1 | ||
| 88374-30010 |
ZZE12#..UKP |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZE12#..UKP..LHD |
1 | ||
| 88375-30290 |
ZZE12#..UKP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDE120,ZZE12#..UKP |
1 | ||
| 88375-30280 |
ZZE12#..UKP |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02250 |
CDE120,NDE120,ZZE12#..UKP MAKER OPTION |
1 | ||
| 88450-02150 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 88474-47010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-02200 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88704-02500 |
ZZE12#..UKP..LHD MAKER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02480 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88716-02300 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 88688-02560 | ||||
| 88688-02570 | ||||
| 88688-02600 | ||||
| 88688-02660 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02480 | ||||
| 88718-02490 | ||||
| 88718-2A230 | ||||
| 88899-0D070 | ||||
| 88899-52050 | ||||
| 90080-10279 | ||||
| 90080-10280 | ||||
| 90099-00259 | ||||
| 90119-06311 | ||||
| 90179-06156 | ||||
| 91511-60635 | ||||
| 91511-G0625 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

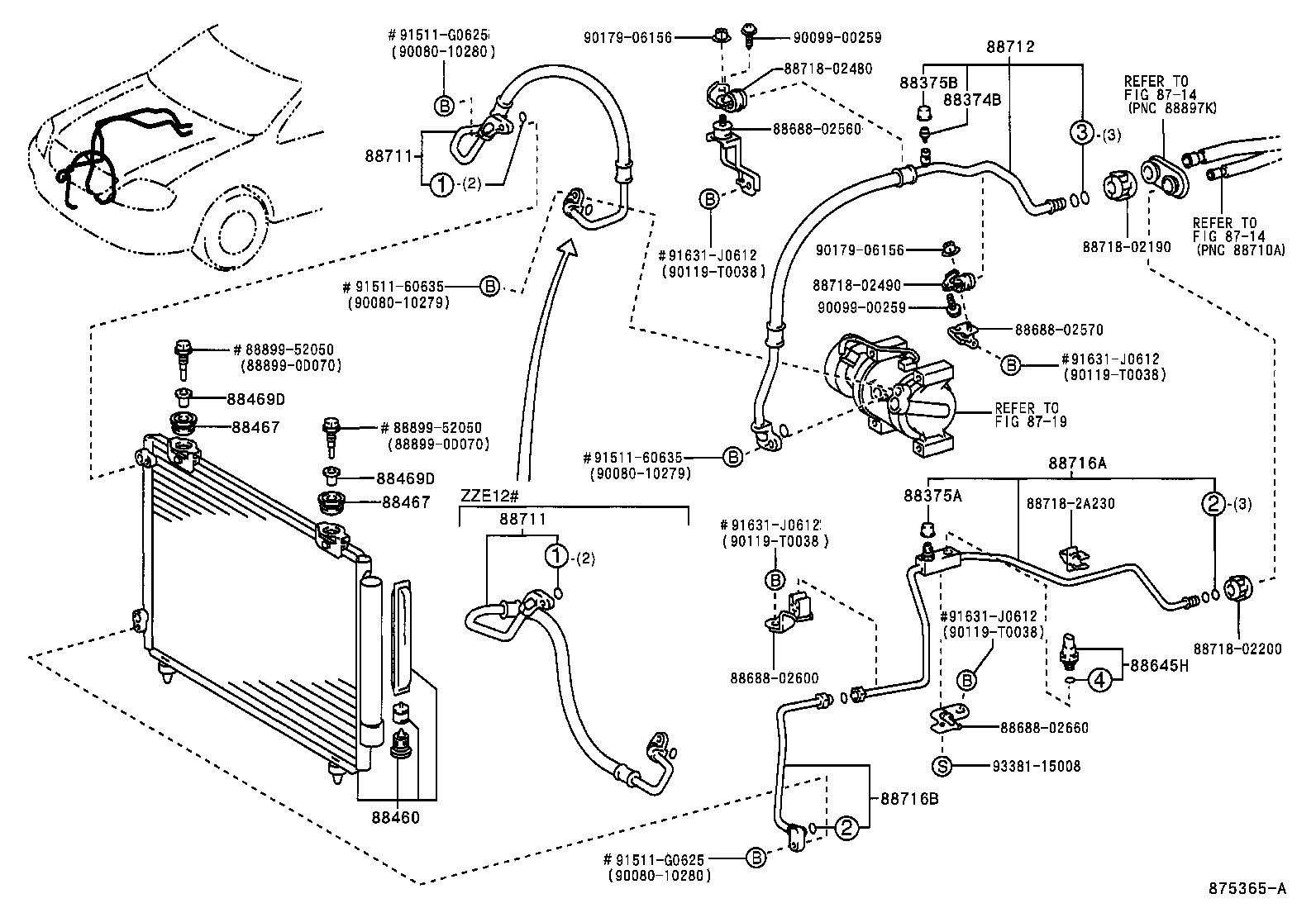

ILLUST NO. 1 OF 2(0201-0406)UKP..LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZE12#..UKP |
1 | ||
| 88374-30010 |
ZZE12#..UKP..LHD |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZE12#..UKP..LHD |
1 | ||
| 88375-30290 |
ZZE12#..UKP |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-02110 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-02200 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88704-02500 |
ZZE12#..UKP..LHD MAKER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02480 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88716-02300 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-02340 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| Common parts | ||||
| 88688-02560 | ||||
| 88688-02570 | ||||
| 88688-02600 | ||||
| 88688-02660 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02480 | ||||
| 88718-02490 | ||||
| 88718-2A230 | ||||
| 88899-0D070 | ||||
| 88899-52050 | ||||
| 90080-10279 | ||||
| 90080-10280 | ||||
| 90099-00259 | ||||
| 90119-T0038 | ||||
| 90179-06156 | ||||
| 91511-60635 | ||||
| 91511-G0625 | ||||
| 91631-J0612 | ||||
| 93381-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

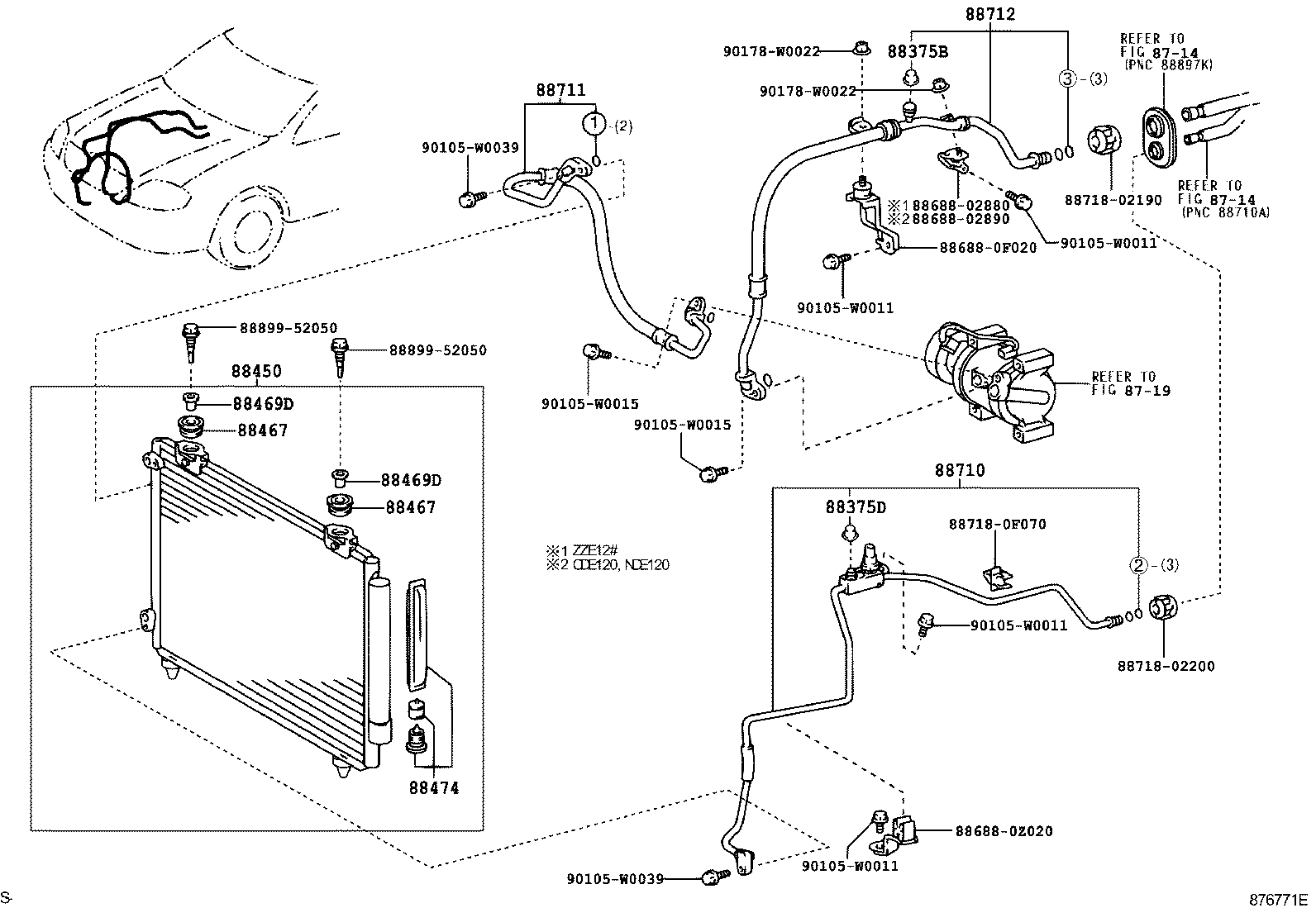

ILLUST NO. 1 OF 2(0406- )UKP..LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZE12#..UKP..LHD |
1 | ||
| 88375-30290 |
ZZE12#..UKP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDE120,ZZE12#..UKP |
1 | ||
| 88375-30280 |
ZZE12#..UKP |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02250 |
CDE120,NDE120,ZZE12#..UKP MAKER OPTION |
1 | ||
| 88450-02150 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 88474-47010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-02660 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-02200 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88704-02500 |
ZZE12#..UKP..LHD MAKER OPTION |
1 | ||
| Common parts | ||||
| 88688-02880 | ||||
| 88688-02890 | ||||
| 88688-0F020 | ||||
| 88688-0Z020 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-0F070 | ||||
| 88899-52050 | ||||
| 90105-W0011 | ||||
| 90105-W0015 | ||||
| 90105-W0039 | ||||
| 90178-W0022 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

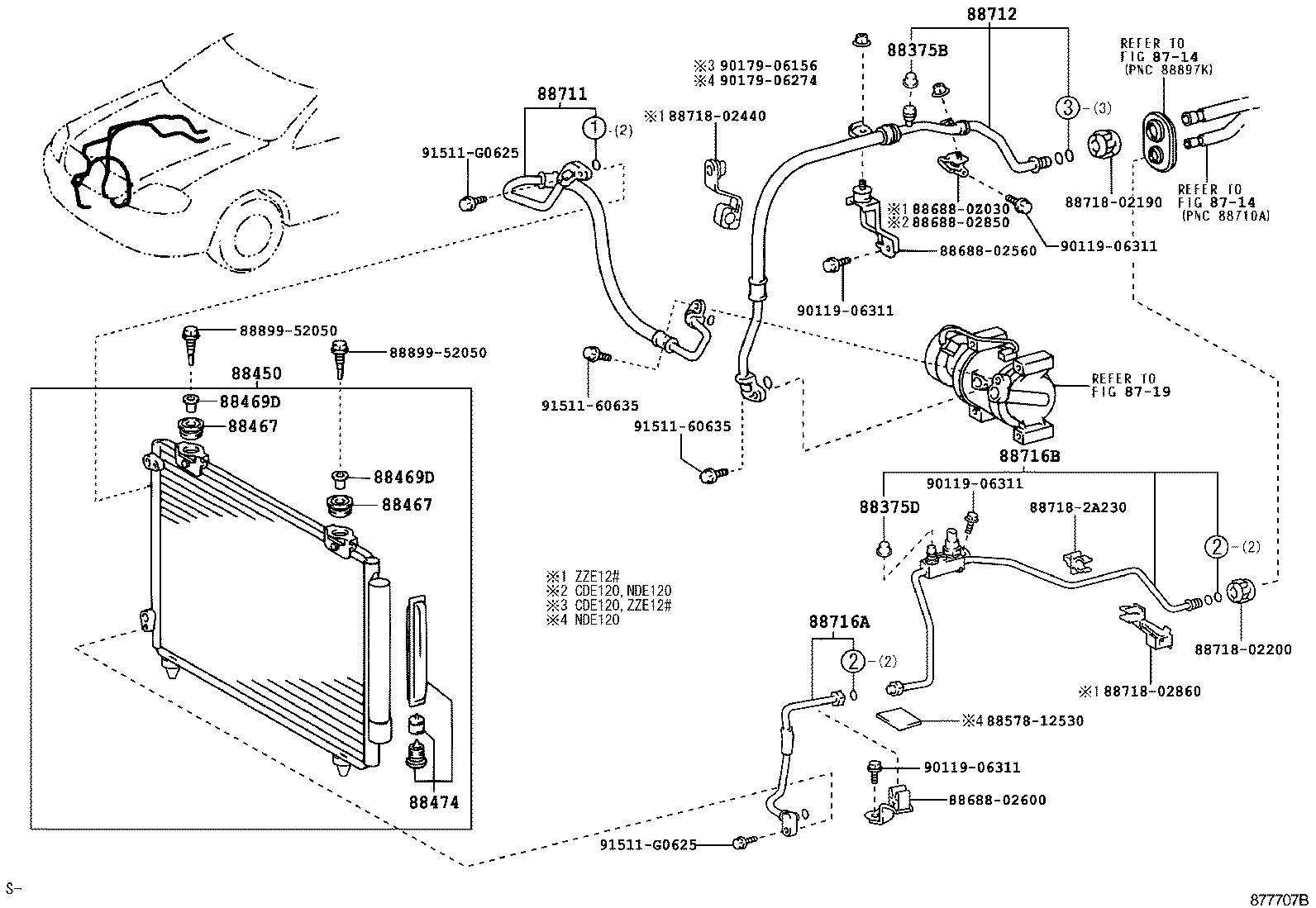

ILLUST NO. 1 OF 2(0406- )UKP..LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZE12#..UKP..LHD |
1 | ||
| 88375-30290 |
ZZE12#..UKP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
CDE120,ZZE12#..UKP |
1 | ||
| 88375-30280 |
ZZE12#..UKP |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02250 |
CDE120,NDE120,ZZE12#..UKP MAKER OPTION |
1 | ||
| 88450-02150 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 88474-47010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-02090 |
ZZE12#..UKP |
1 | ||
| 88703-02260 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88703-02090 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA DEALER OPTION |
1 | ||
| 88703-02170 |
ZZE12#..UKP MAKER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-02200 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 88704-02500 |
ZZE12#..UKP..LHD MAKER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-02480 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88716-02300 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-02340 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| Common parts | ||||
| 88578-12530 | ||||
| 88688-02560 | ||||
| 88688-02600 | ||||
| 88688-02850 | ||||
| 88688-0Z030 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02440 | ||||
| 88718-02860 | ||||
| 88718-2A230 | ||||
| 88899-52050 | ||||
| 90119-06311 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 91511-60635 | ||||
| 91511-G0625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
