ZZE121L-DEMNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

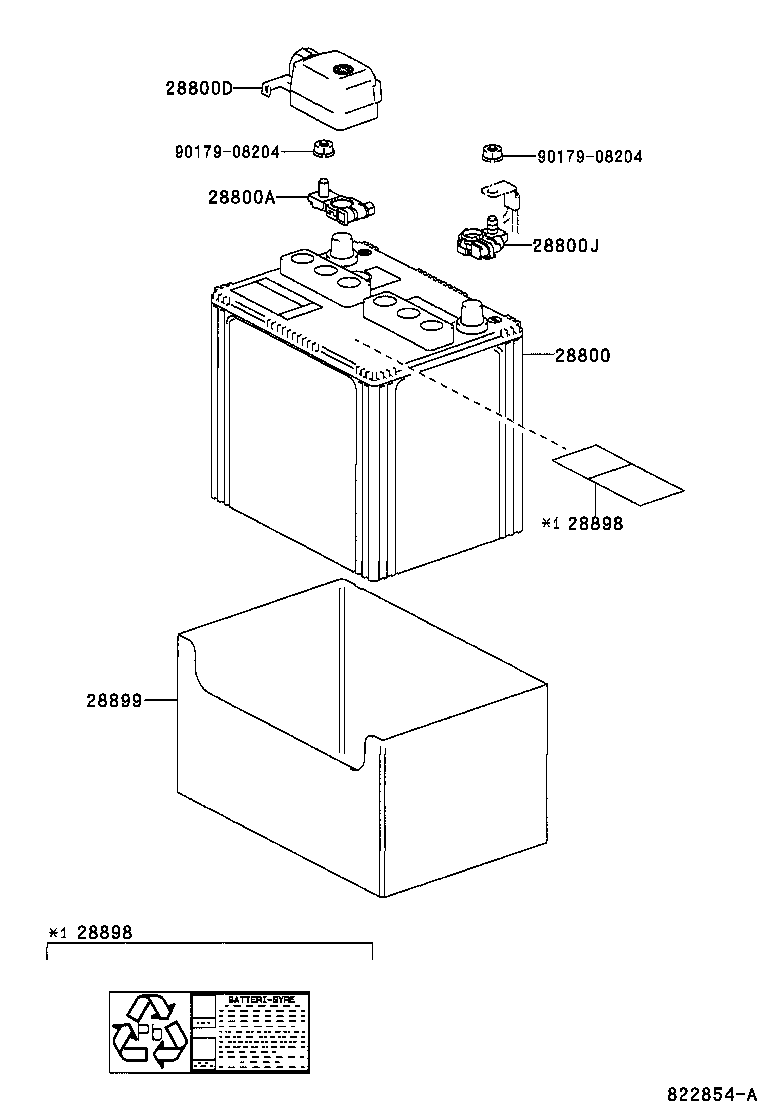

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28898 28898 28899 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-0D130

3ZZFE,4ZZFE..ZZE12#..UKP

LN1

 1
28800-0D140

3ZZFE,4ZZFE..ZZE12#..UKP

LN2

 1
28800-0D140

1NDTV,3ZZFE,4ZZFE..NDE120,ZZE12#..UKP

LN2

 1
28800-0D130

3ZZFE,4ZZFE..ZZE12#..UKP

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA

 1
90982-05056

1CDFTV,1NDTV,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500

4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA

 1
82821-12500

3ZZFE,4ZZFE..ZZE12#..UKP

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028

4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA

 1
90982-06028

1CDFTV,1NDTV,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP

 1
28898 - PLATE, BATTERY
28898-0B010

4ZZFE..ZZE120..UKP..LHD;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..LHD..SED..TERRA;3ZZFE..ZZE121..UKP..LHD..WG..5F..TERRA

 1
28898-0B010

1CDFTV,1NDTV,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP..LHD

 1
28898 - PLATE, BATTERY
28898-0B010

4ZZFE..ZZE120..UKP..LHD;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..LHD..SED..TERRA;3ZZFE..ZZE121..UKP..LHD..WG..5F..TERRA

 1
28898-0B010

1CDFTV,1NDTV,3ZZFE,4ZZFE..CDE120,NDE120,ZZE12#..UKP..LHD

 1
Common parts
90179-08204
