ZZE121L-DEMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)
Production
Jan 2002
-
Feb 2007
Engine
3ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0201-0406)UKP ; (0406- )UKP

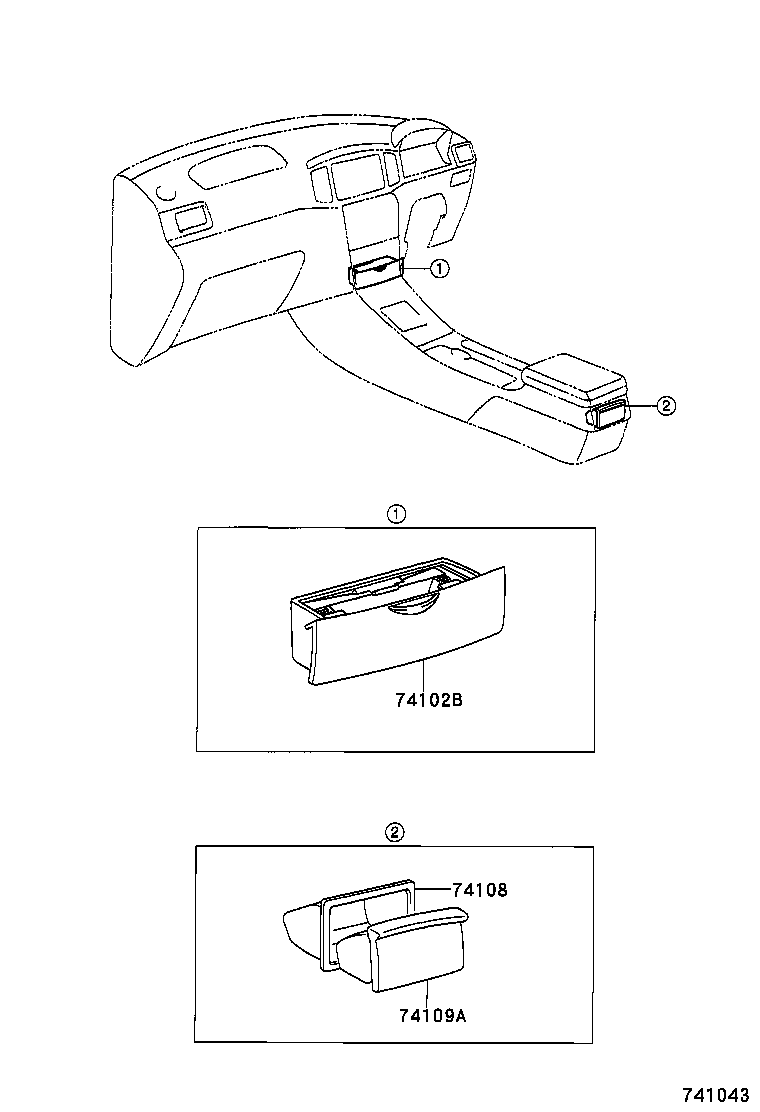

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74102-02090B1 |
CDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 74102-02090B1 |
CDE120,NDE120,ZZE12#..UKP..SOL GRAPHIC CARBON,TRIM1# |
1 | ||
| 74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE | ||||
| 74108-28010 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (J) |
1 | ||
| 74108-28010 |
CDE120,NDE120,ZZE12#..UKP (J) |
1 | ||
| 74108-02020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (L) |
1 | ||
| 74108-02020 |
CDE120,NDE120,ZZE12#..UKP (L) |
1 | ||
| 74109A - BOX SUB-ASSY, ASH RECEPTACLE | ||||
| 74109-28010B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
| 74109-02050B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 74109-02050B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(L) |
1 | ||
| 74109-28010B3 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1#,(J) |
1 | ||
