ZZE121L-DEMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)

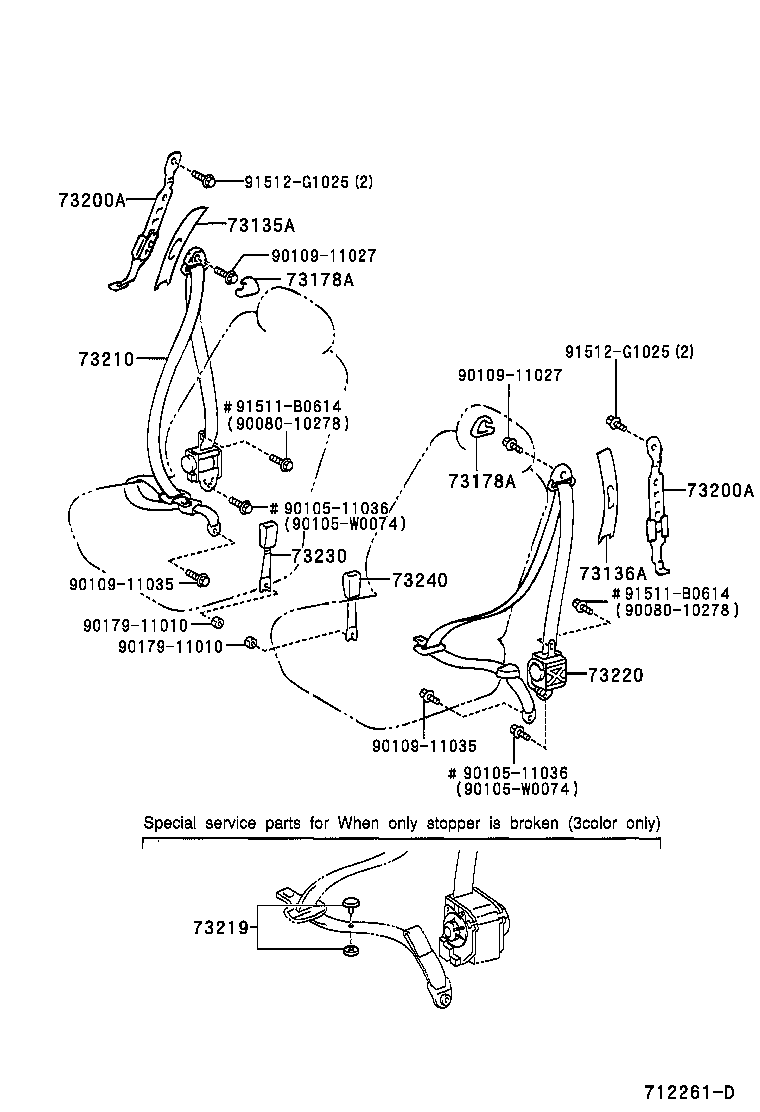

ILLUST NO. 1 OF 2(0201-0401)UKP
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02120C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02120C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73210-02202C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02202C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73210-02200C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02110C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73220-02110C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02210C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02280B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02270B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| Common parts | ||||
| 90080-10278 | ||||
| 90105-11036 | ||||
| 90105-W0074 | ||||
| 90109-11027 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

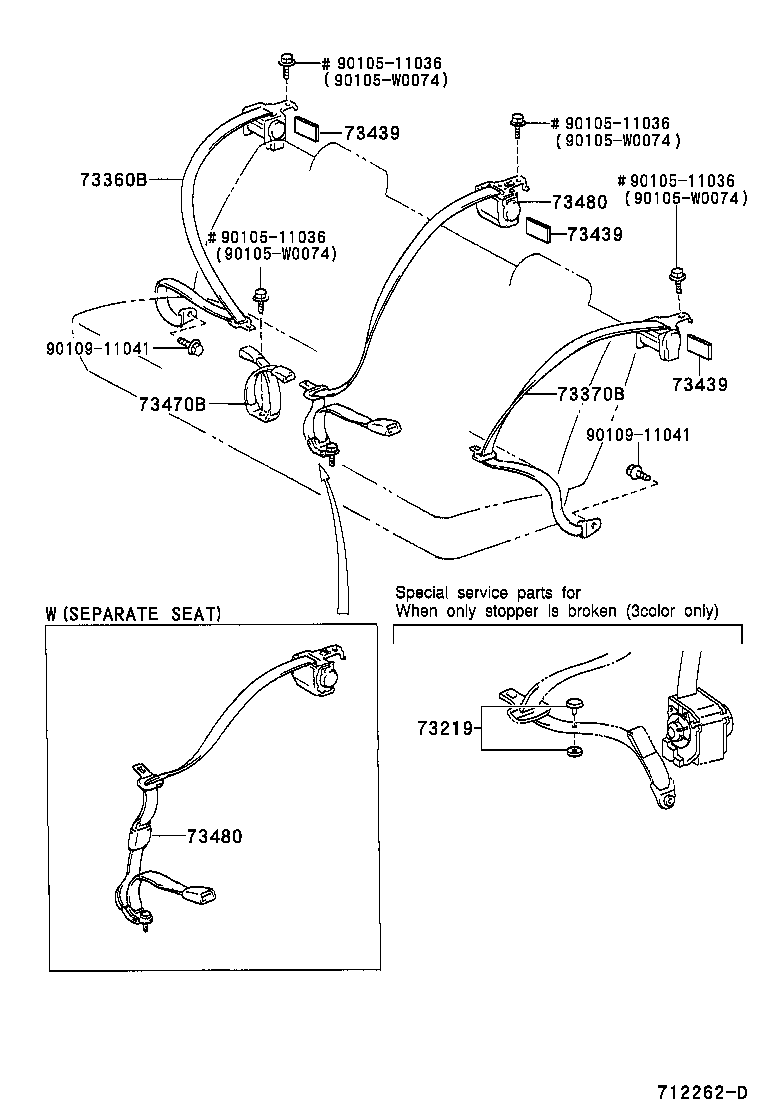

ILLUST NO. 2 OF 2(0201- )UKP..SED
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02180C1 |
CDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02180C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02180C0 |
CDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02181C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02180C0 |
CDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02181C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02180C1 |
CDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73360-02180C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-02020 |
CDE120,ZZE12#..UKP..SED |
3 | ||
| 73439-02020 |
CDE120,NDE120,ZZE12#..UKP..SED |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-02020 |
CDE120,ZZE12#..UKP..SED |
3 | ||
| 73439-02020 |
CDE120,NDE120,ZZE12#..UKP..SED |
3 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-02020 |
CDE120,ZZE12#..UKP..SED |
3 | ||
| 73439-02020 |
CDE120,NDE120,ZZE12#..UKP..SED |
3 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-02100C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73470-02100C0 |
CDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73470-02101C1 |
CDE120,NDE120,ZZE12#..UKP..SED BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02130C0 |
CDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| 73480-02130C1 |
CDE120,NDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| 73480-02131C1 |
CDE120,NDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02130C0 |
CDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| 73480-02130C1 |
CDE120,NDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| 73480-02131C1 |
CDE120,NDE120,ZZE12#..UKP..SED W(6:4 SPRIT REAR SEAT),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-W0074 | ||||
| 90109-11041 | ||||

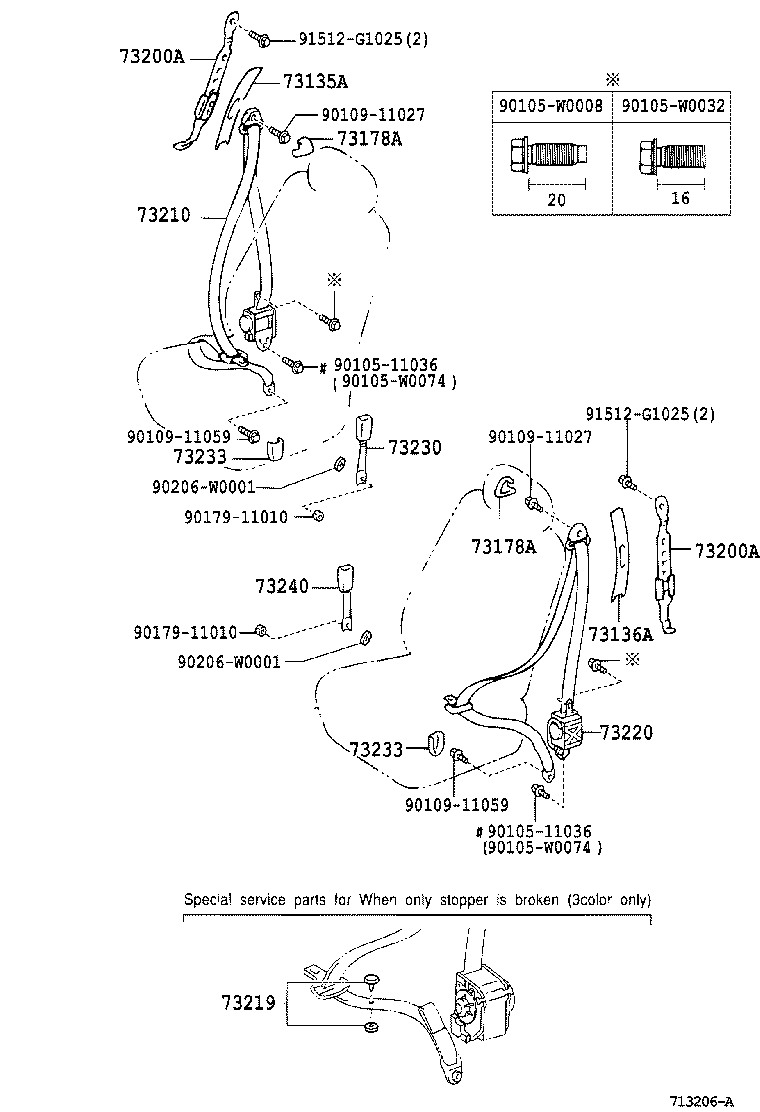

ILLUST NO. 1 OF 2(0406- )UKP
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02120C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02120C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73210-02202C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02202C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73210-02200C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02110C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73220-02110C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02210C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02280B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 73233-52010B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM15 |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 73233-52010B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM15 |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02270B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-W0008 | ||||
| 90105-W0032 | ||||
| 90105-W0074 | ||||
| 90109-11027 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 90206-W0001 | ||||
| 91512-G1025 | ||||

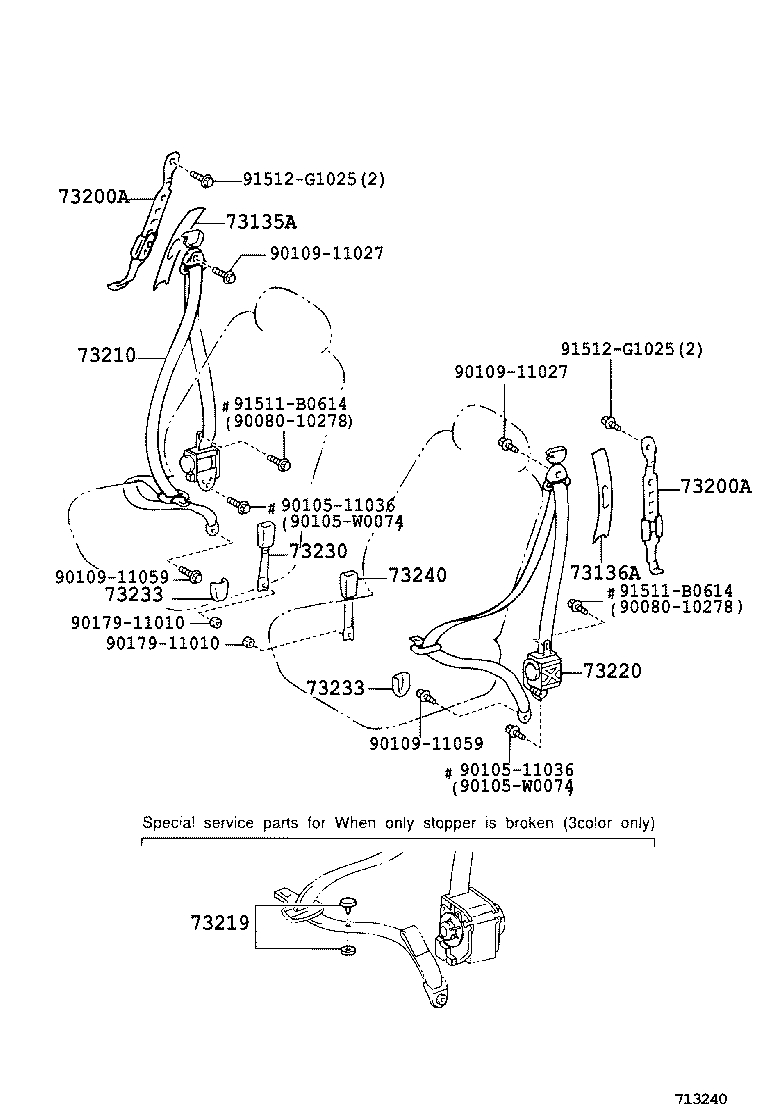

ILLUST NO. 1 OF 2(0401-0406)UKP
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02030B0 |
CDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
1 | ||
| 73237-02030B0 |
CDE120,NDE120,ZZE12#..UKP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02010B2 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,NDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73200-02080B0 |
CDE120,ZZE12#..UKP LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02120C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02120C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73210-02202C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73210-02202C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73210-02200C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..UKP GRAY |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33030 |
CDE120,NDE120,ZZE12#..UKP BEIGE |
1 | ||
| 73219-33010 |
CDE120,NDE120,ZZE12#..UKP BLACK |
1 | ||
| 73219-33020 |
CDE120,NDE120,ZZE12#..UKP GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02110C0 |
CDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73220-02110C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02210C1 |
CDE120,ZZE12#..UKP BLACK,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73220-02212C1 |
CDE120,NDE120,ZZE12#..UKP BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02280B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 73233-52010B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM15 |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010B1 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
2 | ||
| 73233-52010B1 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM15 |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02120B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=EXXXXXX |
1 | ||
| 73230-02270B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02220B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1#,FRAME NO.=RXXXXXX |
1 | ||
| Common parts | ||||
| 90080-10278 | ||||
| 90105-11036 | ||||
| 90105-W0074 | ||||
| 90109-11027 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
