Toyota Corolla sed/wg (ukp) ZZE121 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
EU
COROLLA SED/WG (UKP)
ZZE121L-DEMNKW (2002)
5102 - SUSPENSION CROSSMEMBER & UNDER COVER

ZZE121L-DEMNKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

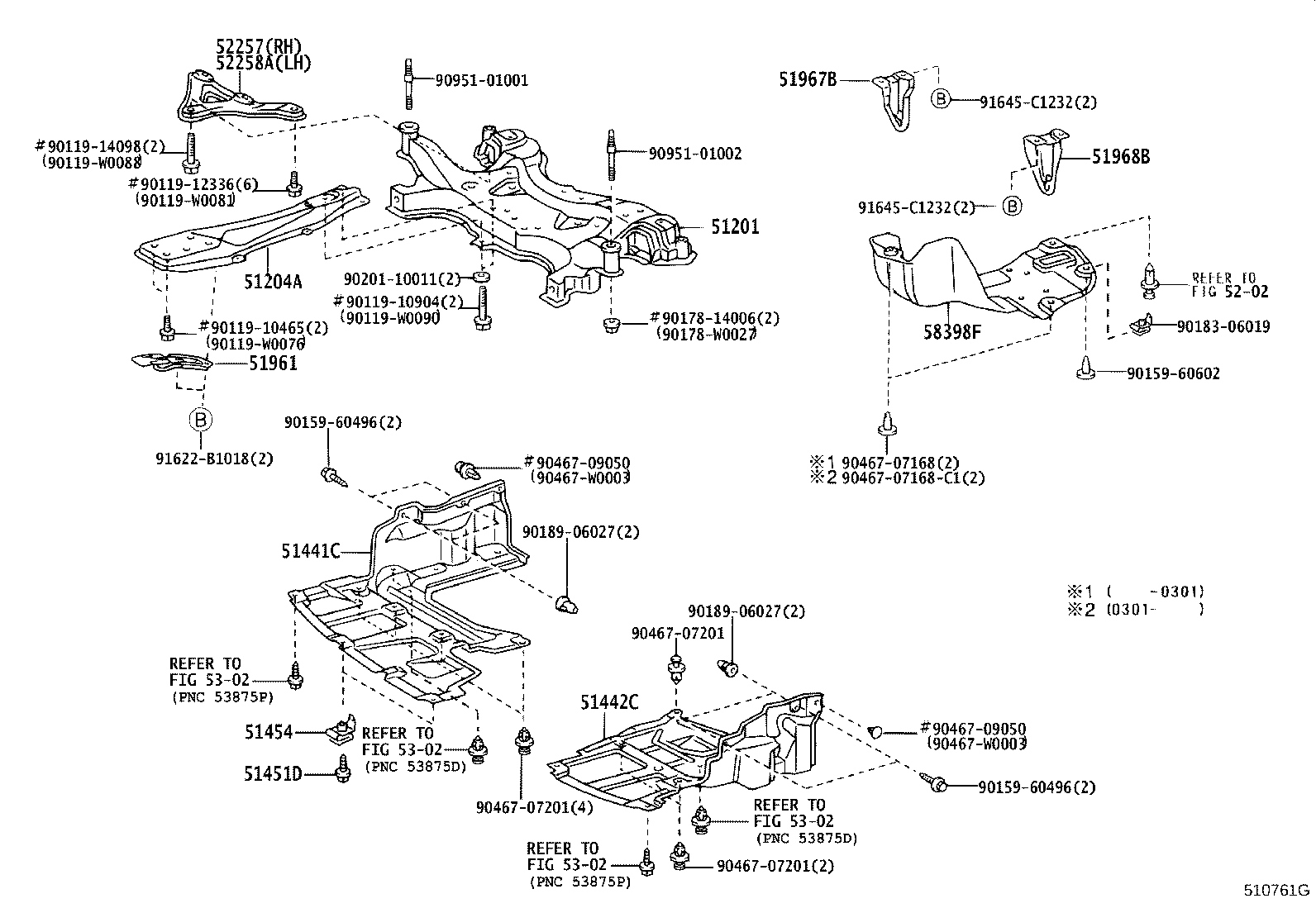

(0201-0406)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0F010	CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	06/2004 - 02/2005	1
51201-0F010	CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	05/2004 - 06/2004	1
51201-02082	CDE120,ZZE12#..UKP	04/2003 - 06/2004	1
51201-02081	CDE120,ZZE12#..UKP	09/2002 - 04/2003	1
51201-0F011	CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	03/2005 - 12/2999	1
51201-02082	CDE120,NDE120,ZZE12#..UKP FRAME NO.=EXXXXXX	06/2004 - 12/2999	1
51201-02080	CDE120,ZZE12#..UKP	01/2002 - 09/2002	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-02042	CDE120,ZZE12#..UKP	01/2003 - 02/2004	1
51204-05051	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51204-02043	CDE120,ZZE12#..UKP	02/2004 - 06/2004	1
51204-02041	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
51441C - COVER, ENGINE UNDER, RH
51441-02090	ZZE12#..UKP	06/2004 - 12/2999	1
51441-02090	ZZE12#..UKP	01/2002 - 06/2004	1
51442C - COVER, ENGINE UNDER, LH
51442-02130	CDE120,ZZE12#..UKP..5F	01/2002 - 06/2004	1
51442-02130	ZZE12#..UKP..5F	06/2004 - 12/2999	1
51451D - SCREW, NO.1
90159-60488	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
90159-60488	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
51454 - CLIP
90467-05138	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
90467-05138	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
51961 - HOOK, NO.1
51960-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51960-02030	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51967B - HOOK, TRANSPORT, REAR RH
51967-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51967-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51968B - HOOK, TRANSPORT, REAR LH
51968-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51968-02030	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52257-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52258-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
58398-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90119-10465
90119-10904
90119-12336
90119-14098
90119-W0076
90119-W0081
90119-W0088
90119-W0090
90159-60496
90159-60602
90178-14006
90178-W0027
90183-06019
90189-06027
90201-10011
90467-07168
90467-07168C1
90467-07201
90467-09050
90467-W0003
90951-01001
90951-01002
91622-B1018
91645-C1232
Linked diagrams
5202
5302

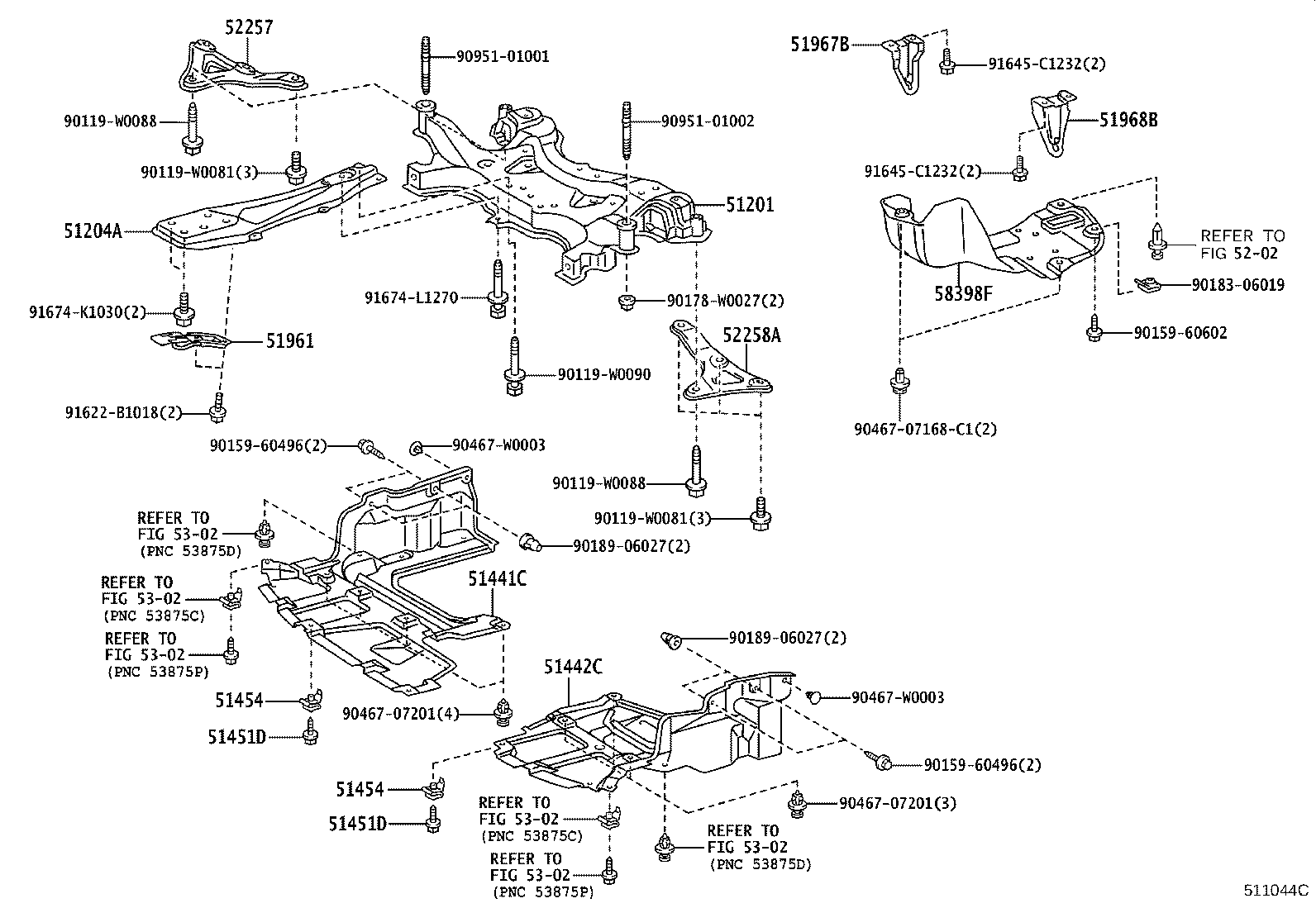

(0406- )ZZE12#..UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0F010	CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	06/2004 - 02/2005	1
51201-0F010	CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	05/2004 - 06/2004	1
51201-02082	CDE120,ZZE12#..UKP	04/2003 - 06/2004	1
51201-02081	CDE120,ZZE12#..UKP	09/2002 - 04/2003	1
51201-0F011	CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX	03/2005 - 12/2999	1
51201-02082	CDE120,NDE120,ZZE12#..UKP FRAME NO.=EXXXXXX	06/2004 - 12/2999	1
51201-02080	CDE120,ZZE12#..UKP	01/2002 - 09/2002	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-02042	CDE120,ZZE12#..UKP	01/2003 - 02/2004	1
51204-05051	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51204-02043	CDE120,ZZE12#..UKP	02/2004 - 06/2004	1
51204-02041	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
51441C - COVER, ENGINE UNDER, RH
51441-02090	ZZE12#..UKP	06/2004 - 12/2999	1
51441-02090	ZZE12#..UKP	01/2002 - 06/2004	1
51442C - COVER, ENGINE UNDER, LH
51442-02130	CDE120,ZZE12#..UKP..5F	01/2002 - 06/2004	1
51442-02130	ZZE12#..UKP..5F	06/2004 - 12/2999	1
51451D - SCREW, NO.1
90159-60488	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
90159-60488	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
51451D - SCREW, NO.1
90159-60488	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
90159-60488	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
51454 - CLIP
90467-05138	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
90467-05138	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
51454 - CLIP
90467-05138	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
90467-05138	CDE120,NDE120,ZZE12#..UKP	06/2004 - 02/2007	2
51961 - HOOK, NO.1
51960-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51960-02030	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51967B - HOOK, TRANSPORT, REAR RH
51967-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
51967-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51968B - HOOK, TRANSPORT, REAR LH
51968-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
51968-02030	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52257-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52258-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
58398-02020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90119-W0081
90119-W0088
90119-W0090
90159-60496
90159-60602
90178-W0027
90183-06019
90189-06027
90467-07168C1
90467-07201
90467-W0003
90951-01001
90951-01002
91622-B1018
91645-C1232
91674-K1030
91674-L1270
Linked diagrams
5202
5302
