ZZE121L-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

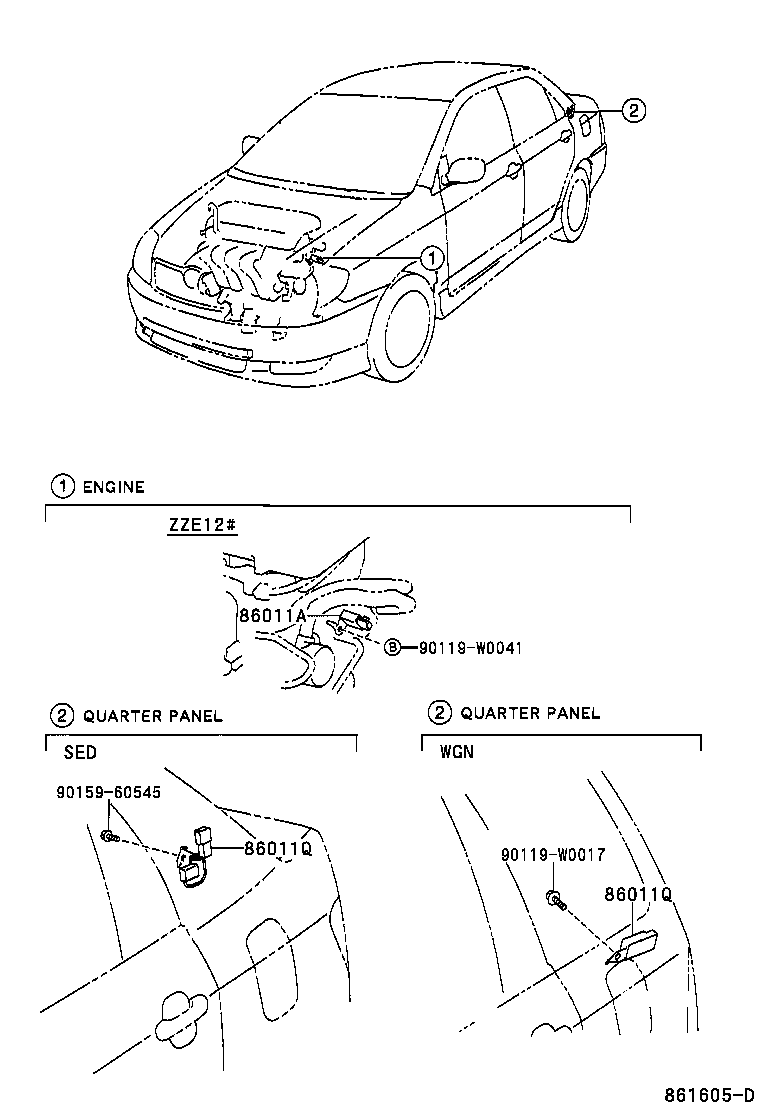

ILLUST NO. 2 OF 2(0201- )UKP

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011Q 86011Q 90119W0017 90119W0041 9015960545
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04165

ZZE12#..UKP

 1
90980-04165

ZZE12#..UKP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04162

CDE120,NDE120,ZZE12#..UKP..SED

 1
90980-04162

CDE120,ZZE12#..UKP..SED

 1
86011Q - CONDENSER, RADIO SETTING
90980-04162

CDE120,NDE120,ZZE12#..UKP..SED

 1
90980-04162

CDE120,ZZE12#..UKP..SED

 1
Common parts
90119-W0017
90119-W0041
90159-60545

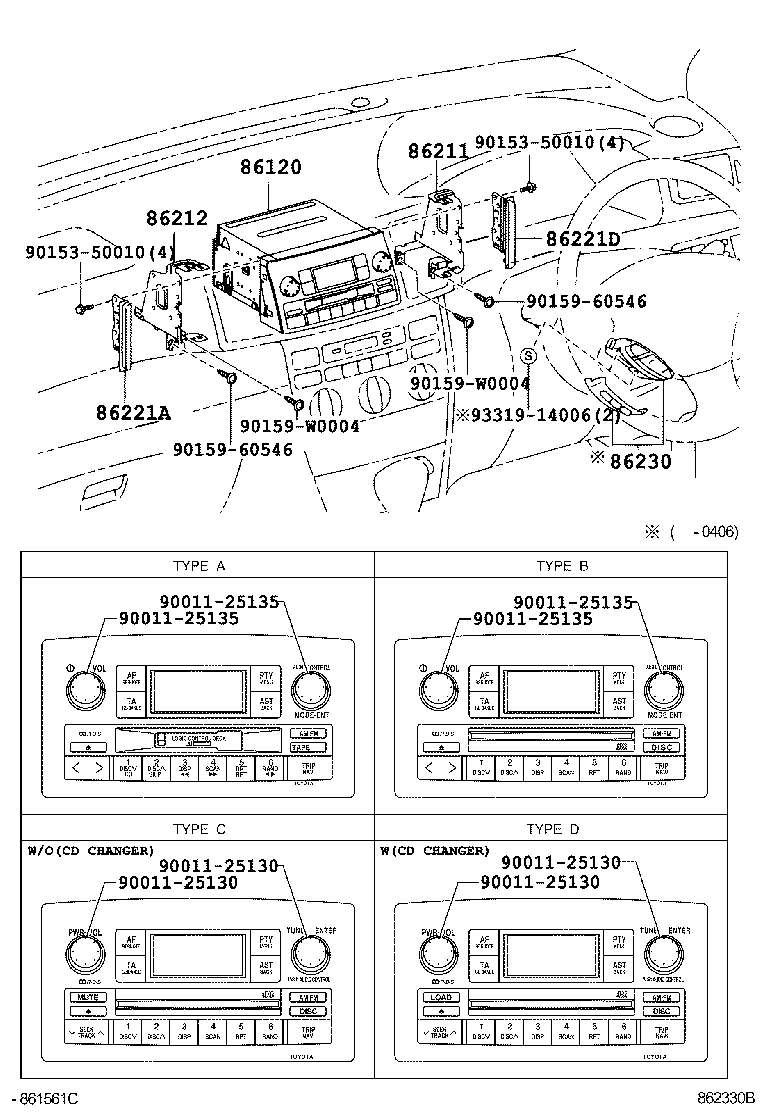

ILLUST NO. 1 OF 2(0201- )UKP

Click highlighted areas on diagram

diagram 86120 86211 86212 86221A 86221D 86230 9001125130 9001125130 9001125130 9001125130 9001125135 9001125135 9001125135 9001125135 9015350010 9015350010 9015960546 9015960546 90159W0004 90159W0004 9331914006
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02260

CDE120,ZZE12#..UKP

MATSUSHITA,ID=W58802,TYPE B:REFER TO ILLUSTRATION

 1
86120-02380

CDE120,NDE120,ZZE12#..UKP

MATSUSHITA,ID=W58814,TYPE C:REFER TO ILLUSTRATION

 1
86120-02250

CDE120,ZZE12#..UKP

MATSUSHITA,ID=W58300,TYPE A:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-02100

CDE120,ZZE12#..UKP

 1
86211-02100

CDE120,NDE120,ZZE12#..UKP

 1
86212 - BRACKET, RADIO, NO.2
86212-02100

CDE120,ZZE12#..UKP

 1
86212-02100

CDE120,NDE120,ZZE12#..UKP

 1
86221A - PANEL, RADIO RECEIVER
86221-52050

CDE120,NDE120,ZZE12#..UKP..TERRA

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

CDE120,NDE120,ZZE12#..UKP..TERRA

 1
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-13010

CDE120,ZZE12#..UKP

 1
Common parts
90011-25130
90011-25135
90153-50010
90159-60546
90159-W0004
93319-14006
