ZZE121L-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

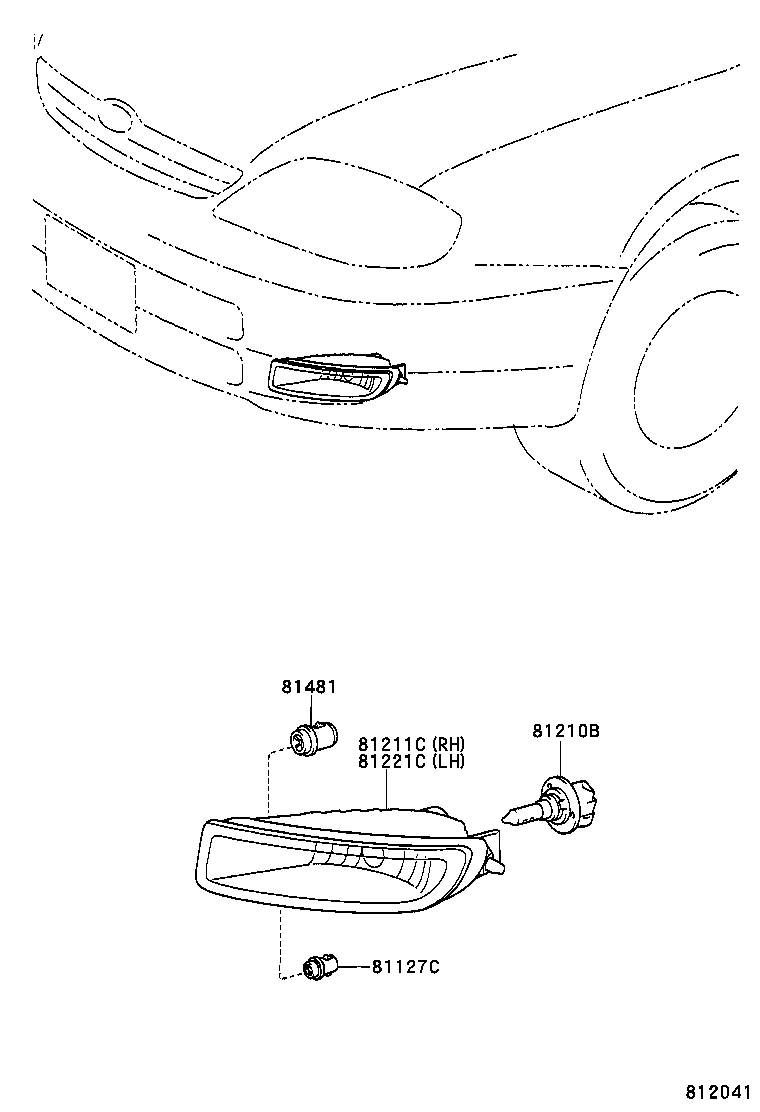

(0201-0406)UKP

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C 81481
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 2
81210B - BULB, FOG LAMP
90981-13047

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

12V 51W,HALOGEN

 2
90981-WD009

CDE120,NDE120,ZZE12#..UKP

12V 51W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-0F010

CDE120,NDE120,ZZE12#..UKP

 1
81211-12150

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81221-0F010

CDE120,NDE120,ZZE12#..UKP

 1
81481 - BRACKET, FOG LAMP
81481-10030

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 2

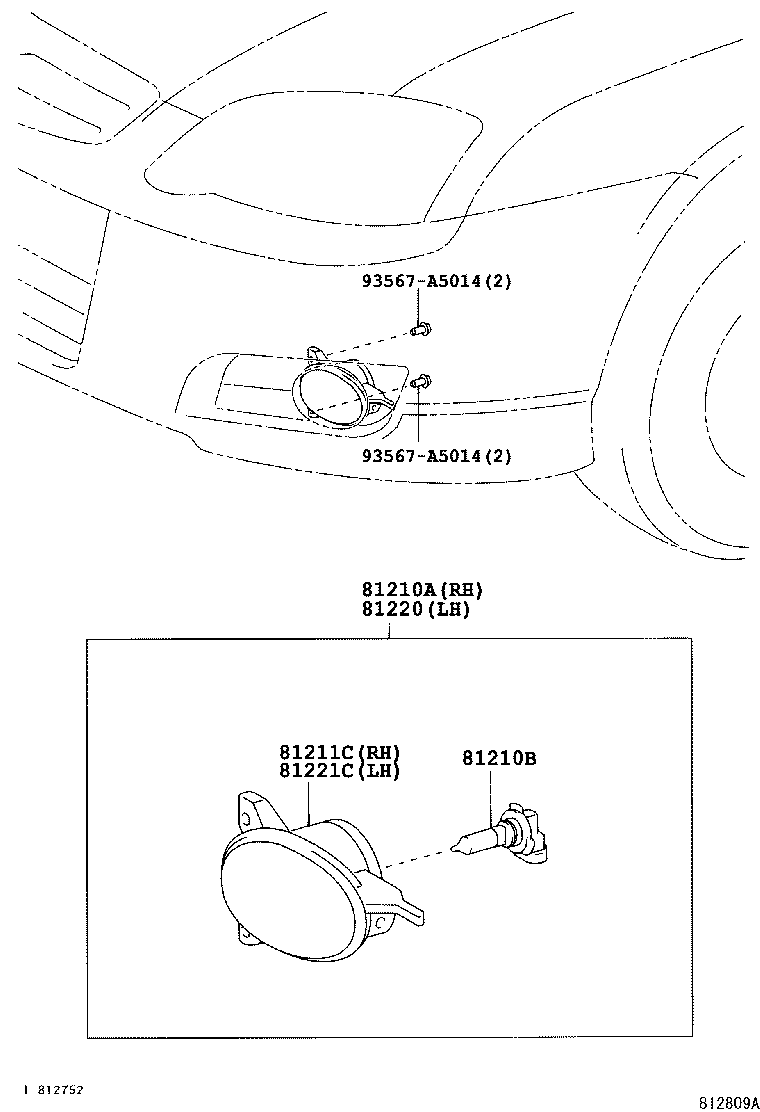

(0406- )UKP

Click highlighted areas on diagram

diagram 81210A 81210B 81211C 81220 81221C 93567A5014 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0F010

CDE120,NDE120,ZZE12#..UKP

 1
81210B - BULB, FOG LAMP
90981-13047

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

12V 51W,HALOGEN

 2
90981-WD009

CDE120,NDE120,ZZE12#..UKP

12V 51W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-0F010

CDE120,NDE120,ZZE12#..UKP

 1
81211-12150

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81220 - LAMP ASSY, FOG, LH
81220-0F010

CDE120,NDE120,ZZE12#..UKP

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81221-0F010

CDE120,NDE120,ZZE12#..UKP

 1
Common parts
93567-A5014
