Toyota Corolla sed/wg (ukp) ZZE121 MOUNTING

ZZE121L-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

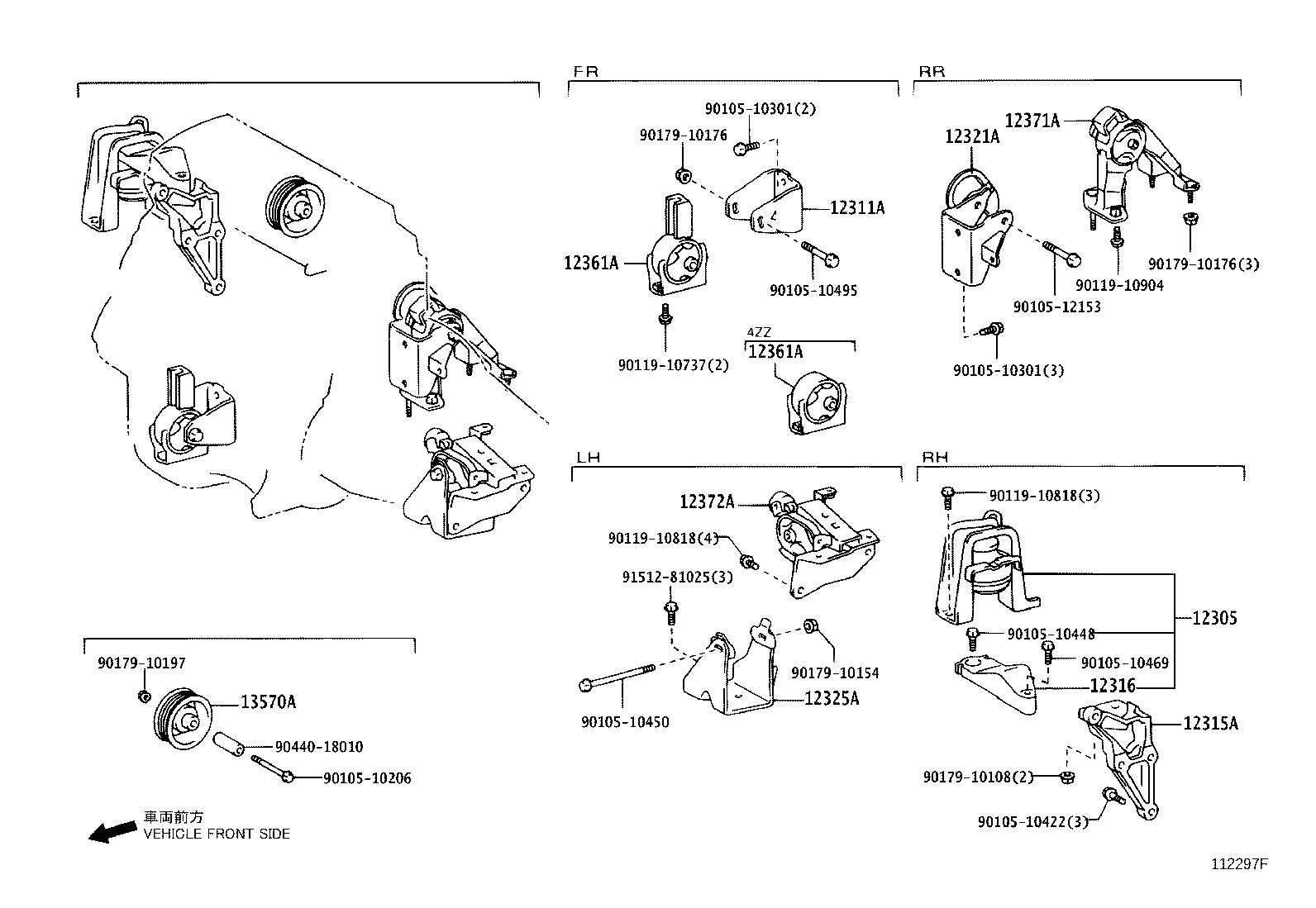

(0201-0208)3ZZFE,4ZZFE..UKP..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0D050	3ZZFE,4ZZFE..ZZE12#..UKP	08/2002 - 12/2003	1
12305-0D051	3ZZFE,4ZZFE..ZZE12#..UKP	12/2003 - 06/2004	1
12305-22150	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 08/2002	1
12305-0D051	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D060	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
12311-0D060	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22050	3ZZFE,4ZZFE..ZZE12#..UKP (J)	01/2002 - 06/2004	1
12315-0D040	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	01/2002 - 06/2004	1
12315-0D070	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	06/2004 - 12/2999	1
12315-0D040	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	06/2004 - 12/2999	1
12315-22050	3ZZFE,4ZZFE..ZZE12#..UKP (J)	06/2004 - 12/2999	1
12315-0D070	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	01/2003 - 06/2004	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-22100	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 08/2002	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 06/2005	1
12321-0D091	3ZZFE,4ZZFE..ZZE12#..UKP..5F	07/2005 - 12/2999	1
12321-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22090	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12325-22090	3ZZFE..ZZE121..UKP..5F	01/2002 - 06/2004	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D110	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12361-0D080	3ZZFE..ZZE121..UKP..5F	01/2002 - 03/2002	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	03/2002 - 07/2002	1
12361-0D080	3ZZFE..ZZE121..UKP..5F (L)	03/2002 - 07/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F (L)	04/2003 - 06/2004	1
12361-0D110	3ZZFE..ZZE121..UKP..5F	01/2003 - 04/2003	1
12361-0D081	3ZZFE..ZZE121..UKP..5F	07/2002 - 01/2003	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	04/2003 - 06/2004	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D110	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12361-0D080	3ZZFE..ZZE121..UKP..5F	01/2002 - 03/2002	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	03/2002 - 07/2002	1
12361-0D080	3ZZFE..ZZE121..UKP..5F (L)	03/2002 - 07/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F (L)	04/2003 - 06/2004	1
12361-0D110	3ZZFE..ZZE121..UKP..5F	01/2003 - 04/2003	1
12361-0D081	3ZZFE..ZZE121..UKP..5F	07/2002 - 01/2003	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	04/2003 - 06/2004	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12371-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D080	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12372-0D080	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 12/2999	1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-22010	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
13570-22010	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
Common parts
90105-10206
90105-10301
90105-10422
90105-10448
90105-10450
90105-10469
90105-10495
90105-12153
90119-10737
90119-10818
90119-10904
90179-10108
90179-10154
90179-10176
90179-10197
90440-18010
91512-81025

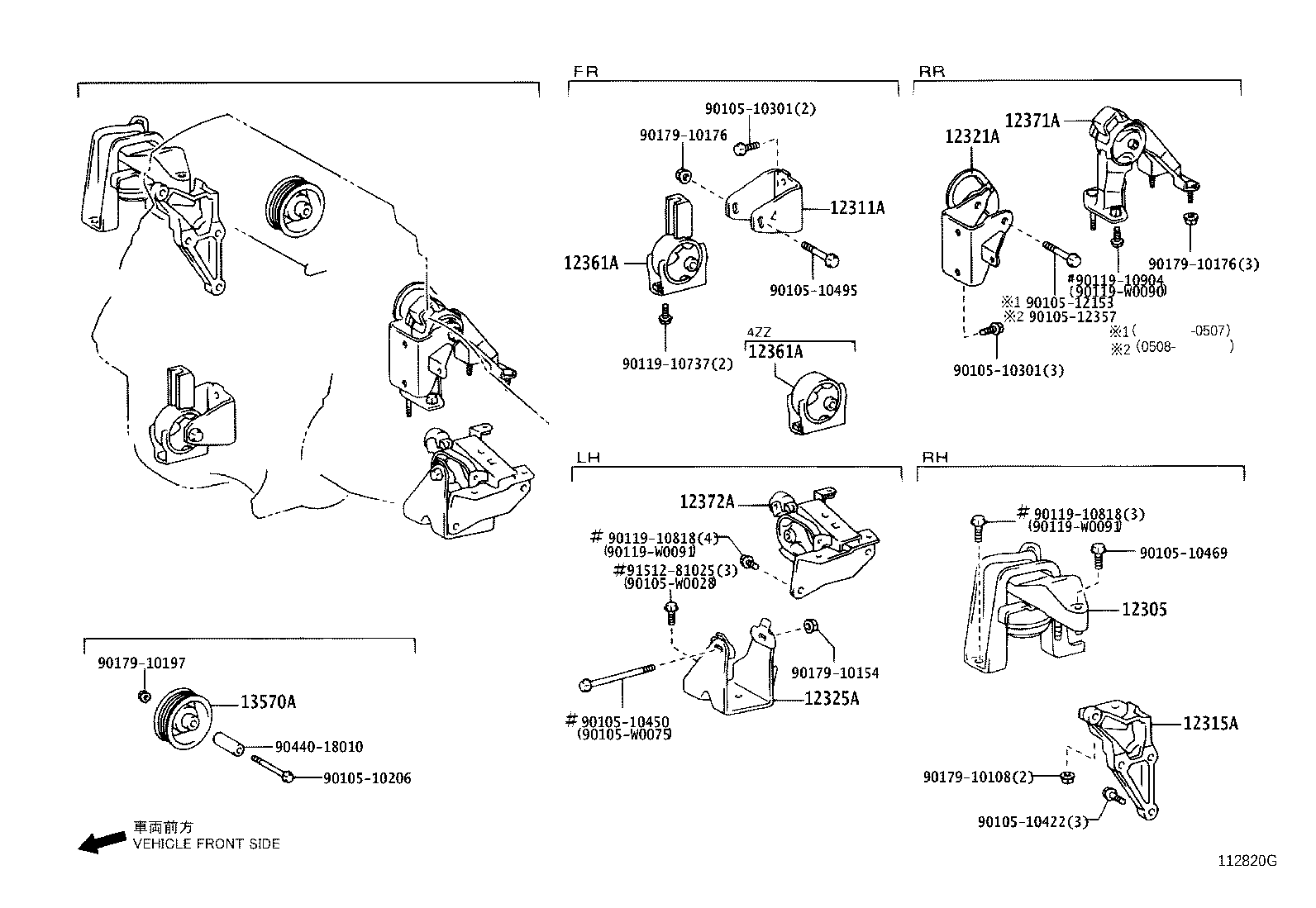

(0208- )3ZZFE,4ZZFE..UKP..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0D050	3ZZFE,4ZZFE..ZZE12#..UKP	08/2002 - 12/2003	1
12305-0D051	3ZZFE,4ZZFE..ZZE12#..UKP	12/2003 - 06/2004	1
12305-22150	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 08/2002	1
12305-0D051	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D060	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
12311-0D060	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22050	3ZZFE,4ZZFE..ZZE12#..UKP (J)	01/2002 - 06/2004	1
12315-0D040	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	01/2002 - 06/2004	1
12315-0D070	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	06/2004 - 12/2999	1
12315-0D040	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=UXXXXXX-WXXXXXX,(L)	06/2004 - 12/2999	1
12315-22050	3ZZFE,4ZZFE..ZZE12#..UKP (J)	06/2004 - 12/2999	1
12315-0D070	3ZZFE,4ZZFE..ZZE12#..UKP ENGINE NO.=EXXXXXX-FXXXXXX,(L)	01/2003 - 06/2004	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 06/2005	1
12321-0D091	3ZZFE,4ZZFE..ZZE12#..UKP..5F	07/2005 - 12/2999	1
12321-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22090	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12325-22090	3ZZFE..ZZE121..UKP..5F	01/2002 - 06/2004	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D110	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12361-0D080	3ZZFE..ZZE121..UKP..5F	01/2002 - 03/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F	01/2003 - 04/2003	1
12361-0D081	3ZZFE..ZZE121..UKP..5F	07/2002 - 01/2003	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	03/2002 - 07/2002	1
12361-0D080	3ZZFE..ZZE121..UKP..5F (L)	03/2002 - 07/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F (L)	04/2003 - 06/2004	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	04/2003 - 06/2004	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D110	3ZZFE..ZZE121..UKP..5F	06/2004 - 12/2999	1
12361-0D080	3ZZFE..ZZE121..UKP..5F	01/2002 - 03/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F	01/2003 - 04/2003	1
12361-0D081	3ZZFE..ZZE121..UKP..5F	07/2002 - 01/2003	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	03/2002 - 07/2002	1
12361-0D080	3ZZFE..ZZE121..UKP..5F (L)	03/2002 - 07/2002	1
12361-0D110	3ZZFE..ZZE121..UKP..5F (L)	04/2003 - 06/2004	1
12361-22080	3ZZFE..ZZE121..UKP..5F (J)	04/2003 - 06/2004	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12371-0D090	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D080	3ZZFE,4ZZFE..ZZE12#..UKP..5F	01/2002 - 06/2004	1
12372-0D080	3ZZFE,4ZZFE..ZZE12#..UKP..5F	06/2004 - 12/2999	1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-22010	3ZZFE,4ZZFE..ZZE12#..UKP	06/2004 - 12/2999	1
13570-22010	3ZZFE,4ZZFE..ZZE12#..UKP	01/2002 - 06/2004	1
Common parts
90105-10206
90105-10301
90105-10422
90105-10450
90105-10469
90105-10495
90105-12153
90105-12357
90105-W0028
90105-W0075
90119-10737
90119-10818
90119-10904
90119-W0090
90119-W0091
90179-10108
90179-10154
90179-10176
90179-10197
90440-18010
91512-81025
