ZZE120R-DEMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

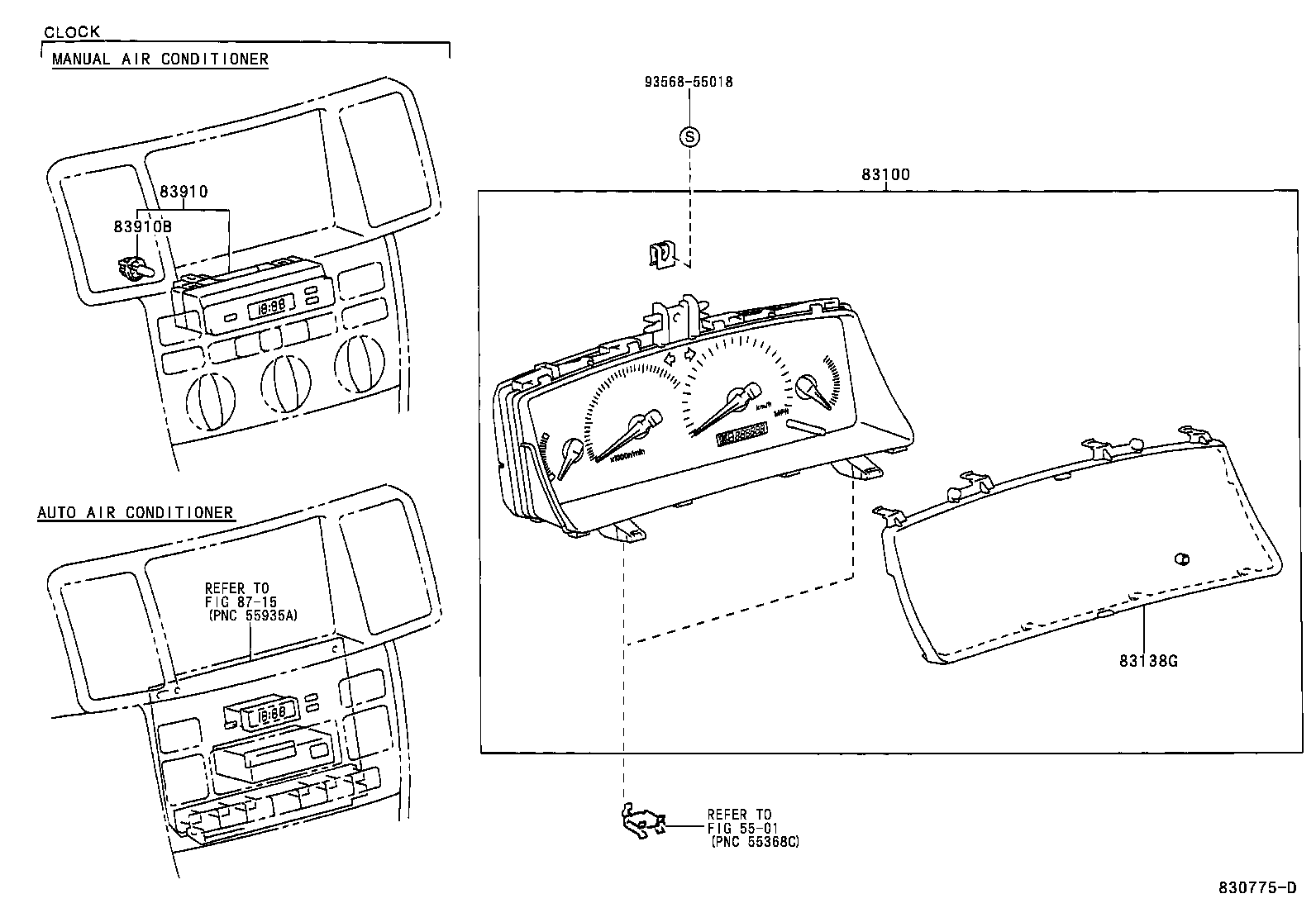

| 83100 - METER ASSY, COMBINATION | ||||
| 83800-02820 |
ZZE12#..UKP..RHD..TERRA ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83800-02780 |
ZZE12#..UKP..RHD..TERRA OPTITRON METER,MILE/H+KM/H |
1 | ||
| 83800-02750 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA OPTITRON METER,KM/H |
1 | ||
| 83800-02D00 |
ZZE12#..UKP..TERRA ANALOGUE METER,KM/H |
1 | ||
| 83800-02C80 |
ZZE12#..UKP..RHD OPTITRON METER,MILE/H+KM/H |
1 | ||
| 83800-02D20 |
ZZE12#..UKP..RHD ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83800-02800 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA ANALOGUE METER,KM/H |
1 | ||
| 83800-02C50 |
ZZE12#..UKP OPTITRON METER,KM/H |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-02740 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA OPTITRON METER |
1 | ||
| 83852-02800 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA ANALOGUE METER |
1 | ||
| 83852-02740 |
CDE120,ZZE12#..UKP OPTITRON METER |
1 | ||
| 83852-02800 |
CDE120,ZZE12#..UKP..TERRA ANALOGUE METER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12580 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 83910-12580 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07020 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA 14V 1.12W |
1 | ||
| 90010-07020 |
CDE120,NDE120,ZZE12#..UKP..TERRA 14V 1.12W |
1 | ||
| Common parts | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8715 | ||||
