ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

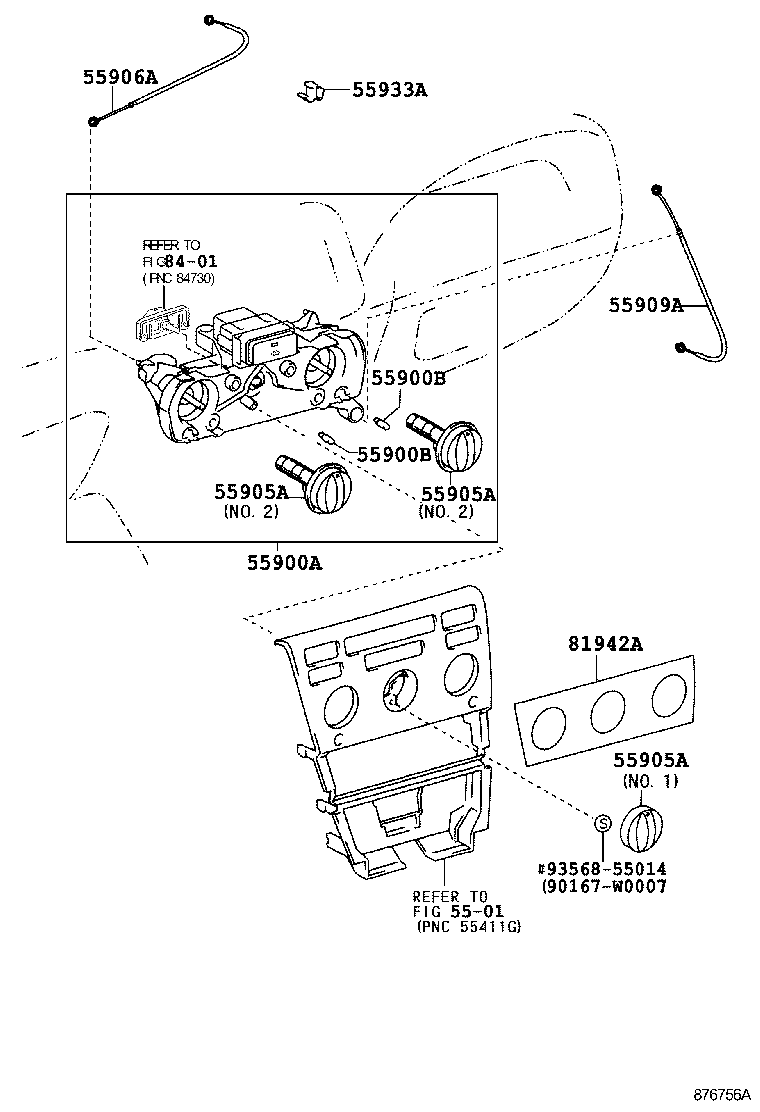

ILLUST NO. 1 OF 3(0201-0406)UKP
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-02180 |
CDE120,ZZE12#..UKP |
1 | ||
| 55900-02140 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55900-02141 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55900-02181 |
CDE120,ZZE12#..UKP |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-WB011 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP..TERRA |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-WB011 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP..TERRA |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-02060 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55906-02120 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-02060 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-02060 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-02080 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55909-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-02290 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 81942-02190 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||

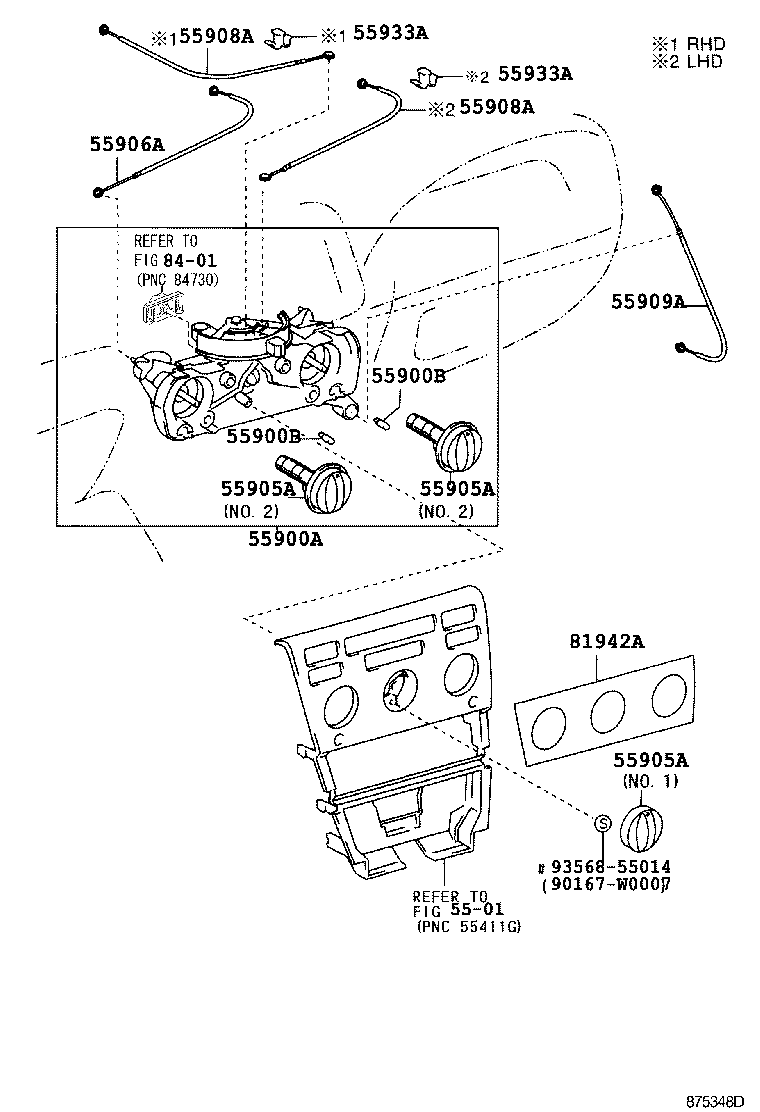

ILLUST NO. 1 OF 3(0406- )UKP
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-02180 |
CDE120,ZZE12#..UKP |
1 | ||
| 55900-02140 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55900-02141 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55900-02181 |
CDE120,ZZE12#..UKP |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-WB011 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP..TERRA |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-WB011 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP |
2 | ||
| 90069-98005 |
CDE120,ZZE12#..UKP..TERRA |
2 | ||
| 90981-WB011 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02270 |
CDE120,ZZE12#..UKP NO.2 |
2 | ||
| 55905-02160 |
CDE120,ZZE12#..UKP NO.1 |
1 | ||
| 55905-02270 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.2 |
2 | ||
| 55905-0F030 |
CDE120,NDE120,ZZE12#..UKP..TERRA NO.1 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-02060 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 55906-02120 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-02080 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55909-02050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 55933A - CLAMP, HEATER CONTROL CABLE | ||||
| 55933-0D010 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 55933-0D010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-02290 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 81942-02190 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
