ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

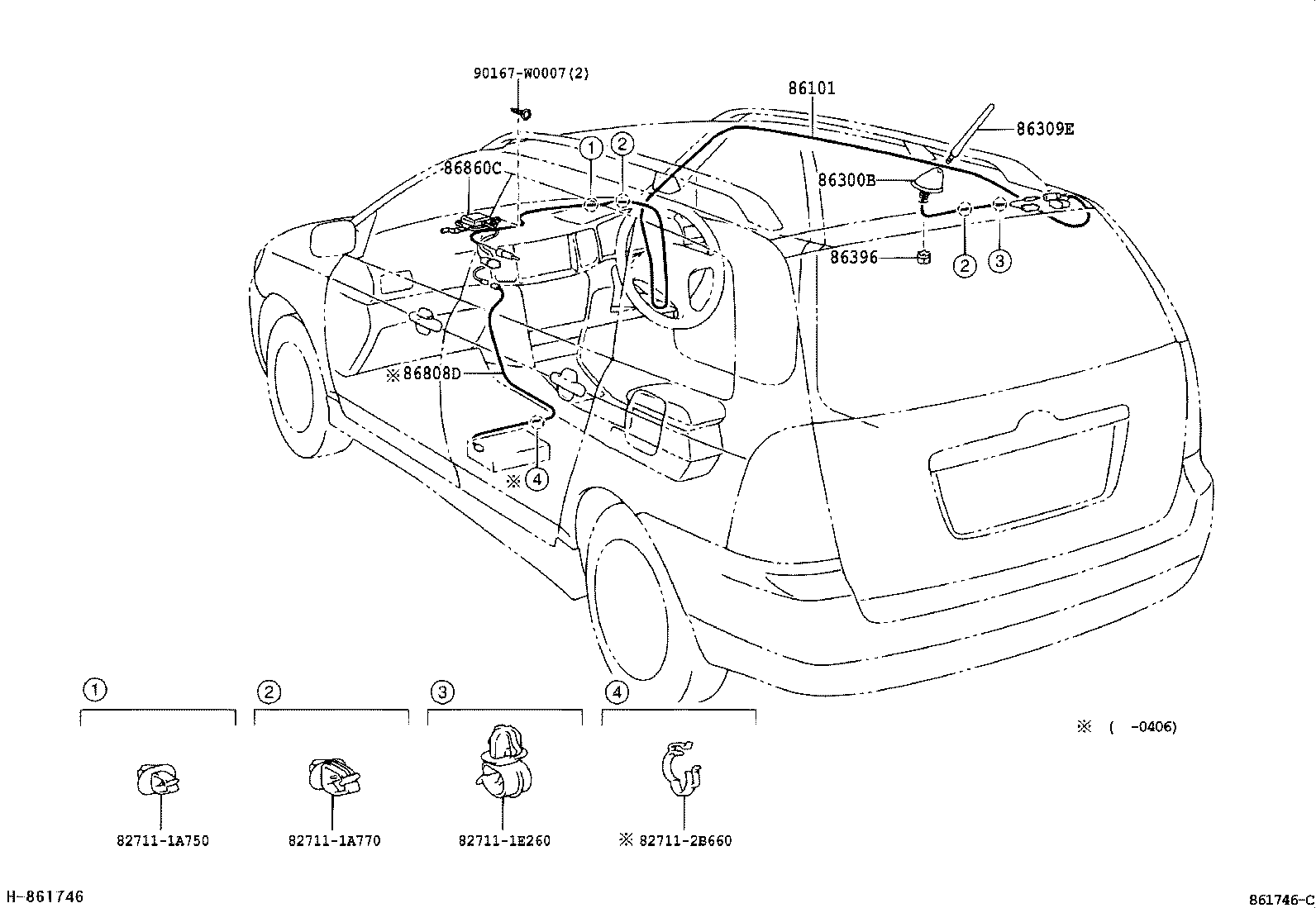

Click highlighted areas on diagram

diagram 827111A750 827111A770 827111E260 827112B660 86101 86300B 86309E 86396 86808D 86860C 90167W0007
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-02090

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 1
86101-12330

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

W(NAVIGATION SYSTEM)

 1
86101-02090

CDE120,NDE120,ZZE12#..UKP..WG

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-02120

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 1
86300-12790

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

W(NAVIGATION SYSTEM)

 1
86300-02120

CDE120,NDE120,ZZE12#..UKP..WG

 1
86300-02121

CDE120,NDE120,ZZE12#..UKP..WG

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-02040

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
86309-13010

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

W(NAVIGATION SYSTEM)

 1
86309-02040

CDE120,NDE120,ZZE12#..UKP

 1
86396 - NUT, ANTENNA
86396-12030

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

W(NAVIGATION SYSTEM)

 1
86396-02020

CDE120,NDE120,ZZE12#..UKP

 1
86396-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
86808D - CORD SUB-ASSY, NAVIGATION ANTENNA
86808-13010

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-13030

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
Common parts
82711-1A750
82711-1A770
82711-1E260
82711-2B660
90167-W0007
