ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

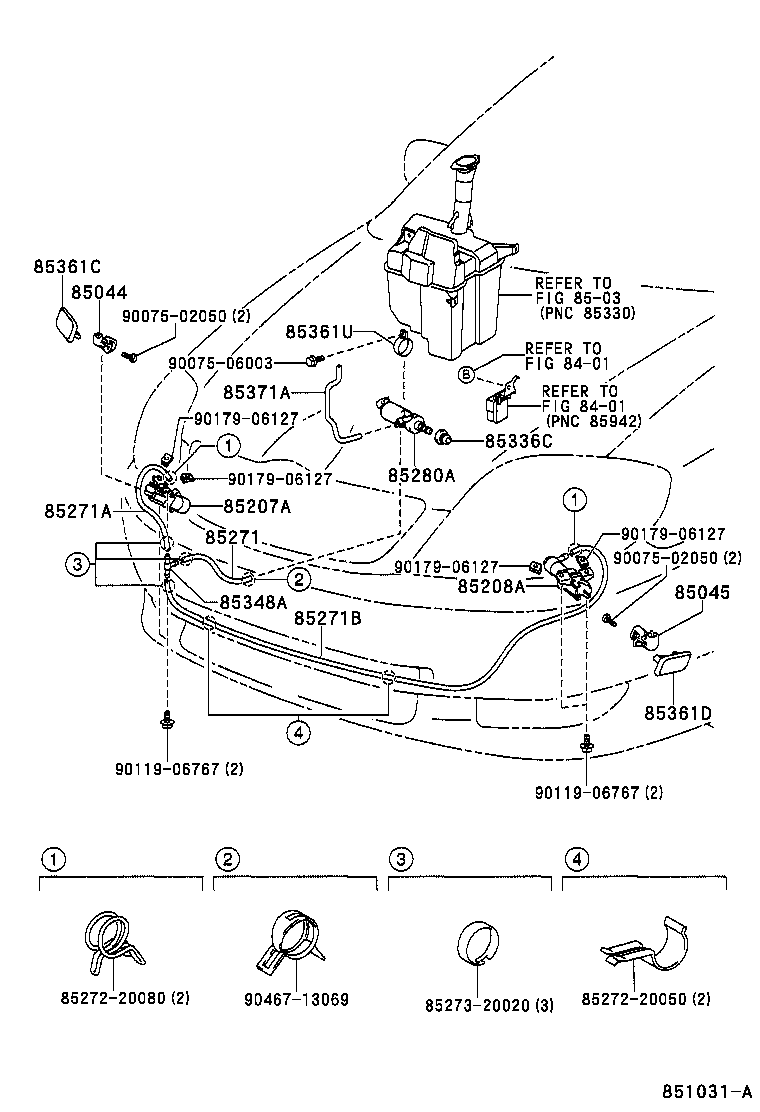

(0201-0406)UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85384-13010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85384-13010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85394-13010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85394-13010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-13020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85207-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-13020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85208-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15022 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 90075-15033 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85343-95700 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA L=135 |
1 | ||
| 90075-15034 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90445-14072 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) *H,L=1260 |
1 | ||
| 90075-15023 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-20020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85280-20020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85336-10010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85352-12010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85361C - BRACKET, WASHER | ||||
| 85361-13040 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85361-12780 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85361D - BRACKET, HEADLAMP CLEANER, NO.2 | ||||
| 85362-12770 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85362-13040 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85361U - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-33020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85361-33020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15016 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) L=250 |
1 | ||
| 90075-15016 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA L=250 |
1 | ||
| Common parts | ||||
| 85272-20050 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90075-02050 | ||||
| 90075-06003 | ||||
| 90119-06767 | ||||
| 90179-06127 | ||||
| 90467-13069 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||

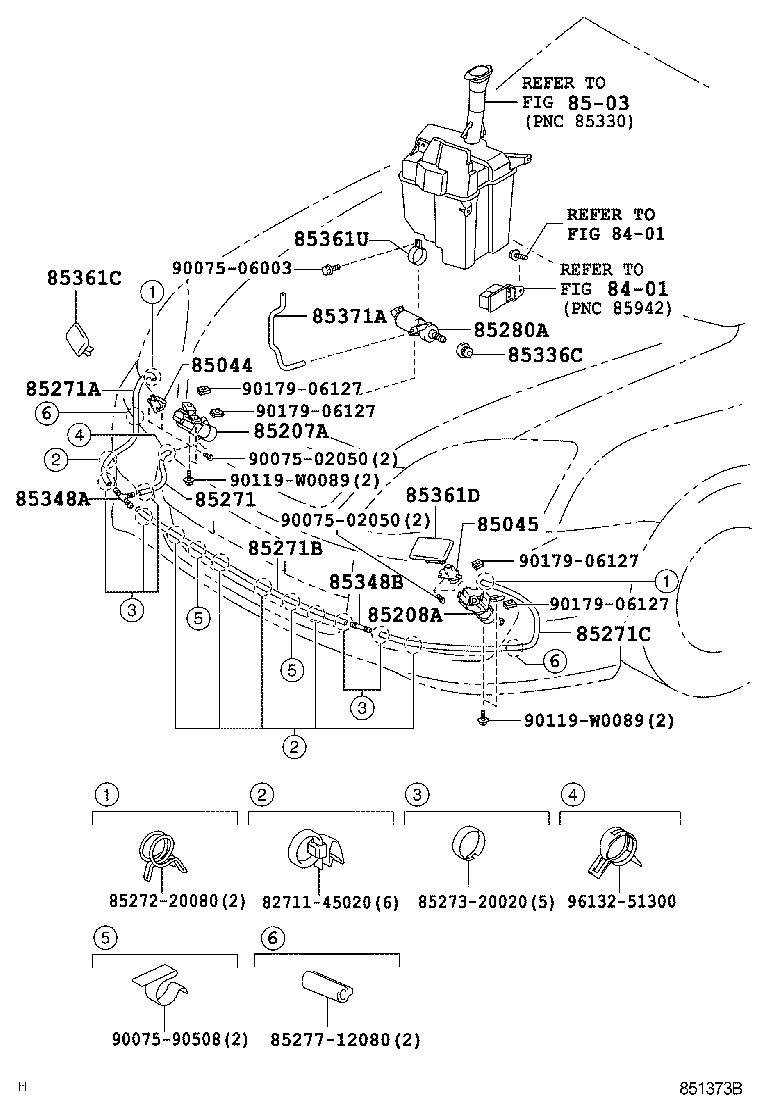

(0406- )UKP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85384-13010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85384-13010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85394-13010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85394-13010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-13020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85207-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-13020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85208-12020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15022 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 90075-15033 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85343-95700 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA L=135 |
1 | ||
| 90075-15034 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90445-14072 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) *H,L=1260 |
1 | ||
| 90075-15023 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15035 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-20020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85280-20020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85336-10010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85352-12010 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-89131 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85361C - BRACKET, WASHER | ||||
| 85361-13040 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85361-12780 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85361D - BRACKET, HEADLAMP CLEANER, NO.2 | ||||
| 85362-12770 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85362-13040 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85361U - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-33020 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 85361-33020 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15016 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) L=250 |
1 | ||
| 90075-15016 |
ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA L=250 |
1 | ||
| Common parts | ||||
| 82711-45020 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 85277-12080 | ||||
| 90075-02050 | ||||
| 90075-06003 | ||||
| 90075-90508 | ||||
| 90119-W0089 | ||||
| 90179-06127 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
