ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
ILLUST NO. 1 OF 7(0201-0406)ZZE12#..UKP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CDE120,NDE120,ZZE12#..UKP..MTM |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..UKP..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| Common parts | ||||
| 90126-08046 | ||||
| 90178-W0029 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||

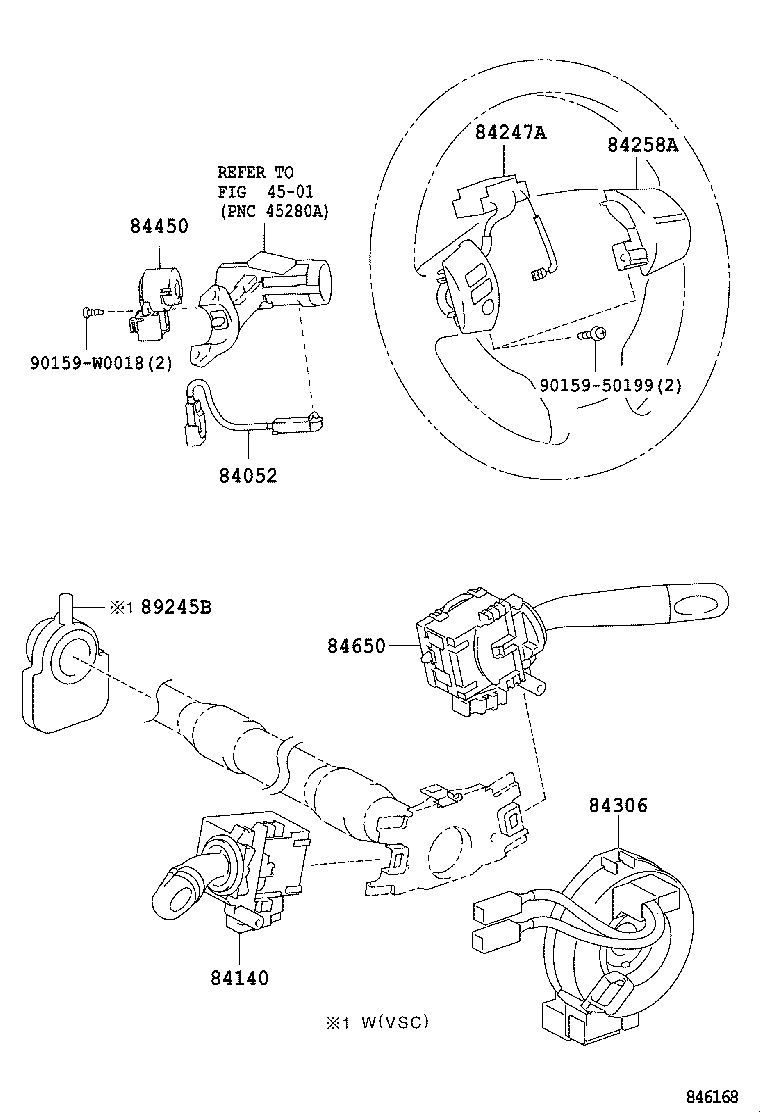

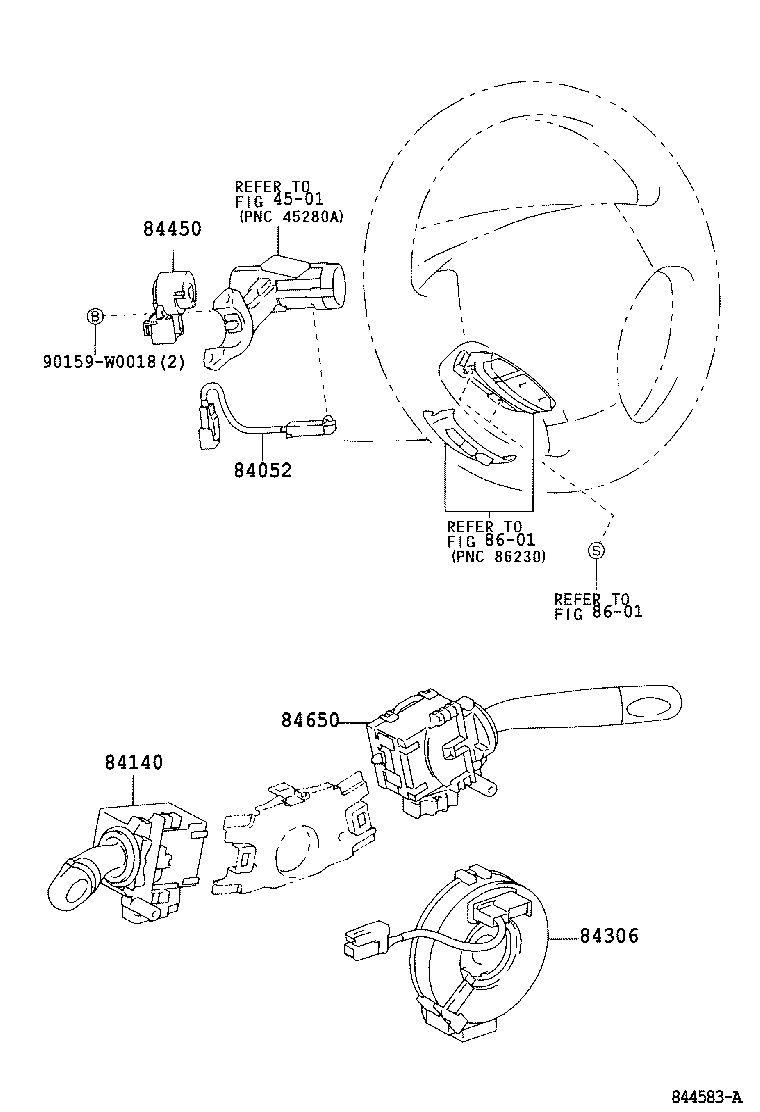

ILLUST NO. 6 OF 7(0201-0406)UKP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84052-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02180 |
CDE120,ZZE12#..UKP |
1 | ||
| 84140-02190 |
CDE120,NDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84140-02180 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140-02190 |
CDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02140 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84306-0D012 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02061 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02070 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84306-0D050 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84450-0D010 |
CDE120,ZZE12#..UKP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02290 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 84652-02290 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA |
1 | ||
| Common parts | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8601 | ||||

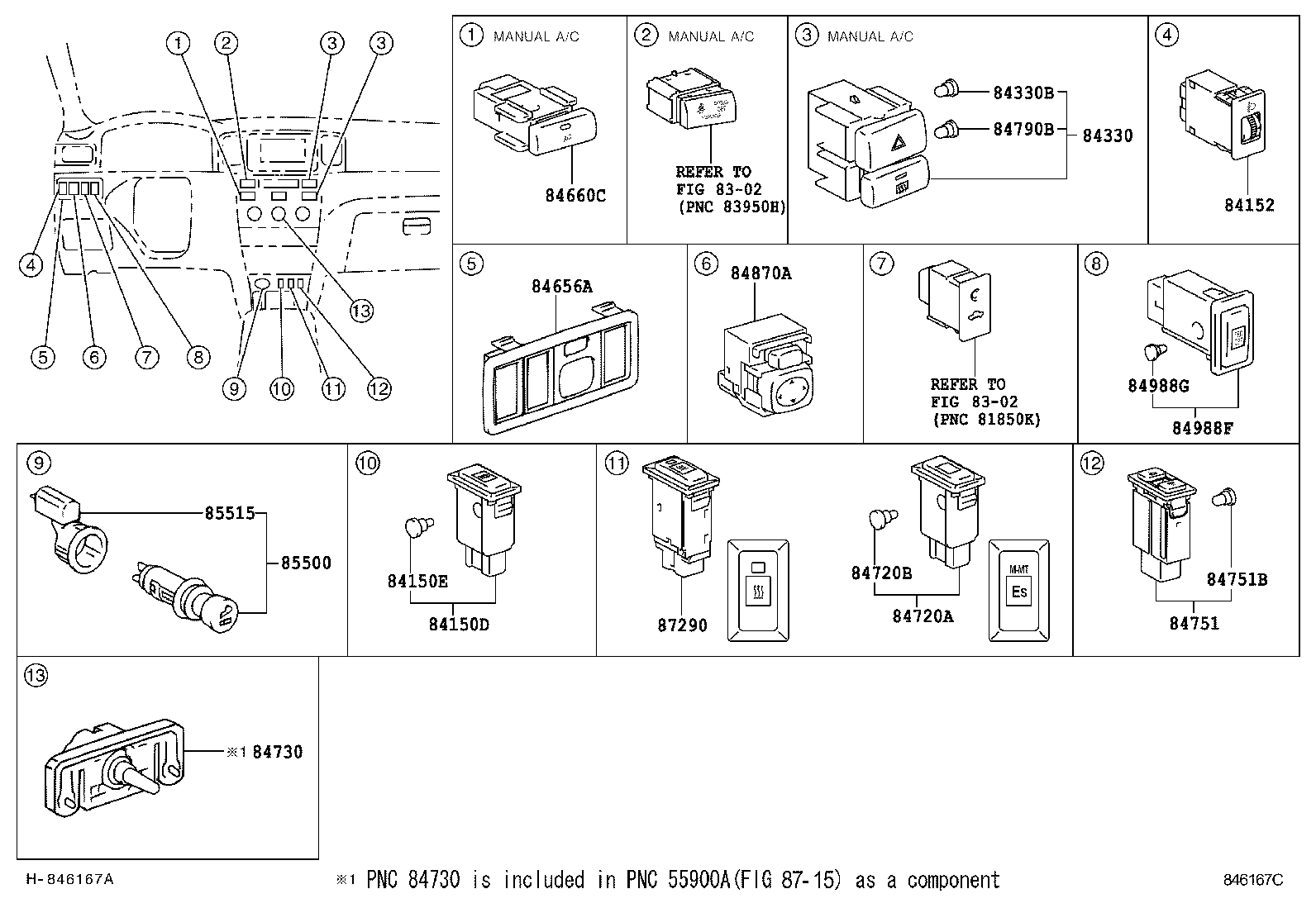

ILLUST NO. 5 OF 7(0201-0406)UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150-02021 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 84150-02021 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-11014 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02021 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02021 |
CDE120,ZZE12#..UKP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02090 |
CDE120,ZZE12#..UKP COLD SPEC |
1 | ||
| 84332-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 84332-02081 |
CDE120,ZZE12#..UKP |
1 | ||
| 84332-02091 |
CDE120,ZZE12#..UKP COLD SPEC |
1 | ||
| 84332-02092 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TRW |
1 | ||
| 84332-02091 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC |
1 | ||
| 84332-12490 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TOKAI RIKA |
1 | ||
| 84332-02081 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-11023 |
CDE120,ZZE12#..UKP 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,ZZE12#..UKP 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02090B0 |
CDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84656-02090B0 |
CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84660-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84732-02040 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84732-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84751-0F010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-11045 |
CDE120,ZZE12#..UKP 14V 0.56W |
1 | ||
| 90011-11045 |
CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE12#..UKP 14V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 84872-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-02030 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84930-02031 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11046 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84999-10310 |
CDE120,ZZE12#..UKP..WG..TERRA 14V 0.91W,W(DOOR LOCK CONTROL = BACK DOOR ONLY) |
1 | ||
| 90011-11017 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11046 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84999-10310 |
CDE120,ZZE12#..UKP..WG..TERRA 14V 0.91W,W(DOOR LOCK CONTROL = BACK DOOR ONLY) |
1 | ||
| 90011-11017 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-13040 |
CDE120,ZZE12#..UKP..WG..TERRA |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85500-09040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05011 |
CDE120,ZZE12#..UKP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||

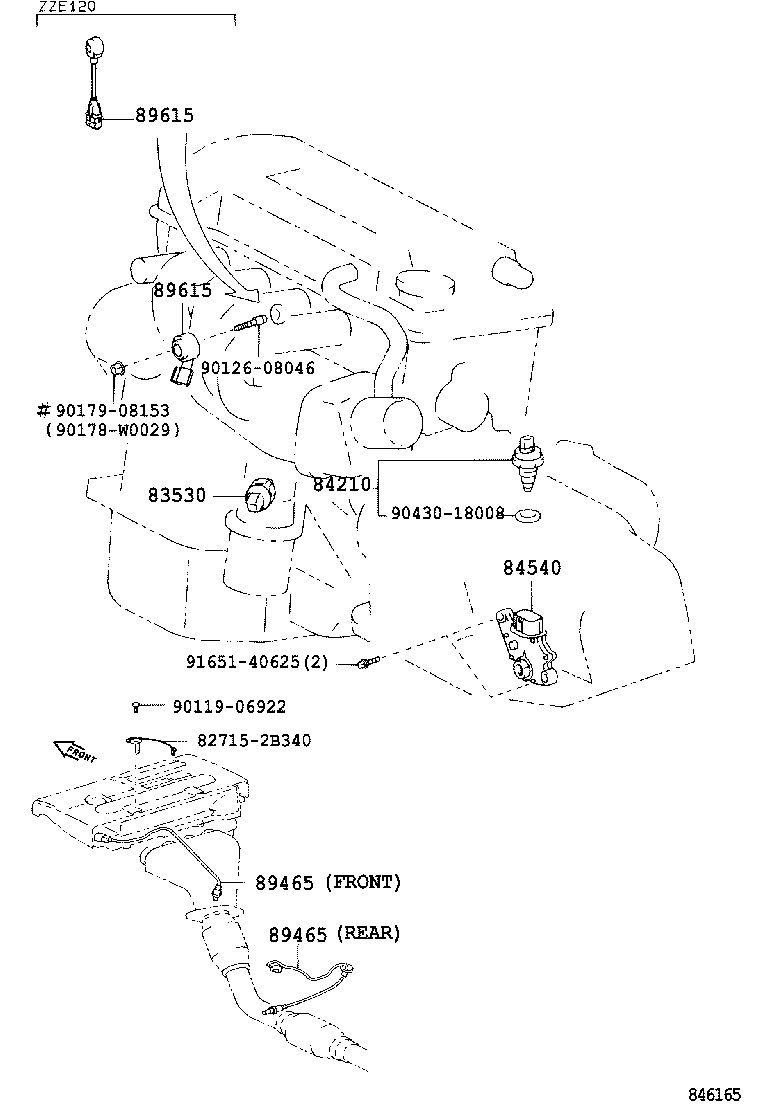

ILLUST NO. 1 OF 7(0406- )ZZE12#..UKP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-28020 |
ZZE12#..UKP DENSO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-05010 |
ZZE12#..UKP VALEO |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 83530-60020 |
ZZE12#..UKP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CDE120,NDE120,ZZE12#..UKP..MTM |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..UKP..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02140 |
ZZE120..UKP FRONT |
1 | ||
| 89465-02070 |
ZZE120..UKP REAR |
1 | ||
| 89465-02180 |
ZZE120..UKP REAR |
1 | ||
| 89465-02060 |
ZZE120..UKP FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| 89615-02010 |
ZZE120..UKP |
1 | ||
| Common parts | ||||
| 82715-2B340 | ||||
| 90119-06922 | ||||
| 90126-08046 | ||||
| 90178-W0029 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 5 OF 7(0406- )UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150-02021 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 84150-02021 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-11014 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 90011-11042 |
CDE120,NDE120,ZZE12#..UKP..LHD..(4FC,5F) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02021 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84152-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84152-02021 |
CDE120,ZZE12#..UKP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02090 |
CDE120,ZZE12#..UKP COLD SPEC |
1 | ||
| 84332-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 84332-02081 |
CDE120,ZZE12#..UKP |
1 | ||
| 84332-02091 |
CDE120,ZZE12#..UKP COLD SPEC |
1 | ||
| 84332-02092 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TRW |
1 | ||
| 84332-02091 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC |
1 | ||
| 84332-12490 |
CDE120,NDE120,ZZE12#..UKP..TERRA COLD SPEC,TOKAI RIKA |
1 | ||
| 84332-02081 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-11023 |
CDE120,ZZE12#..UKP 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.84W |
1 | ||
| 90011-11044 |
CDE120,ZZE12#..UKP 14V 0.84W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02090B0 |
CDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84656-02090B0 |
CDE120,NDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
1 | ||
| 84656-02110B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84660-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84732-02040 |
CDE120,NDE120,ZZE12#..UKP..TERRA |
1 | ||
| 84732-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 84751-0F010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90011-01002 |
CDE120,NDE120,ZZE12#..UKP..LHD 14V 0.91W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-11045 |
CDE120,ZZE12#..UKP 14V 0.56W |
1 | ||
| 90011-11045 |
CDE120,NDE120,ZZE12#..UKP..TERRA 14V 0.56W |
1 | ||
| 90011-11024 |
CDE120,ZZE12#..UKP 14V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 84872-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
CDE120,NDE120,ZZE12#..UKP..LHD 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85500-09040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 85500-09010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05010 |
CDE120,ZZE12#..UKP |
1 | ||
| 85515-05011 |
CDE120,ZZE12#..UKP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||
ILLUST NO. 6 OF 7(0406- )UKP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
CDE120,ZZE12#..UKP |
1 | ||
| 84052-05020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02180 |
CDE120,ZZE12#..UKP |
1 | ||
| 84140-02190 |
CDE120,NDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84140-02180 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84140-02190 |
CDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12010B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-68020B2 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02140 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84306-0D012 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02061 |
CDE120,ZZE12#..UKP |
1 | ||
| 84306-02070 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84306-0D050 |
CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 84450-0D010 |
CDE120,ZZE12#..UKP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02290 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 84652-02290 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
