ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

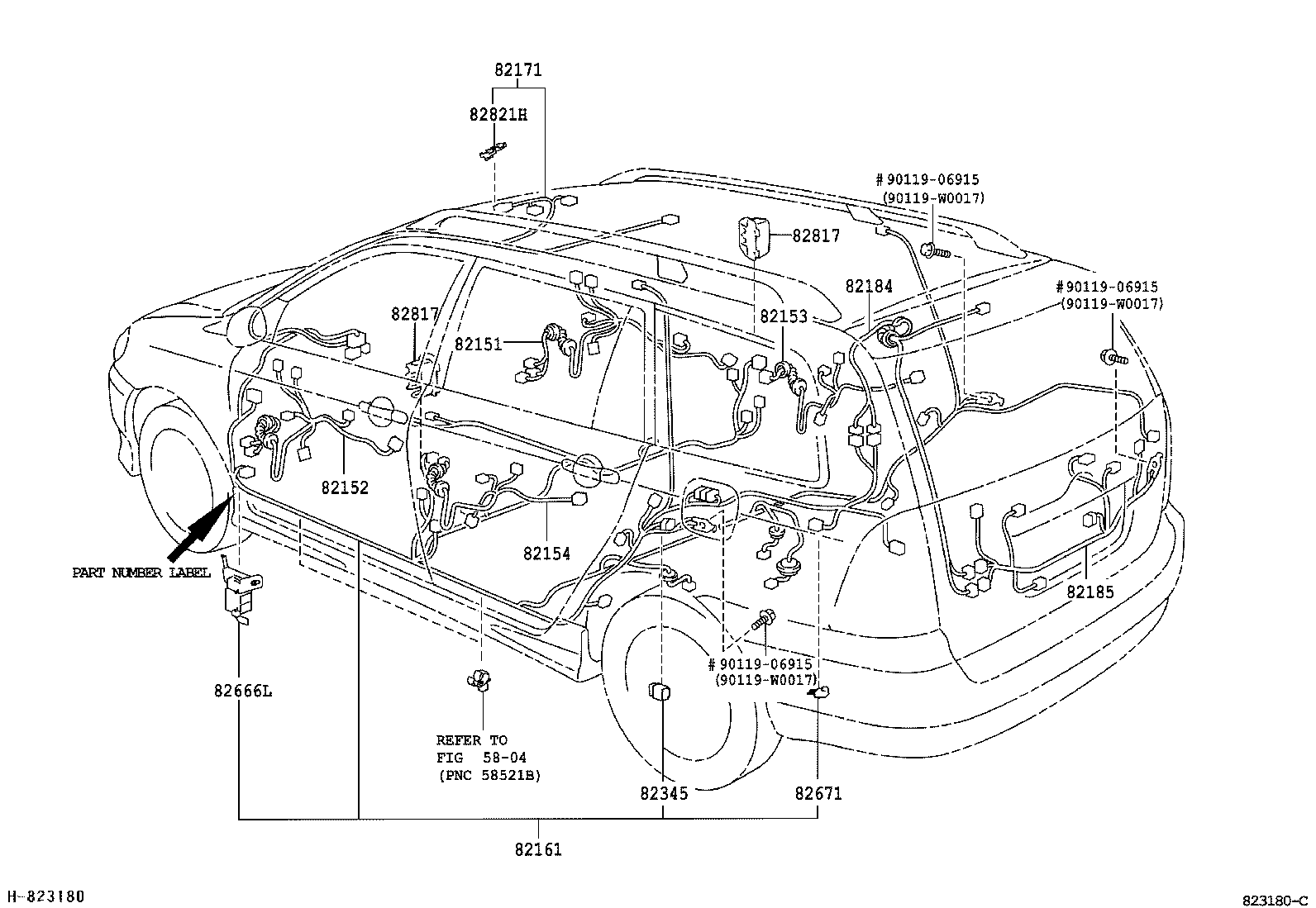

ILLUST NO. 4 OF 7(0208- )UKP..WG
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-02080 |
CDE120,ZZE12#..UKP..LHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82197-02090 |
CDE120,ZZE12#..UKP..LHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82197-02070 |
CDE120,ZZE12#..UKP..LHD..TERRA |
1 | ||
| 82197-02100 |
CDE120,NDE120,ZZE12#..UKP..LHD W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82197-02090 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02850 |
CDE120,ZZE12#..UKP..LHD..TERRA |
1 | ||
| 82152-02870 |
CDE120,ZZE12#..UKP..LHD..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82152-02870 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 82152-02860 |
CDE120,ZZE12#..UKP..LHD..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82152-02880 |
CDE120,NDE120,ZZE12#..UKP..LHD W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02230 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02231 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02240 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82153-02241 |
CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82153-02261 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82153-02241 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-02230 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82153-02231 |
CDE120,ZZE12#..UKP..TERRA |
1 | ||
| 82154-02231 |
CDE120,NDE120,ZZE12#..UKP W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82154-02211 |
CDE120,NDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY) |
1 | ||
| 82154-02210 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82154-02211 |
CDE120,ZZE12#..UKP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82199-02170 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02170 |
1 | ||
| 82199-02160 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02160 |
1 | ||
| 82161-0Z290 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82161-0Z290 |
1 | ||
| 82199-02171 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02171 |
1 | ||
| 82199-02161 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02161 |
1 | ||
| 82161-0Z292 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82161-0Z292 |
1 | ||
| 82199-02172 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02172 |
1 | ||
| 82199-02173 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02173 |
1 | ||
| 82199-02162 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02162 |
1 | ||
| 82161-0Z291 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82161-0Z291 |
1 | ||
| 82199-02163 |
CDE120,ZZE12#..UKP..LHD..WG PART NUMBER LABEL=82199-02163 |
1 | ||
| 82161-02G10 |
CDE120,NDE120,ZZE12#..UKP..LHD..WG..(4FC,5F) PART NUMBER LABEL=82161-02G10 |
1 | ||
| 82161-02G40 |
CDE120,NDE120,ZZE12#..UKP..LHD..WG..(4FC,5F) PART NUMBER LABEL=82161-02G40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02760 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA |
1 | ||
| 82171-02770 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA W(KEY LESS ENTRY) |
1 | ||
| 82171-02410 |
CDE120,ZZE12#..UKP..LHD W(KEY LESS ENTRY) |
1 | ||
| 82171-02400 |
CDE120..UKP..LHD..SED;ZZE12#..UKP..LHD..TERRA;ZZE121..UKP..LHD..SED..SOL;CDE120..UKP..LHD..WG..TERRA |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02100 |
CDE120,ZZE12#..UKP..LHD..WG |
1 | ||
| 82184-02100 |
CDE120,NDE120,ZZE12#..UKP..LHD..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02090 |
CDE120,ZZE12#..UKP..LHD..WG |
1 | ||
| 82185-02090 |
CDE120,NDE120,ZZE12#..UKP..LHD..WG |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 82345-12050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 82666-02120 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 82671-30370 |
CDE120,NDE120,ZZE12#..UKP..LHD..WG |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02140 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02140 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 82817-02250 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 82817-02250 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-W0017 | ||||
