ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

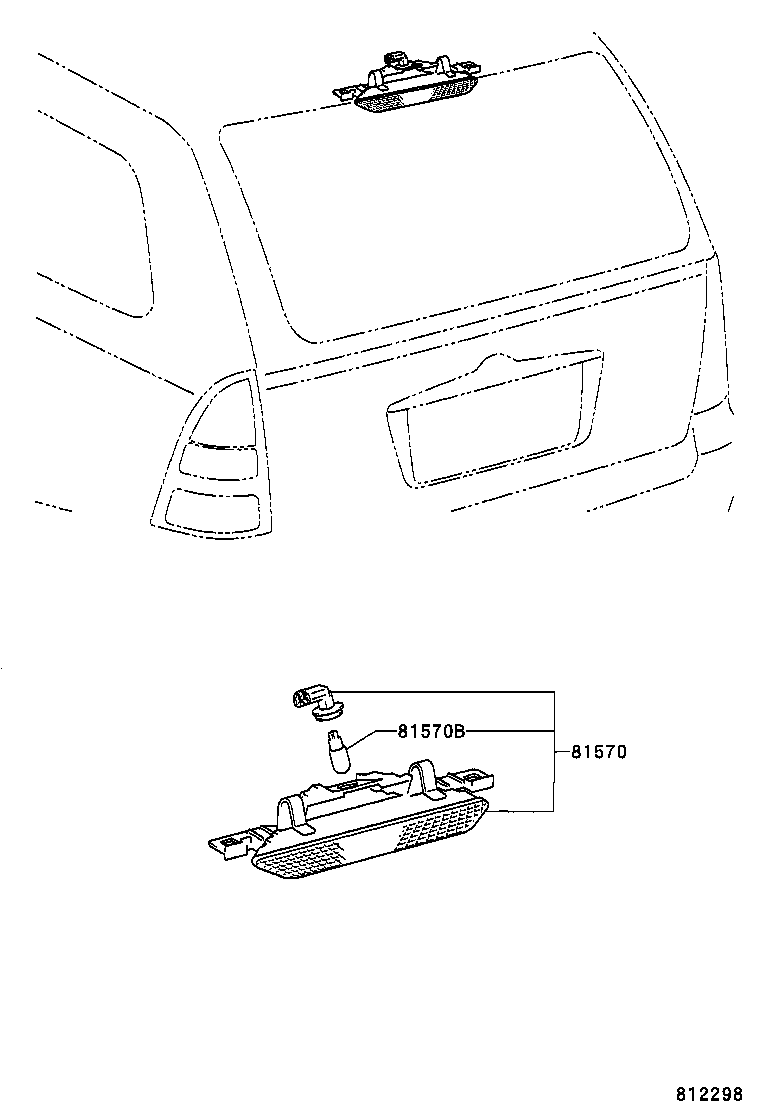

Click highlighted areas on diagram

diagram 81570 81570B
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-13160

CDE120,ZZE12#..UKP..WG

 1
81570-13160

CDE120,NDE120,ZZE12#..UKP..WG

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

CDE120,NDE120,ZZE12#..UKP..WG

12V 16W

 1
90981-11059

CDE120,ZZE12#..UKP..WG

12V 16W

 1
